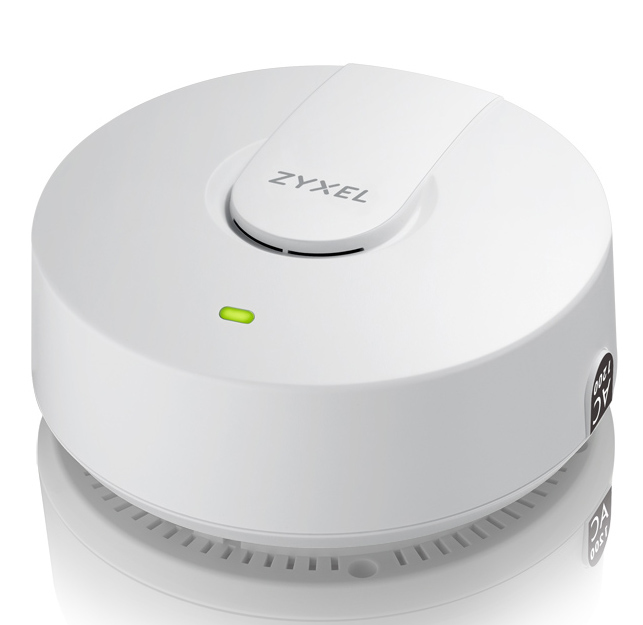

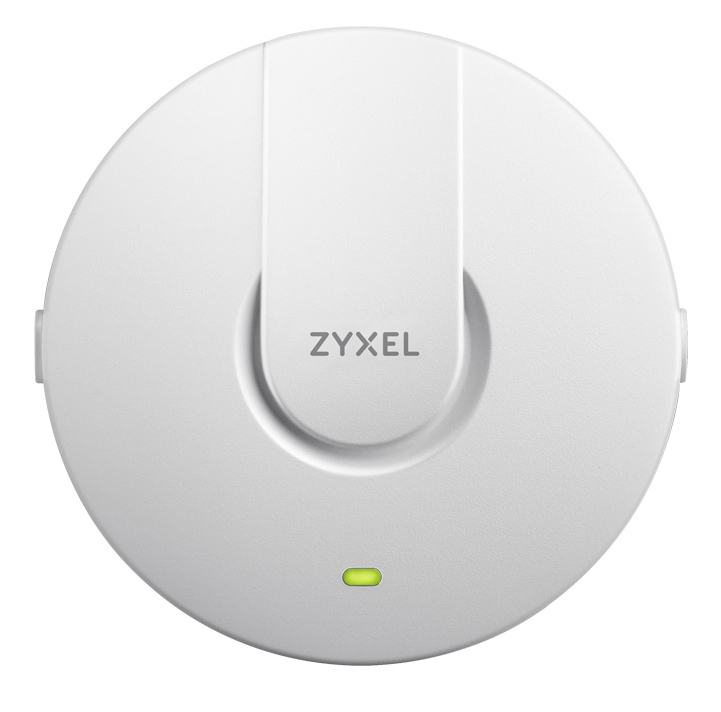

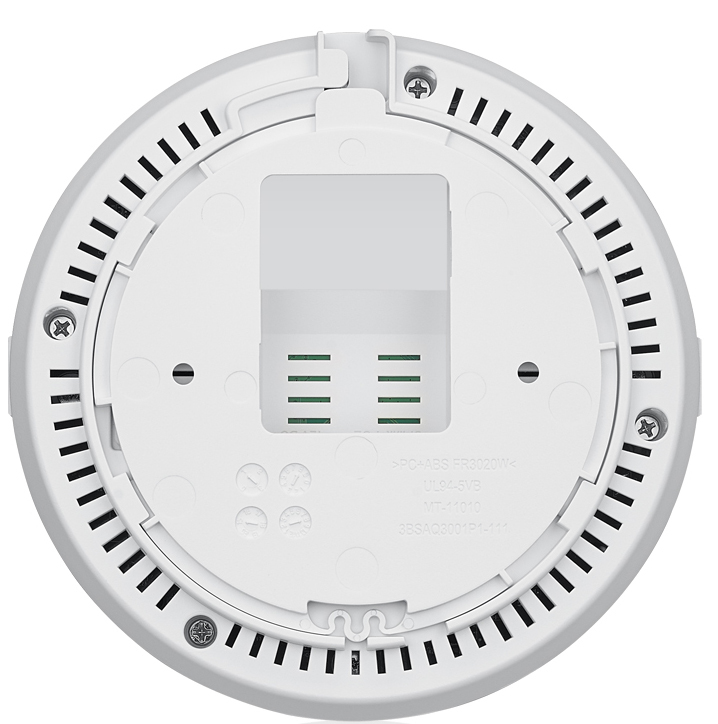

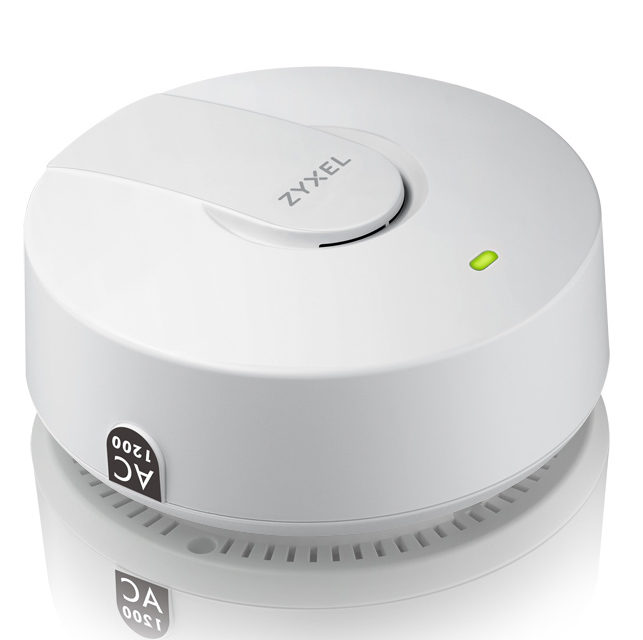

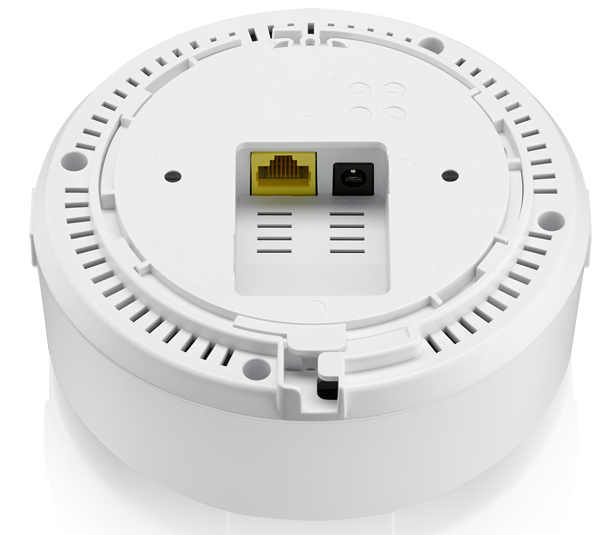

Zyxel NWA5123-AC 1200 Mbit/s White Power over Ethernet (PoE)
Model NWA5123-ACPart no. NWA5123-AC-EU0101FEAN 4718937589722
37 specifications
- Speed1200 Mbit/s
- Weight300 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWEP, WPA, WPA2-PSK
- Ethernet LAN (RJ-45) ports1
Overview
- Speed
- 1200 Mbit/s
- Weight
- 300 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WEP, WPA, WPA2-PSK
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Zyxel
- Category
- Wireless Access Point
- Model
- NWA5123-AC
- Part numbers
- NWA5123-AC-EU0101F, 4778
- EAN / UPC
- 4718937589722, 4718937589739, 8944732599284
- Also known as
- Zyxel NWA5123-AC 1200 Mbit/s White Power over Ethernet (PoE)
Specifications
37 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1200 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ac |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DPSK, DQPSK, DSSS, OFDM, QPSK |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WEP, WPA, WPA2-PSK |
| MAC address filtering | Yes |
| Number of SSID supported | 16 |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 9 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| LED indicators | Yes |
| Internal | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna gain level (max) | 4 dBi |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 130 mm |
| Depth | 130 mm |
| Height | 54.7 mm |
| Weight | 300 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 278 mm |
| Package depth | 209 mm |
| Package height | 72 mm |
| Package weight | 700 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
