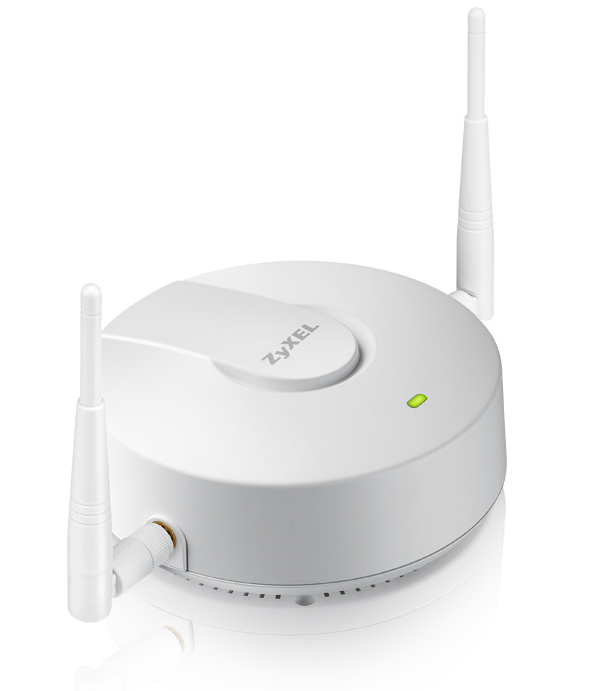

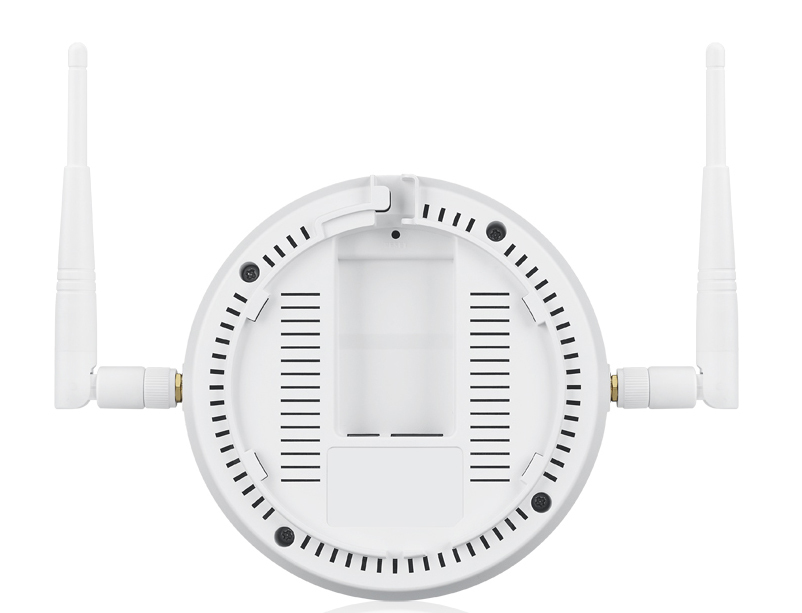

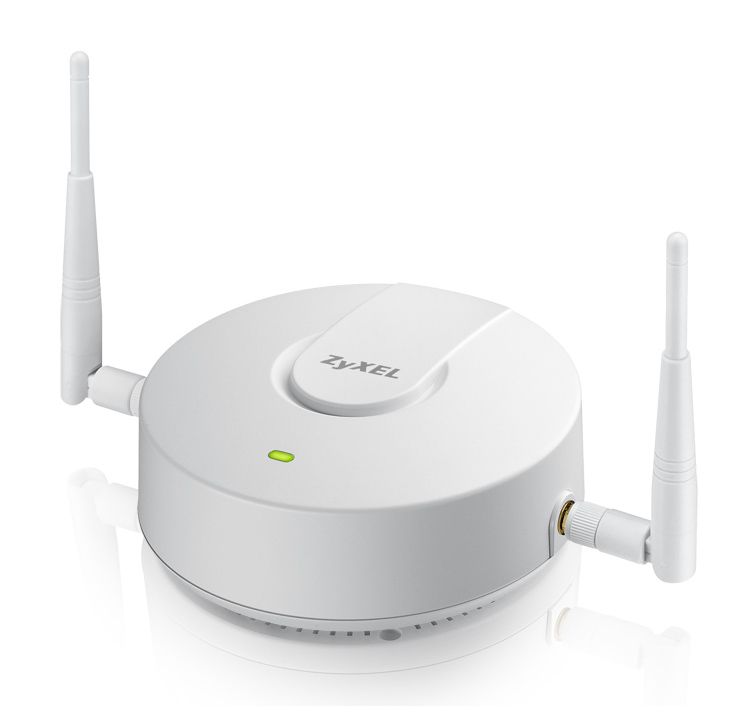

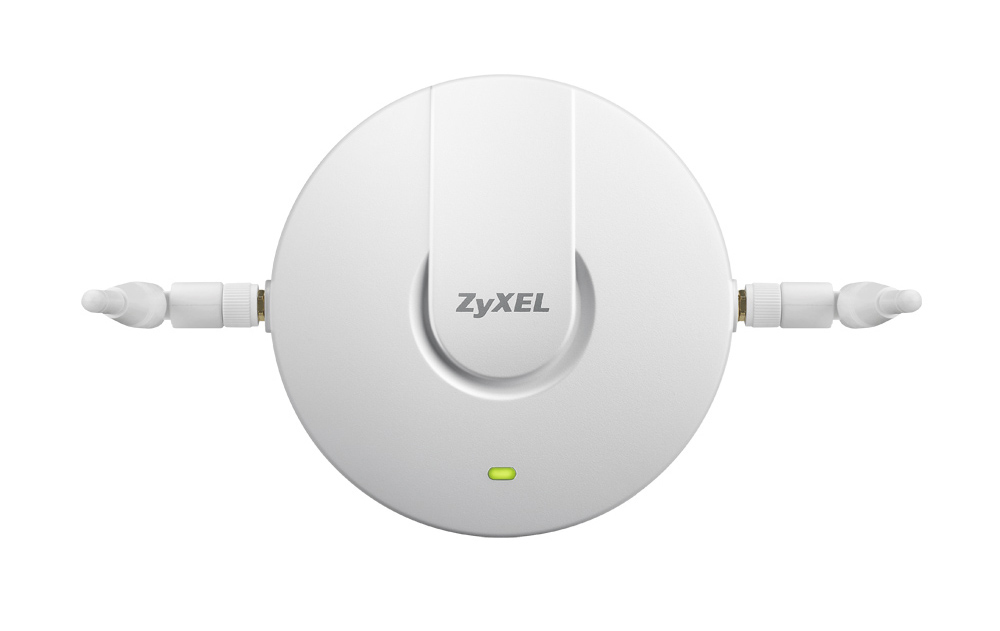

Zyxel NWA5121-N 300 Mbit/s Power over Ethernet (PoE)
Model NWA5121-NPart no. 93182791EAN 7612245646450
29 specifications
- Speed300 Mbit/s
- Weight610 g
- Security algorithmsWEP, WPA, WPA2, WPA2-PSK
- DHCP clientYes
- Ethernet LAN (RJ-45) ports1
- InternalNo
Overview
- Speed
- 300 Mbit/s
- Weight
- 610 g
- Security algorithms
- WEP, WPA, WPA2, WPA2-PSK
- DHCP client
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Internal
- No
- Brand
- Zyxel
- Category
- Wireless Access Point
- Model
- NWA5121-N
- Part numbers
- 93182791, NWA5121-N-EU0101F, 4645
- EAN / UPC
- 7612245646450, 4054842267035, 4718937572892, 5054484254034 +1 more
- Also known as
- Zyxel NWA5121-N 300 Mbit/s Power over Ethernet (PoE)
Specifications
29 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| Maximum data transfer rate | 300 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.412 - 2.472 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1ag, IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WEP, WPA, WPA2, WPA2-PSK |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
Management features
| Specification | Value |
|---|---|
| Command-line interface (CLI) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 12 V |
| Input current | 1 A |
Design
| Specification | Value |
|---|---|
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna features | Detachable antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 3 dBi |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 130 mm |
| Depth | 130 mm |
| Height | 54.5 mm |
| Weight | 610 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 282 mm |
| Package depth | 207 mm |
| Package height | 71 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
