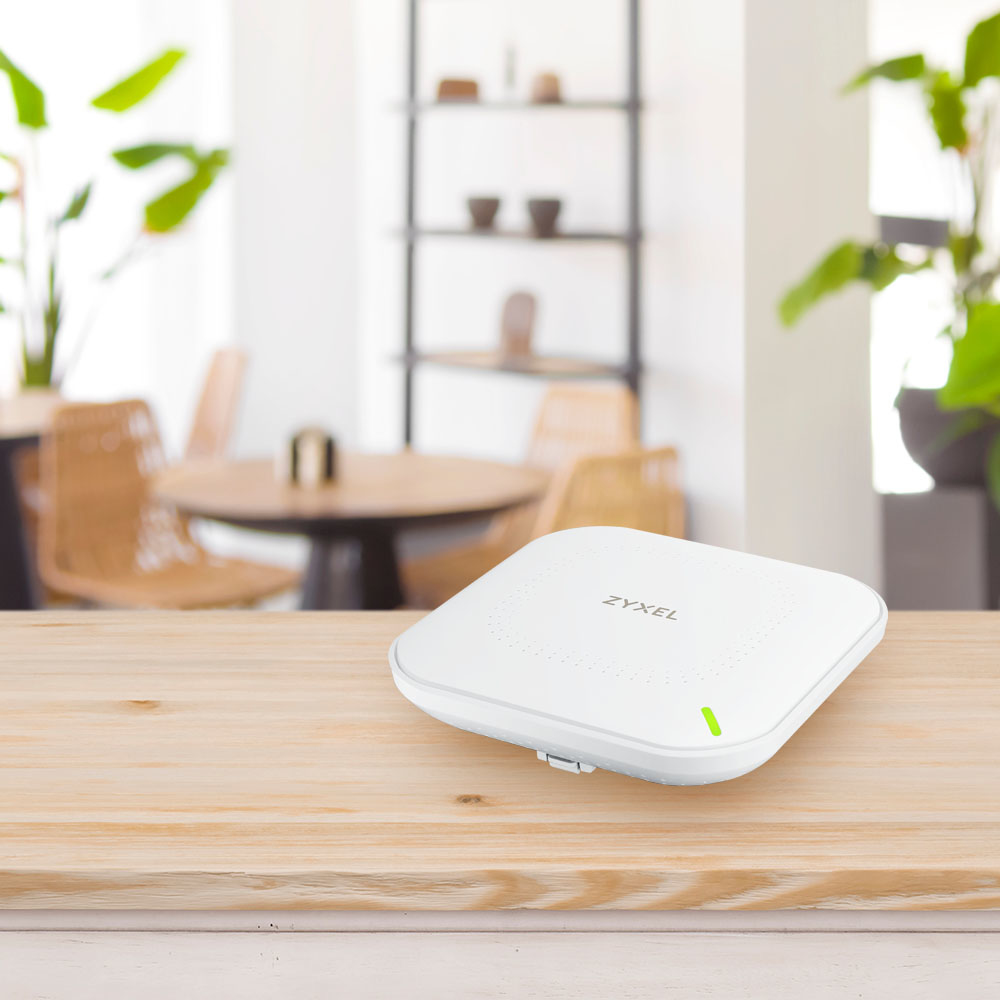

NWA50AX 1775 Mbit/s White Power over Ethernet (PoE)
Model NWA50AXPart no. NWA50AX-EU0102FEAN 4718937618767
45 specifications
- Speed1775 Mbit/s
- Weight290 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA, WPA2, WPA3
- Ethernet LAN (RJ-45) ports1
Overview
- Speed
- 1775 Mbit/s
- Weight
- 290 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA, WPA2, WPA3
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Zyxel
- Category
- Wireless Access Point
- Model
- NWA50AX
- Part numbers
- NWA50AX-EU0102F, 140200, NWA50AX-EU0103F, 140202
- EAN / UPC
- 4718937618767, 4718937618743
- Also known as
- Zyxel NWA50AX 1775 Mbit/s White Power over Ethernet (PoE)
Specifications
45 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1775 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Fast roaming | Yes |
| VLAN support | Yes |
| Band steering | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Input current | 0.3 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna gain level (max) | 4 dBi |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 140 mm |
| Height | 37.5 mm |
| Weight | 290 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Mounting kit | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Country of origin | China |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 483 mm |
| Master (outer) case height | 332 mm |
| Master (outer) case gross weight | 13 kg |
| Products per master (outer) case | 20 pc(s) |
