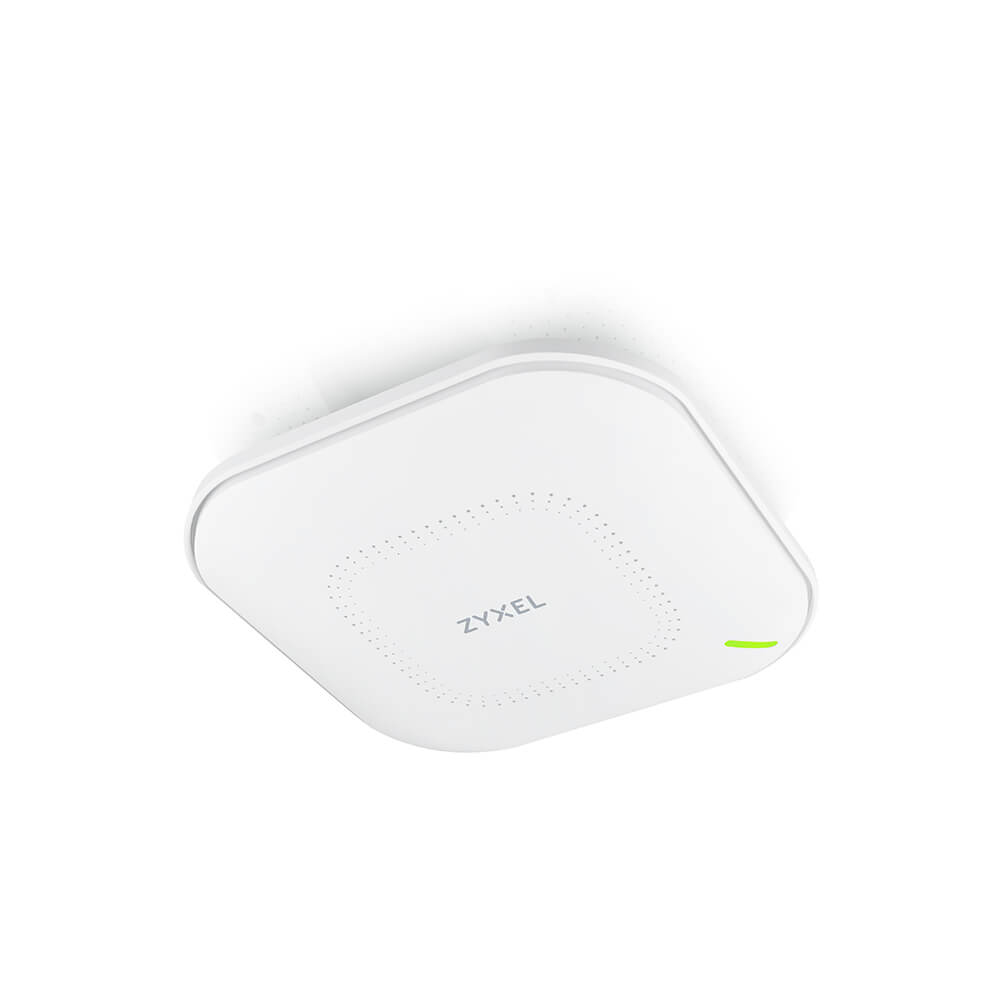

NWA210AX 2975 Mbit/s White Power over Ethernet (PoE)
Model NWA210AXPart no. NWA210AX-EU0103FEAN 4718937634095
44 specifications
- Speed2975 Mbit/s
- Weight545 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports2
- Antenna typeInternal
Overview
- Speed
- 2975 Mbit/s
- Weight
- 545 g
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Antenna type
- Internal
- Brand
- Zyxel
- Category
- Wireless Access Point
- Model
- NWA210AX
- Part numbers
- NWA210AX-EU0103F, NWA210AX-EU0202F, 140241, 140240, NWA210AX-EU0105F, NWA210AX-EU0102F
- EAN / UPC
- 4718937634095, 4718937613038, 4718937613014
- Also known as
- Zyxel NWA210AX 2975 Mbit/s White Power over Ethernet (PoE)
Specifications
44 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 2975 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2400 Mbit/s |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3 |
| MIMO | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Fast roaming | Yes |
| VLAN support | Yes |
| Band steering | Yes |
| Receiver sensitivity | -101 dBm |
Security
| Specification | Value |
|---|---|
| Security algorithms | SNMP, WEP, WPA, WPA2-Enterprise, WPA2-PSK, WPA3 |
| MAC address filtering | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 12 V |
| Input current | 2 A |
| Power consumption (typical) | 19 W |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna gain level (max) | 6 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC 15C, FCC 15E, ETSI EN 300 328, EN 301 893, LP0002 FCC Part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, EN60601-1-2, BSMI CNS13438 EN 60950-1, IEC 60950-1, BSMI CNS14336-1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 180 mm |
| Height | 39 mm |
| Weight | 545 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 329 mm |
| Package depth | 212 mm |
| Package height | 64 mm |
| Package weight | 1.06 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Mounting kit | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
