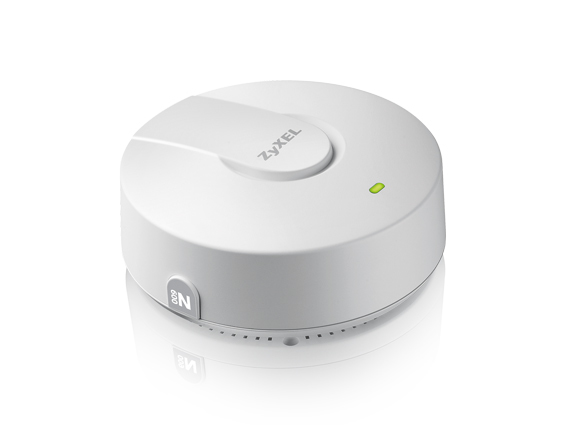

Zyxel NWA1123-NI v2

Zyxel NWA1123-NI v2

Model NWA1123-NI v2Part no. 4773

35 specifications

Speed1000 Mbit/s
Weight250 g
2.4 GHzYes
Security algorithmsWEP, WPA2-PSK
Ethernet LAN (RJ-45) ports1
InternalNo

See all specifications

Overview

Speed: 1000 Mbit/s
Weight: 250 g
2.4 GHz: Yes
Security algorithms: WEP, WPA2-PSK
Ethernet LAN (RJ-45) ports: 1
Internal: No

Brand: Zyxel
Category: Wireless Access Point
Model: NWA1123-NI v2
Part number: 4773
Also known as: Zyxel NWA1123-NI v2 1000 Mbit/s Power over Ethernet (PoE)

Specifications

35 specifications in 11 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1000 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4, 5 GHz
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u
MIMO	Yes
Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DBQSK, DQPSK, QPSK

Security

Specification	Value
Security algorithms	WEP, WPA2-PSK
MAC address filtering	Yes
IP address filtering	Yes

Protocols

Specification	Value
DHCP client	Yes

Management features

Specification	Value
Firmware upgradeable	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1

Power

Specification	Value
Power over Ethernet (PoE)	Yes
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Input current	0.3 A

Design

Specification	Value
Internal	No

Antenna

Specification	Value
Antenna type	Internal
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	6 dBi

Weight & dimensions

Specification	Value
Width	130 mm
Depth	130 mm
Height	54 mm
Weight	250 g

Packaging data

Specification	Value
Package width	282 mm
Package depth	207 mm
Package height	71 mm
Package weight	630 g

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	10 - 90%
