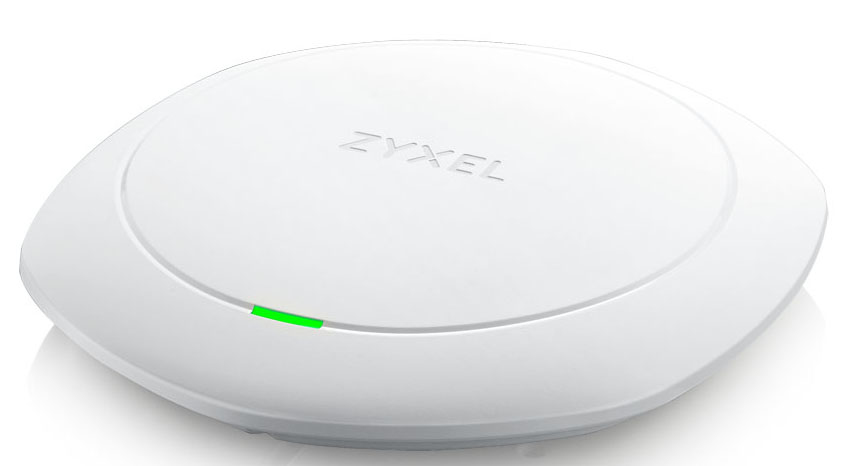

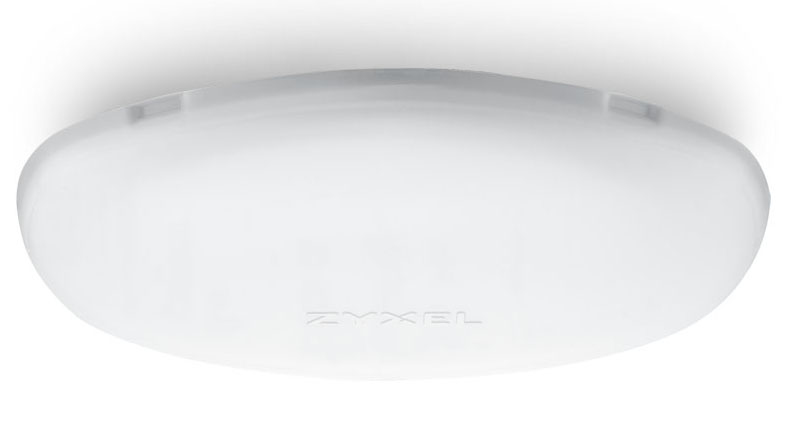

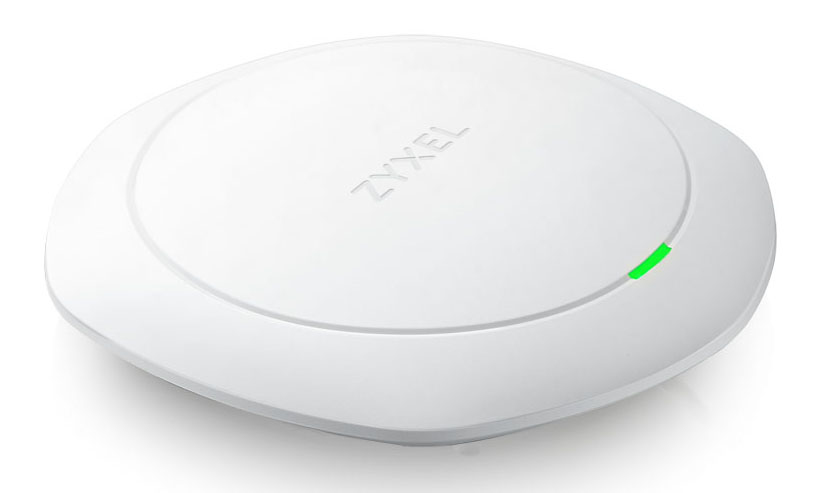

NWA1123-ACHD-EU0103F wireless access point 1300 Mbit/s White Power over Ethernet (PoE)
Model NWA1123-ACHD-EU0103FEAN 4718937604562
41 specifications
- Speed1300 Mbit/s
- Weight750 g
- ColourWhite
- 2.4 GHzYes
- Number of SSID supported16
- Ethernet LAN (RJ-45) ports2
Overview
- Speed
- 1300 Mbit/s
- Weight
- 750 g
- Colour
- White
- 2.4 GHz
- Yes
- Number of SSID supported
- 16
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- Zyxel
- Category
- Wireless Access Point
- Model
- NWA1123-ACHD-EU0103F
- Part number
- NWA1123-ACHD-EU0103F
- EAN / UPC
- 4718937604562
- Also known as
- Zyxel NWA1123-ACHD-EU0103F wireless access point 1300 Mbit/s White Power over Ethernet (PoE)
Specifications
41 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1300 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Throughput data rate | 1600 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| MIMO | Yes |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DBQSK, QPSK |
| VLAN support | Yes |
| Maximal-Ratio Combining (MRC) | Yes |
| Maximum Likelihood Detection (MLD) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 802.1x RADIUS, EAP, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK |
| Number of SSID supported | 16 |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| Management protocols | SNMP v2c/v3 |
Management features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Output voltage | 12 V |
| Output current | 2 A |
| Power consumption (typical) | 15.5 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna gain level (max) | 3 dBi |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 211 mm |
| Depth | 223 mm |
| Height | 39 mm |
| Weight | 750 g |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
