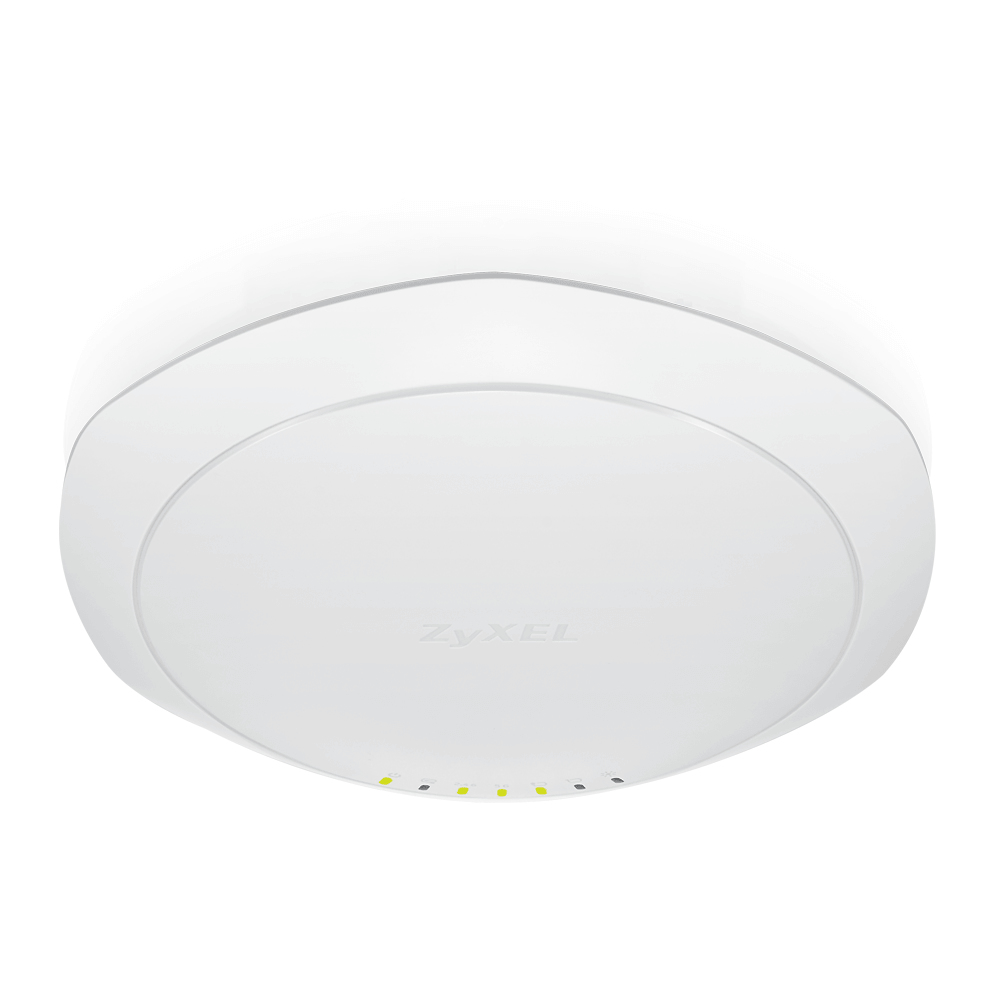

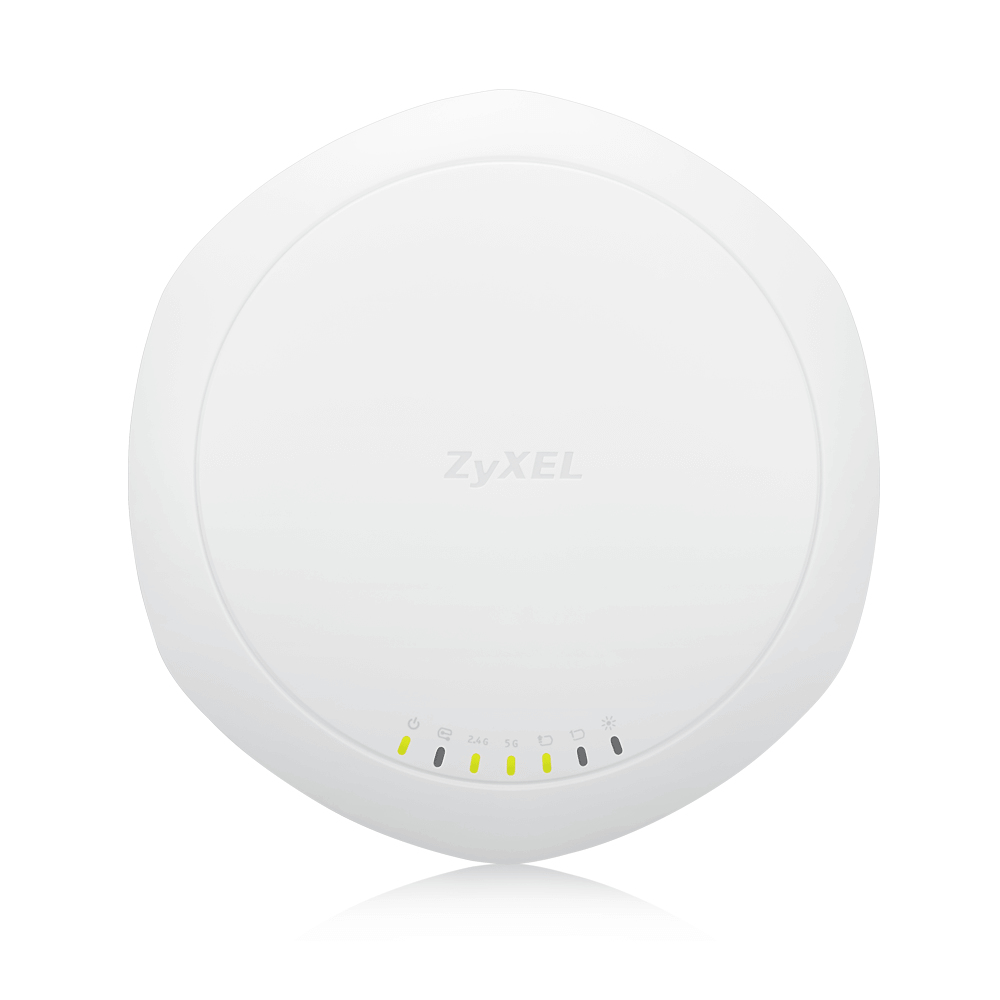

Zyxel NWA1123-AC PRO

Zyxel NWA1123-AC PRO

Model NWA1123-AC PROPart no. 4795EAN 4718937594665

37 specifications
  • Speed1300 Mbit/s
  • Weight445 g
  • ColourWhite
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports2
  • PlacementCeiling, Wall
See all specifications

Overview

Speed
1300 Mbit/s
Weight
445 g
Colour
White
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
2
Placement
Ceiling, Wall
Brand
Zyxel
Model
NWA1123-AC PRO
Part numbers
4795, NWA1123-ACPRO, NWA1123ACPRO-EU0101F, 4794
EAN / UPC
4718937594665, 760559124519, 791583999347
Also known as
Zyxel NWA1123-AC PRO 1300 Mbit/s White Power over Ethernet (PoE)

Specifications

37 specifications in 13 groups

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate1300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3au, IEEE 802.3az, IEEE 802.3u
Channel bandwidth80 MHz
Modulation16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Wi-Fi Multimedia (WMM)/(WME)Yes
VLAN supportYes
Wireless isolationYes
Receiver sensitivity-102 dBm

Security

Security algorithms802.1x RADIUS, EAP-AKA, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, SNMP, SSH, WEP, WPA, WPA2-Enterprise, WPA2-PSK
MAC address filteringYes
Service Set Identifier (SSID) featuresSSID broadcast on/off
Number of SSID supported16

Protocols

DHCP clientYes

Ports & interfaces

Ethernet LAN (RJ-45) ports2

Power

Power over Ethernet (PoE)Yes

Design

PlacementCeiling, Wall
Product colourWhite
InternalNo

Antenna

Antenna gain level (max)5 dBi

Certificates

CertificationFCC part 15C, FCC part 15E, ETSI EN 300 328, EN 301 893, LP0002 FCC part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, BSMI CNS13438 EN 60950-1, IEC 60950-1, BSMI CNS14336-1

Weight & dimensions

Width203.9 mm
Depth191.7 mm
Height34.7 mm
Weight445 g

Packaging data

Package width240 mm
Package depth235 mm
Package height100 mm
Package weight1.21 kg

Packaging content

Quantity per pack1 pc(s)

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)10 - 90%

Logistics data

Harmonized System (HS) code85176990
