Zyxel NWA1123 AC HD

Zyxel NWA1123 AC HD

Model NWA1123 AC HDPart no. NWA1123-ACHD-EU0101FEAN 4718937595785

48 specifications
  • Speed1300 Mbit/s
  • Weight750 g
  • ColourWhite
  • 2.4 GHzYes
  • Number of SSID supported16
  • Ethernet LAN (RJ-45) ports2
See all specifications

Overview

Speed
1300 Mbit/s
Weight
750 g
Colour
White
2.4 GHz
Yes
Number of SSID supported
16
Ethernet LAN (RJ-45) ports
2
Brand
Zyxel
Model
NWA1123 AC HD
Part number
NWA1123-ACHD-EU0101F
EAN / UPC
4718937595785
Also known as
Zyxel NWA1123 AC HD 1300 Mbit/s White Power over Ethernet (PoE)

Specifications

48 specifications in 13 groups

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate1300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Throughput data rate1600 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
MIMOYes
Modulation16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DBQSK, QPSK
VLAN supportYes
Maximal-Ratio Combining (MRC)Yes
Maximum Likelihood Detection (MLD)Yes
Cyclic Shift Diversity (CSD)Yes
Quality of Service (QoS) supportYes
Receiver sensitivity-103 dBm

Security

Security algorithms802.1x RADIUS, EAP, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
Number of SSID supported16

Protocols

DHCP clientYes
Management protocolsSNMP v2c/v3

Management features

Firmware upgradeableYes

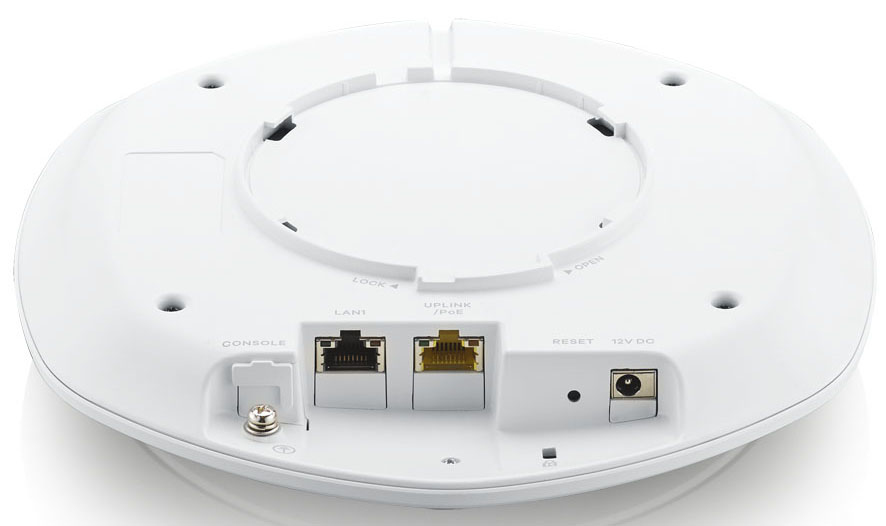

Ports & interfaces

Ethernet LAN (RJ-45) ports2
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Output voltage12 V
Output current2 A
Power consumption (typical)15.5 W

Design

PlacementCeiling, Wall
Product colourWhite
Cable lock slotYes
Cable lock slot typeKensington
InternalNo

Antenna

Antenna gain level (max)3 dBi

Weight & dimensions

Width211 mm
Depth223 mm
Height39 mm
Weight750 g

Packaging data

Package width266 mm
Package depth268 mm
Package height56 mm
Package weight1.09 kg

Packaging content

AC adapter includedYes
Mounting kitYes

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-20 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)10 - 90%

Logistics data

Harmonized System (HS) code85176990
