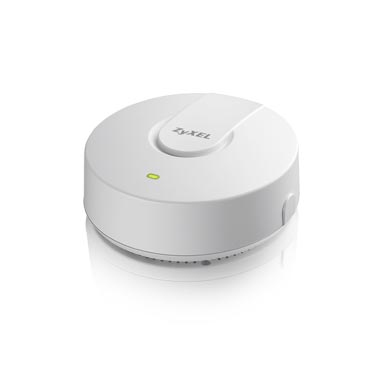

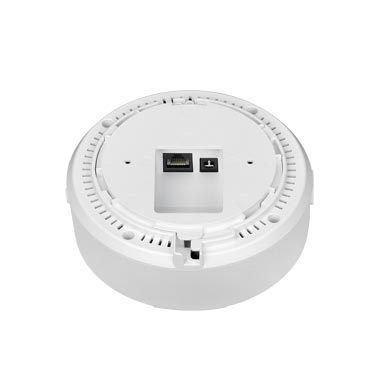

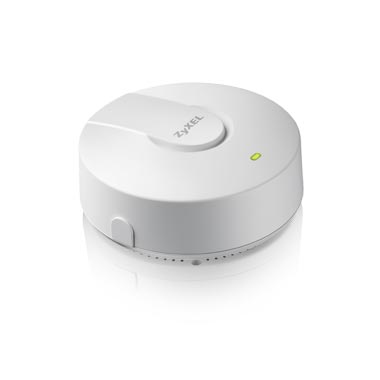

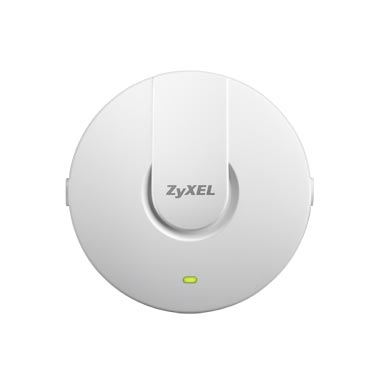

Zyxel NWA1121-NI 300 Mbit/s Power over Ethernet (PoE)

Zyxel NWA1121-NI 300 Mbit/s Power over Ethernet (PoE)

Model NWA1121-NIPart no. NWA1121-NI-EU0102FEAN 5712505294468

34 specifications
  • Speed300 Mbit/s
  • Weight230 g
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports1
  • Antenna gain level (max)3 dBi
  • Dimensions (WxDxH)130 x 130 x 54.5 mm
See all specifications

Overview

Speed
300 Mbit/s
Weight
230 g
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
1
Antenna gain level (max)
3 dBi
Dimensions (WxDxH)
130 x 130 x 54.5 mm
Brand
Zyxel
Model
NWA1121-NI
Part numbers
NWA1121-NI-EU0102F, NWA1121-NI-EU0101F, NWA1121-NI
EAN / UPC
5712505294468, 115971260152, 163120827466, 168141649660 +15 more
Also known as
Zyxel NWA1121-NI 300 Mbit/s Power over Ethernet (PoE)

Specifications

34 specifications in 12 groups

Features

2.4 GHzYes
Maximum data transfer rate300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.4 GHz
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u
MIMOYes
Modulation16-QAM, 64-QAM, BPSK, CCK, DQPSK, QPSK
VLAN supportYes
Receiver sensitivity802.11 b/g 1 Mbps: -91 dBm 11 Mbps: -85 dBm 6 Mbps: -86 dBm 54 Mbps: -69 dBm 802.11n/20 MHz MCS0: -86 dBm MCS7: -70 dBm MCS8: -85 dBm MCS15: -68 dBm 802.11n/40 MHz MCS0: -84 dBm MCS7: -66 dBm MCS8: -83 dBm MCS15: -65 dBm

Security

Security algorithms802.1x RADIUS, EAP-TLS, EAP-TTLS, PEAP, WEP, WPA, WPA2, WPA2-PSK
MAC address filteringYes

Protocols

DHCP clientYes
Supported network protocolsIPv6
Management protocolsSNMP, CLI

Ports & interfaces

Ethernet LAN (RJ-45) ports1
WAN connectionEthernet (RJ-45)

Power

Power over Ethernet (PoE)Yes
Power requirements100-240V; 50/60Hz

Antenna

Antenna gain level (max)3 dBi

Certificates

CertificationFCC

Weight & dimensions

Dimensions (WxDxH)130 x 130 x 54.5 mm
Weight230 g

Packaging data

Package weight610 g

Packaging content

AC adapter includedYes

Other features

Supported data transfer rates1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbit/s
Frequency range2412 - 2472 MHz
Networking featuresGigabit Ethernet
Package dimensions (WxDxH)282 x 207 x 71 mm
Safety60950-1:2006+A11:2009+A1:2010+A12:2011; IEC 60950-1:2005
Transmit power range17 - 24 dBmW

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-30 - 70 °C
Storage relative humidity (H-H)10 - 90%
