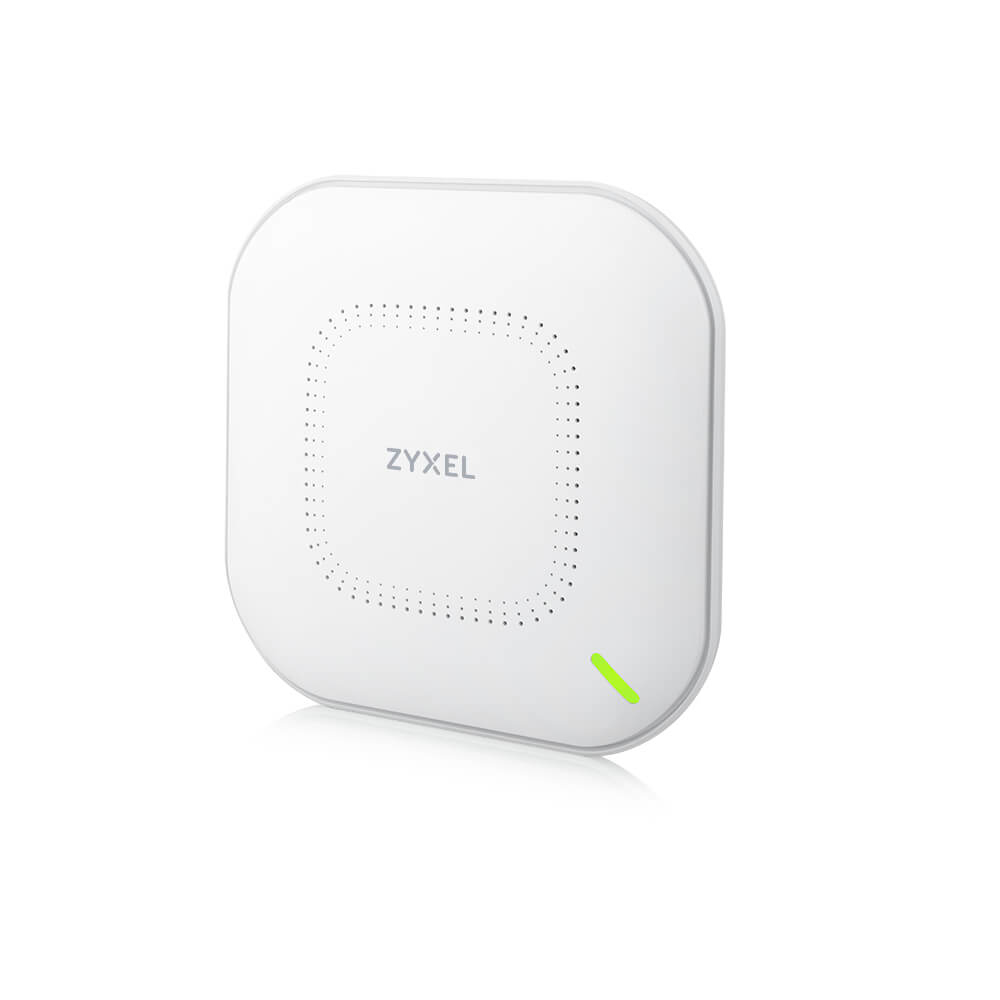

NWA110AX-EU0103F wireless access point 1775 Mbit/s White Power over Ethernet (PoE)
Model NWA110AX-EU0103FEAN 4718937610266
45 specifications
- Speed1775 Mbit/s
- Weight453 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
- PlacementWall
Overview
- Speed
- 1775 Mbit/s
- Weight
- 453 g
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Placement
- Wall
- Brand
- Zyxel
- Category
- Wireless Access Point
- Model
- NWA110AX-EU0103F
- Part number
- NWA110AX-EU0103F
- EAN / UPC
- 4718937610266
- Also known as
- Zyxel NWA110AX-EU0103F wireless access point 1775 Mbit/s White Power over Ethernet (PoE)
Specifications
45 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1775 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Channel bandwidth | 80 MHz |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Fast roaming | Yes |
| VLAN support | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Transmitting power (CE) | 20/22 dBm |
| Transmitting power (FCC) | 23 dBm |
| Receiver sensitivity | -101 dBm |
Security
| Specification | Value |
|---|---|
| Security algorithms | SNMP, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA3 |
| MAC address filtering | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 12 V |
| Input current | 1.5 A |
Design
| Specification | Value |
|---|---|
| Placement | Wall |
| Product colour | White |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna gain level (max) | 6 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC 15C FCC 15E ETSI EN 300 328 EN 301 893 LP0002 FCC 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 EN60601-1-2 BSMI CNS13438 EN 60950-1 IEC 60950-1 BSMI CNS14336-1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 180 mm |
| Height | 39 mm |
| Weight | 453 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 3 pc(s) |
| AC adapter included | Yes |
| Mounting kit | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
