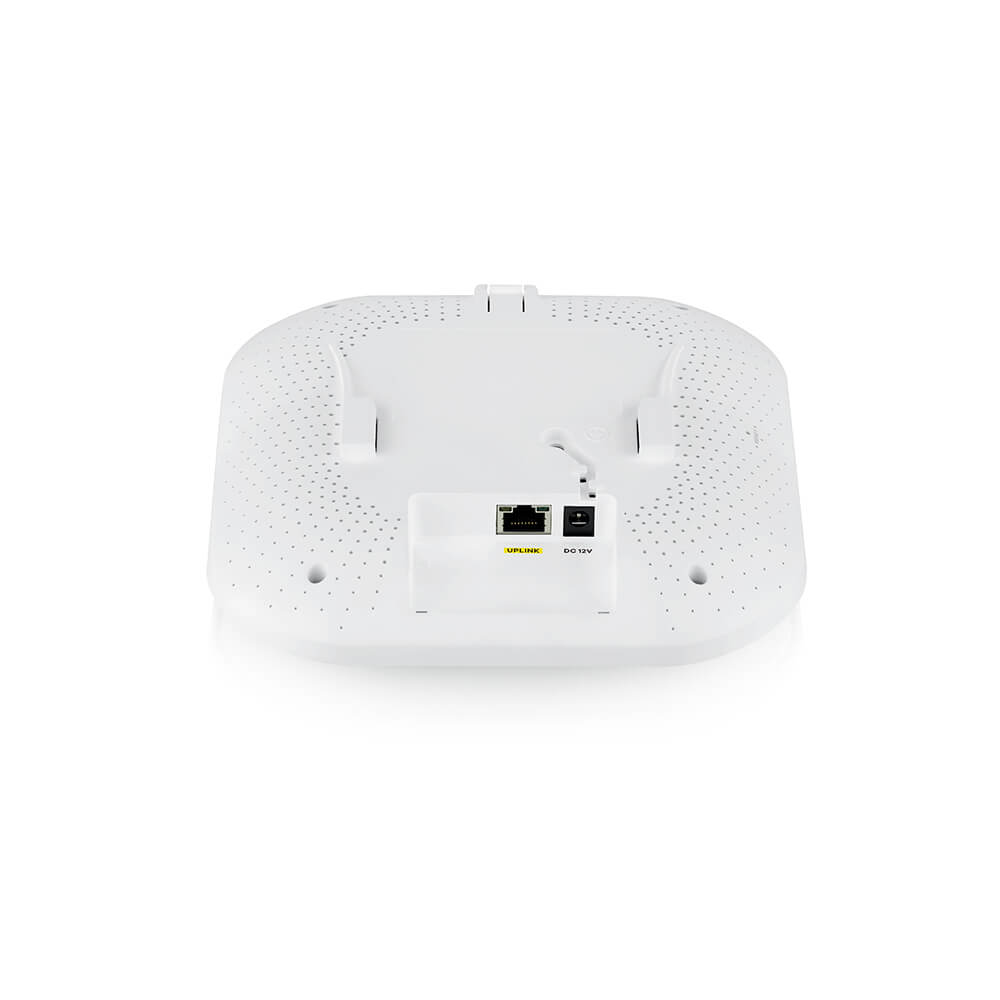

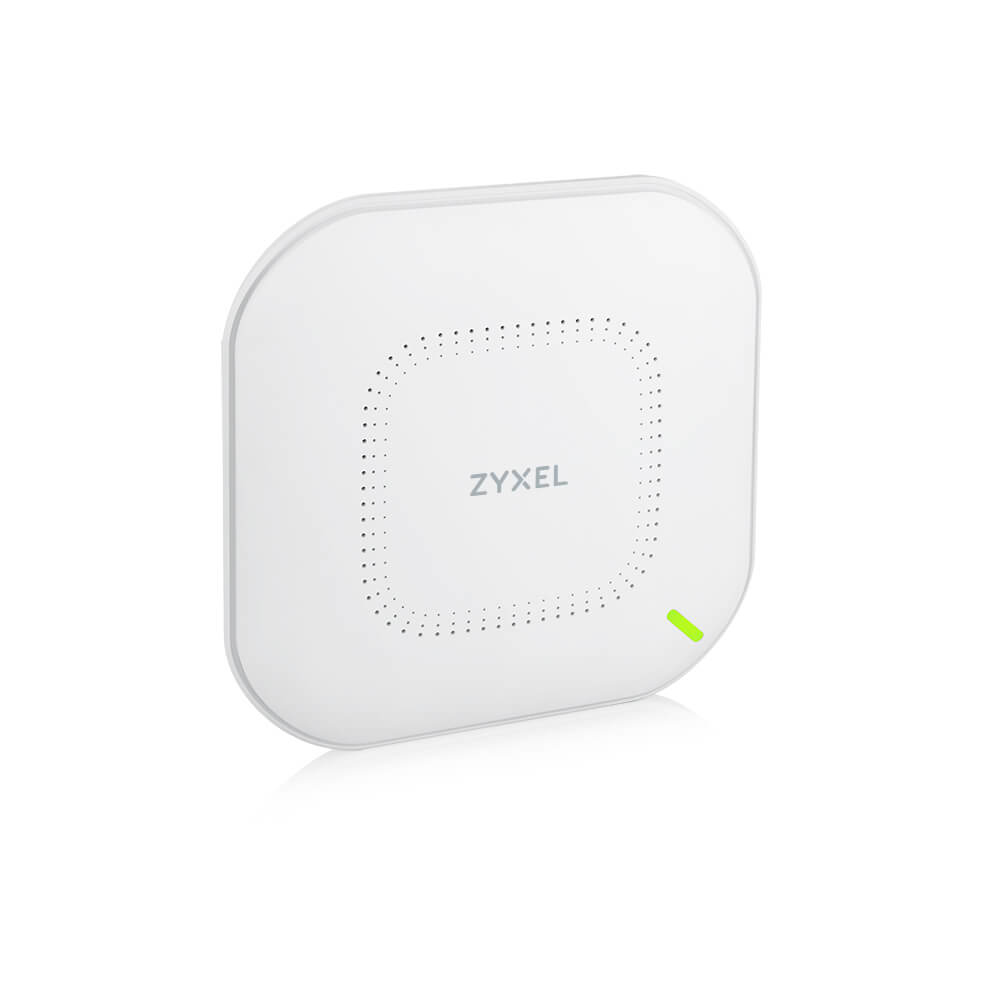

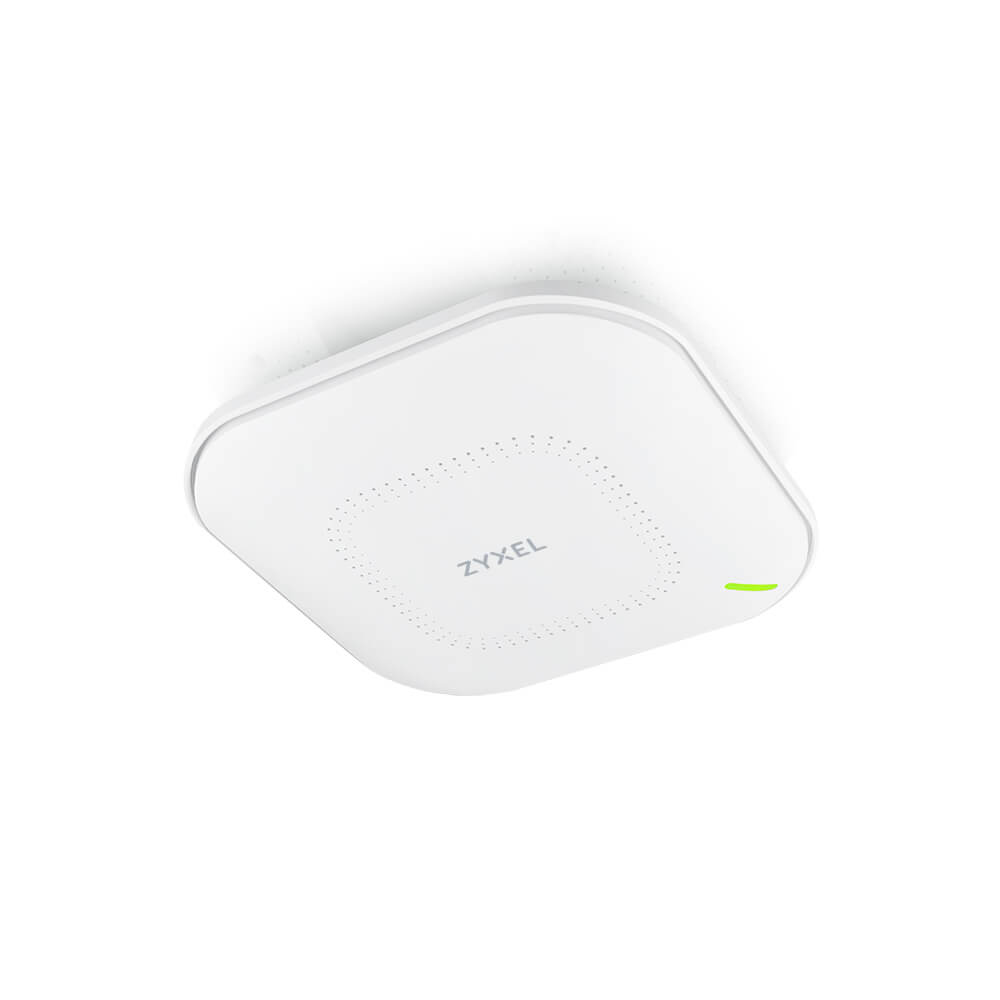

NWA110AX 1000 Mbit/s White Power over Ethernet (PoE)
Model NWA110AXPart no. 5420EAN 760559126957
61 specifications
- Speed1000 Mbit/s
- Weight453 g
- ColourWhite
- 2.4 GHzYes
- Routing protocolsIP
- Ethernet LAN (RJ-45) ports1
Overview
- Speed
- 1000 Mbit/s
- Weight
- 453 g
- Colour
- White
- 2.4 GHz
- Yes
- Routing protocols
- IP
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Zyxel
- Category
- Wireless Access Point
- Model
- NWA110AX
- Part numbers
- 5420, NWA110AX-EU0202F, 140230, NWA110AX-EU0102F, NWA110AX
- EAN / UPC
- 760559126957, 4718937630806, 4718937610259
- Also known as
- Zyxel NWA110AX 1000 Mbit/s White Power over Ethernet (PoE)
Specifications
61 specifications in 14 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.412 - 2.472, 5.470 - 5.725 GHz |
| Bandwidth | 0.08 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Automatic channel scanning | Yes |
| Automatic channel selection | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Fast roaming | Yes |
| VLAN support | Yes |
| Virtual LAN features | SSID-based VLAN assignment |
| Band steering | Yes |
| Transmitting power | 22 dBmW |
| Receiver sensitivity | Min. Rx sensitivity up to -101 dBm |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA-PSK, WPA2, WPA2-Enterprise, WPA3 |
Protocols
| Specification | Value |
|---|---|
| Routing protocols | IP |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Command-line interface (CLI) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 5 - 12 V |
| Input current | 1.5 A |
| Power consumption (typical) | 17 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Table, Wall |
| Product colour | White |
| On/off switch | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| LED indicators | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 6 dBi |
| Polarization | Dual polarization |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002 EMC FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 EN60601-1-2 BSMI CNS13438 Safety Safety EN 60950-1 IEC 60950-1 BSMI CNS14336-1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 180 mm |
| Height | 39 mm |
| Weight | 453 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 229 mm |
| Package depth | 216 mm |
| Package height | 64 mm |
| Package weight | 770 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
