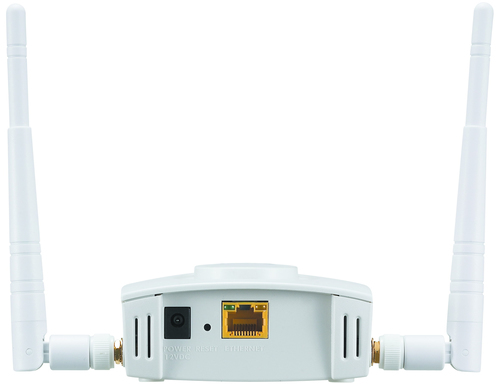

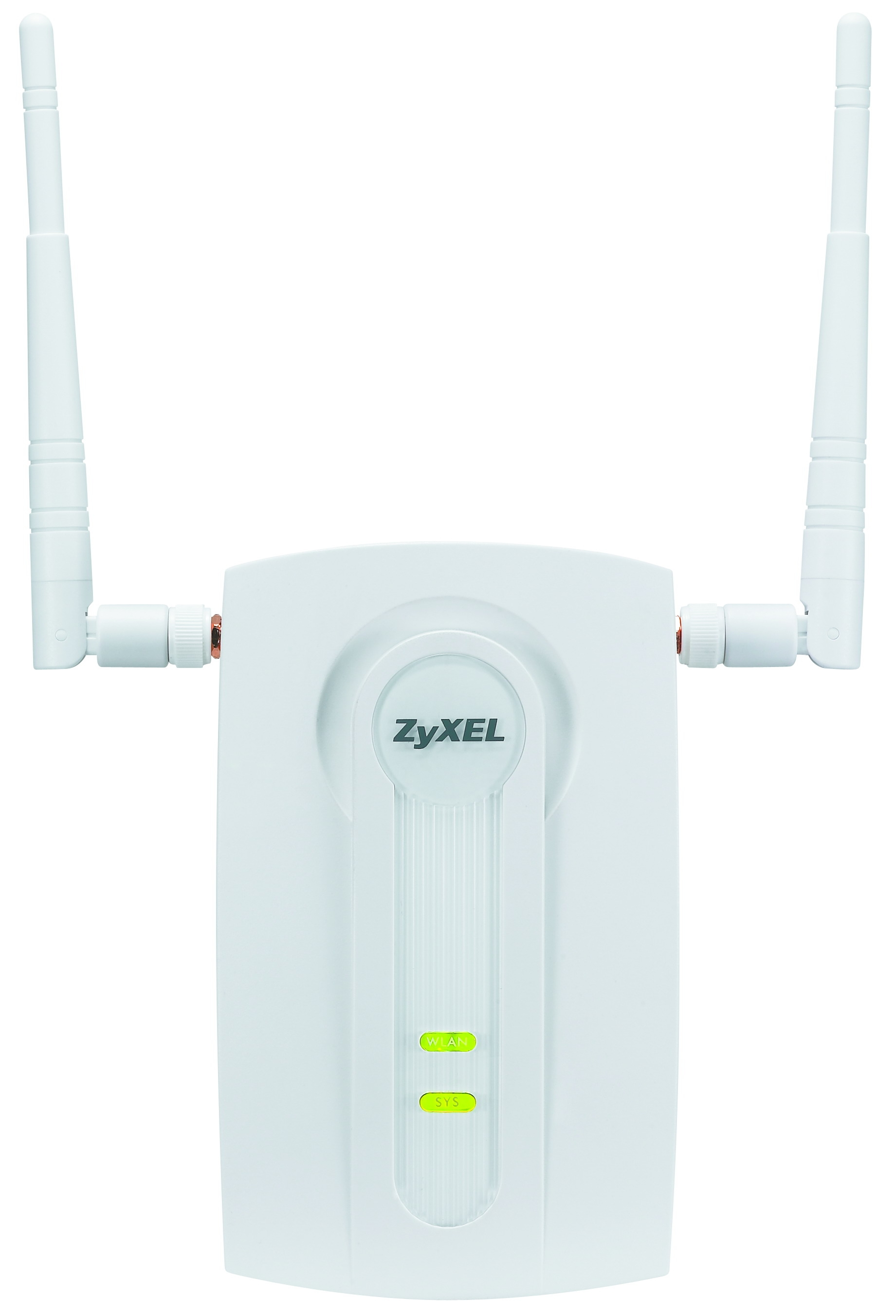

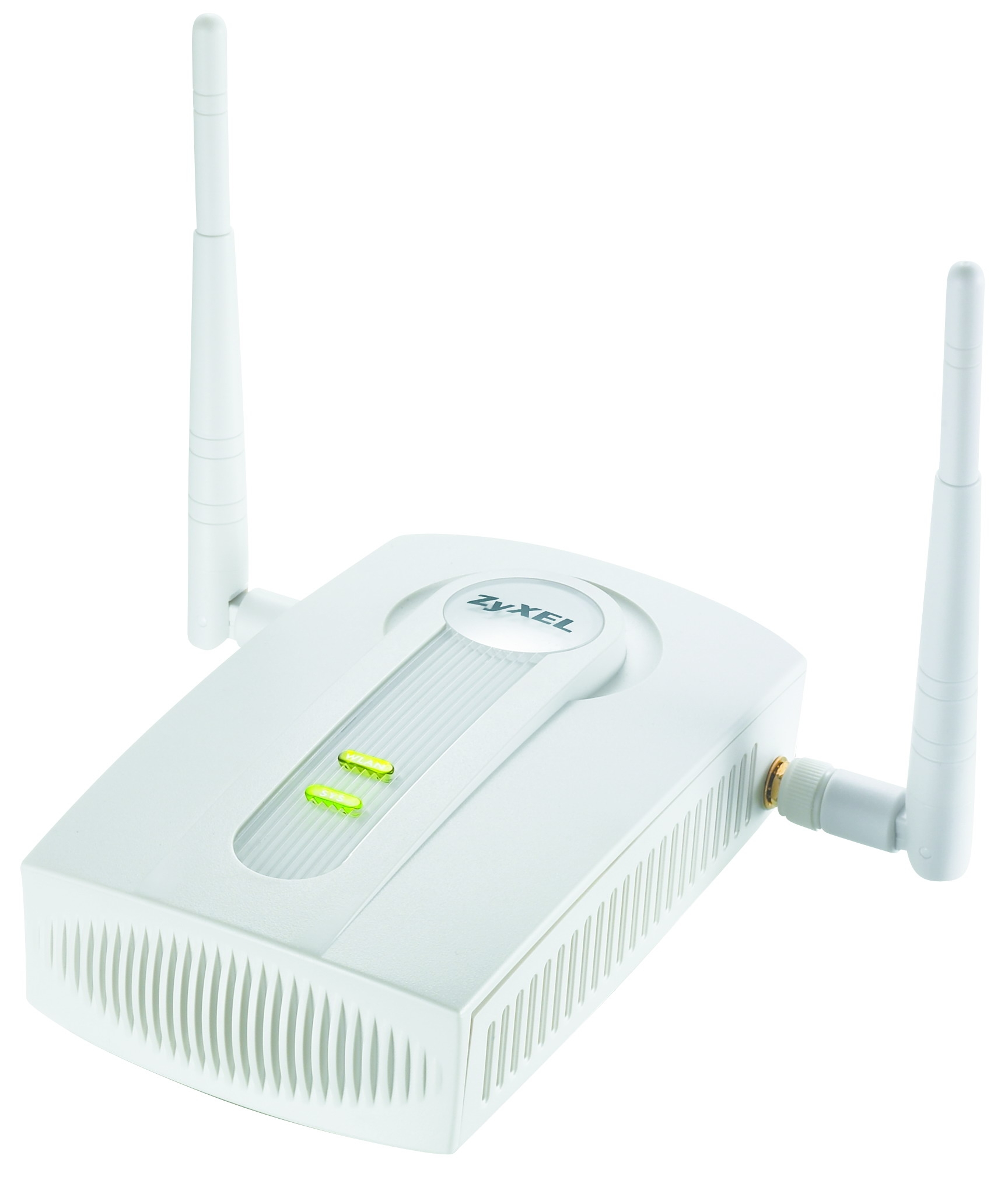

Zyxel NWA1100-N 300 Mbit/s Power over Ethernet (PoE)

Zyxel NWA1100-N 300 Mbit/s Power over Ethernet (PoE)

Model NWA1100-NPart no. 4603EAN 5053959459301

31 specifications
  • Speed300 Mbit/s
  • ConnectivityGigabit Ethernet, WLAN
  • Weight200 g
  • 2.4 GHzYes
  • InternalNo
  • Antennas quantity2
See all specifications

Overview

Speed
300 Mbit/s
Connectivity
Gigabit Ethernet, WLAN
Weight
200 g
2.4 GHz
Yes
Internal
No
Antennas quantity
2
Brand
Zyxel
Model
NWA1100-N
Part numbers
4603, NWA1100-N-EU01F
EAN / UPC
5053959459301, 357197260947, 596677275884, 5052180977684 +1 more
Also known as
Zyxel NWA1100-N 300 Mbit/s Power over Ethernet (PoE)

Specifications

31 specifications in 12 groups

Features

2.4 GHzYes
Maximum data transfer rate300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Throughput data rate110 Mbit/s
Frequency band2.4 GHz
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u
Cabling technology10/100/1000Base-T(X)
Modulation16-QAM, 64-QAM, BPSK, DBPSK, DQPSK, QPSK
VLAN supportYes
Quality of Service (QoS) supportYes

Security

Security algorithmsEAP-TLS, PEAP, WEP, WPA, WPA2-PSK
MAC address filteringYes

Protocols

DHCP clientYes
Management protocolsSLI, SNMP

Ports & interfaces

InterfaceGigabit Ethernet, WLAN
Ethernet LAN (RJ-45) ports1

Power

Power over Ethernet (PoE)Yes

Design

InternalNo

Antenna

Antennas quantity2

Certificates

CertificationFCC 15C 15.247 ETSI EN 300 328 DGT LP0002 FCC 15/107 EN 301 489-17 V1.2.1:08-2002 EN 301 489-1 V1.5.1:11-2004

Weight & dimensions

Dimensions (WxDxH)152 x 92 x 45 mm
Weight200 g

Packaging data

Package weight770 g

Other features

Compliance industry standards802.11 b/g/n
Networking featuresFast Ethernet
Package dimensions (WxDxH)275 x 147 x 100 mm
SafetyEN 60950-1, IEC 60950-1

Operational conditions

Operating relative humidity (H-H)20 - 95%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-30 - 60 °C
Storage relative humidity (H-H)10 - 90%
