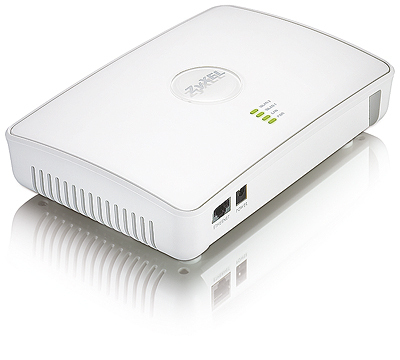

NWA-8500 (Kit)
Model NWA-8500 (Kit)Part no. 2408
28 specifications
- Speed54 Mbit/s
- Weight420 g
- 2.4 GHzYes
- Security algorithms802.1x RADIUS
- Ethernet LAN (RJ-45) ports1
- Antenna typeInternal
Overview
- Speed
- 54 Mbit/s
- Weight
- 420 g
- 2.4 GHz
- Yes
- Security algorithms
- 802.1x RADIUS
- Ethernet LAN (RJ-45) ports
- 1
- Antenna type
- Internal
- Brand
- Zyxel
- Category
- Wireless Access Point
- Model
- NWA-8500 (Kit)
- Part number
- 2408
- Also known as
- Zyxel NWA-8500 (Kit) 54 Mbit/s Power over Ethernet (PoE)
Specifications
28 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 54 Mbit/s |
| Frequency band | 2.412, 5.15 GHz |
| Cabling technology | 10/100Base-T(X) |
| Modulation | CCK, DBPSK, DPSK, DQPSK, QPSK |
Security
| Specification | Value |
|---|---|
| Security algorithms | 802.1x RADIUS |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 12 V |
| Input current | 1.5 A |
| Power supply type | 48VDC |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antennas quantity | 4 |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCCFCC, DGT |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 138.5 x 198.5 x 47.5 mm |
| Weight | 420 g |
Other features
| Specification | Value |
|---|---|
| Supported data transfer rates | 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 |
| Indoor range | 802.11g - up to 100 m 802.11a - up to 80 m |
| Outdoor range | 802.11g - up to 400 m 802.11a - up to 200 m |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af |
| Wireless technology | IEEE 802.11 a/b/g |
| I/O ports | 2 x WLAN |
| Non-operating relative humidity (non-condensing) | 20 - 95% |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | -30 - 60% |
