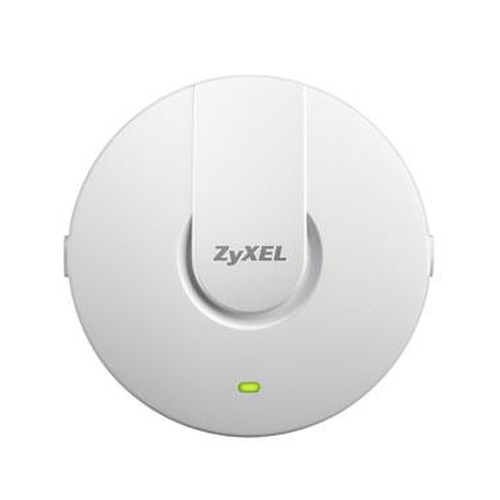

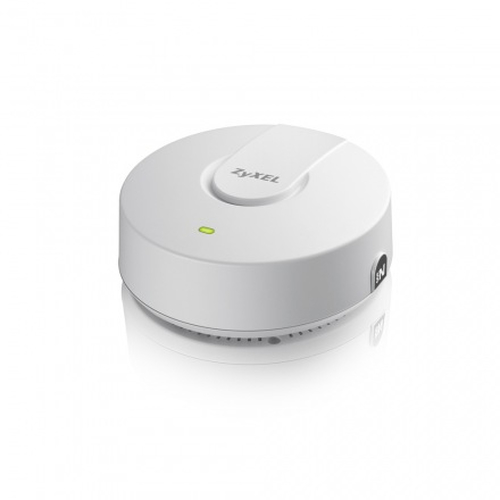

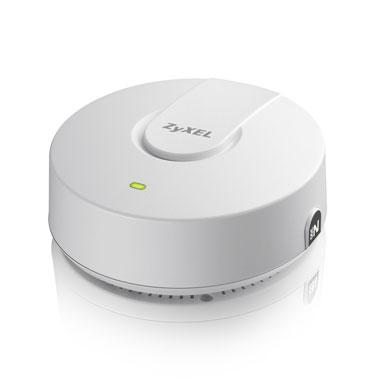

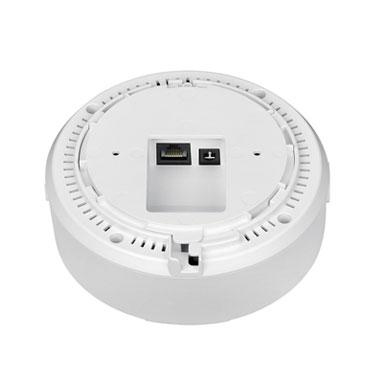

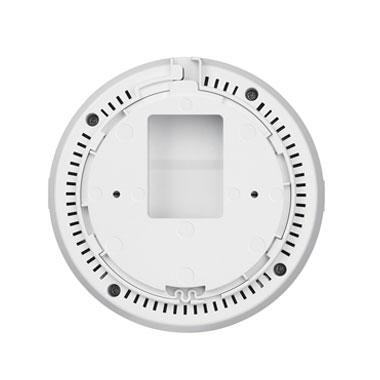

Zyxel NWA-5123-N 1000 Mbit/s

Zyxel NWA-5123-N 1000 Mbit/s

Model NWA-5123-NPart no. ZYXNWA-5123-N

22 specifications

Speed1000 Mbit/s
2.4 GHzYes
Security algorithmsWEP, WPA2, WPA2-PSK
Ethernet LAN (RJ-45) ports1
Antenna featuresIntegrated antenna
Operating relative humidity (H-H)10 - 90%

See all specifications

Overview

Speed: 1000 Mbit/s
2.4 GHz: Yes
Security algorithms: WEP, WPA2, WPA2-PSK
Ethernet LAN (RJ-45) ports: 1
Antenna features: Integrated antenna
Operating relative humidity (H-H): 10 - 90%

Brand: Zyxel
Category: Wireless Access Point
Model: NWA-5123-N
Part number: ZYXNWA-5123-N
Also known as: Zyxel NWA-5123-N 1000 Mbit/s

Specifications

22 specifications in 9 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1000 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4, 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK

Security

Specification	Value
Security algorithms	WEP, WPA2, WPA2-PSK

Protocols

Specification	Value
DHCP client	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1

Design

Specification	Value
LED indicators	Yes

Antenna

Specification	Value
Antenna features	Integrated antenna
Antenna gain level (max)	3 dBi

Packaging data

Specification	Value
Package width	282 mm
Package depth	207 mm
Package height	71 mm

Other features

Specification	Value
Compliance industry standards	IEEE 802.11a/g, IEEE 802.11b, IEEE 802.11n, IEEE 802.3af
Safety	EN 60950

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	10 - 90%
