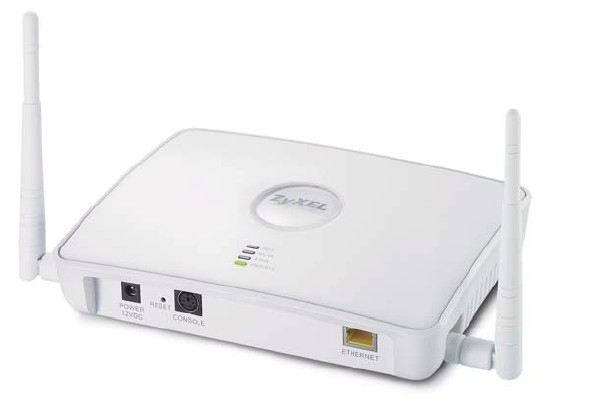

Zyxel NWA-3163 802.11b/g Wireless Business Access Point

NWA-3163 802.11b/g Wireless Business Access Point

Model NWA-3163 802.11b/g Wireless Business Access PointPart no. 91-005-206002BEAN 4718937506095

23 specifications

Speed100 Mbit/s
Weight420 g
2.4 GHzYes
Ethernet LAN (RJ-45) ports1
Antenna gain level (max)3 dBi
Dimensions (WxDxH)138.5 x 198.5 x 47.5 mm

See all specifications

Overview

Speed: 100 Mbit/s
Weight: 420 g
2.4 GHz: Yes
Ethernet LAN (RJ-45) ports: 1
Antenna gain level (max): 3 dBi
Dimensions (WxDxH): 138.5 x 198.5 x 47.5 mm

Brand: Zyxel
Category: Wireless Access Point
Model: NWA-3163 802.11b/g Wireless Business Access Point
Part number: 91-005-206002B
EAN / UPC: 4718937506095
Also known as: Zyxel NWA-3163 802.11b/g Wireless Business Access Point 100 Mbit/s Power over Ethernet (PoE)

Specifications

23 specifications in 8 groups

Features

Specification	Value
2.4 GHz	Yes
Maximum data transfer rate	100 Mbit/s
Throughput data rate	33 Mbit/s
Frequency band	2.4 GHz
Modulation	DQPSK, QPSK

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Power supply type	12V DC, 1.5A
Output power description	200 mW

Antenna

Specification	Value
Antenna gain level (max)	3 dBi

Certificates

Specification	Value
Certification	FCC Part 15C 15.247, FCC Part 15B, DGT LP0002, CSA 60950-1, IEC 60950-1, EN 60950-1, UL 60950-1, ANS/UL 2043

Weight & dimensions

Specification	Value
Dimensions (WxDxH)	138.5 x 198.5 x 47.5 mm
Weight	420 g

Other features

Specification	Value
Supported data transfer rates	IEEE 802.11b: CCK: 11, 5.5Mbps, DQPSK: 2Mbps, DBPSK: 1 Mbps; IEEE 802.11g: OFDM: 54, 48, 36, 24, 18, 12, 9 & 6Mbps
Indoor range	130m
Outdoor range	500m
Compliance industry standards	IEEE 802.11 b/g, IEEE 802.3, IEEE 802.3u
Non-operating relative humidity (non-condensing)	20 - 95%
Wireless standard	IEEE 802.11 b/g

Operational conditions

Specification	Value
Operating relative humidity (H-H)	20 - 95%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-30 - 60 °C
