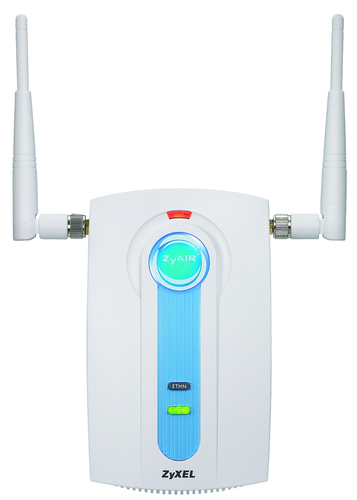

Zyxel NWA-3100 54 Mbit/s Power over Ethernet (PoE)

NWA-3100 54 Mbit/s Power over Ethernet (PoE)

Model NWA-3100Part no. ZYXNWA-3100EAN 4718937503896

25 specifications

Speed54 Mbit/s
Weight310 g
Security algorithmsEAP-TLS, EAP-TTLS, PEAP
DHCP clientYes
Ethernet LAN (RJ-45) ports1
InternalNo

See all specifications

Overview

Speed: 54 Mbit/s
Weight: 310 g
Security algorithms: EAP-TLS, EAP-TTLS, PEAP
DHCP client: Yes
Ethernet LAN (RJ-45) ports: 1
Internal: No

Brand: Zyxel
Category: Wireless Access Point
Model: NWA-3100
Part number: ZYXNWA-3100
EAN / UPC: 4718937503896
Also known as: Zyxel NWA-3100 54 Mbit/s Power over Ethernet (PoE)

Specifications

25 specifications in 11 groups

Features

Specification	Value
Maximum data transfer rate	54 Mbit/s
Frequency band	2.412 - 2.472, 5.15 - 5.725 GHz
Cabling technology	10/100Base-T(X)
Quality of Service (QoS) support	Yes

Security

Specification	Value
Security algorithms	EAP-TLS, EAP-TTLS, PEAP
MAC address filtering	Yes

Protocols

Specification	Value
DHCP client	Yes
Management protocols	SNMP v2c, MIB II, IPSec, PPTP, L2TP, Web/FTP/TFTP, SNMP

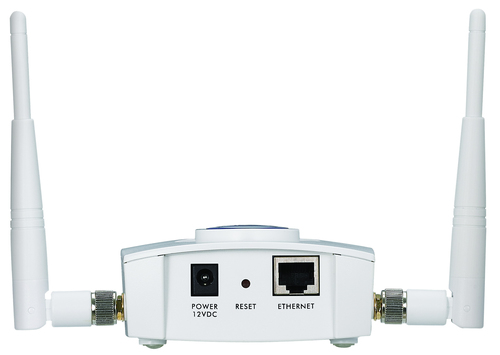

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
AC input voltage	12 V
Input current	1.5 A

Design

Specification	Value
Internal	No

Antenna

Specification	Value
Antenna gain level (max)	2 dBi

Performance

Specification	Value
Minimum system requirements	Internet Explorer 5.0

Weight & dimensions

Specification	Value
Dimensions (WxDxH)	152 x 92 x 45 mm
Weight	310 g

Other features

Specification	Value
Supported data transfer rates	802.11b: CCK: 11, 5.5Mbps; DQPSK: 2Mbps; DBPSK: 1 Mbps; 802.11a/g: OFDM: 54, 48, 36, 24, 18, 12, 9 & 6Mbps
Indoor range	802.11b/g: 100m, 802.11a: 80m.
Outdoor range	802.11b/g: 400m, 802.11a: 200m.
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3af
Wireless technology	IEEE 802.11 a/b/g
Non-operating relative humidity (non-condensing)	20 - 95%

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
