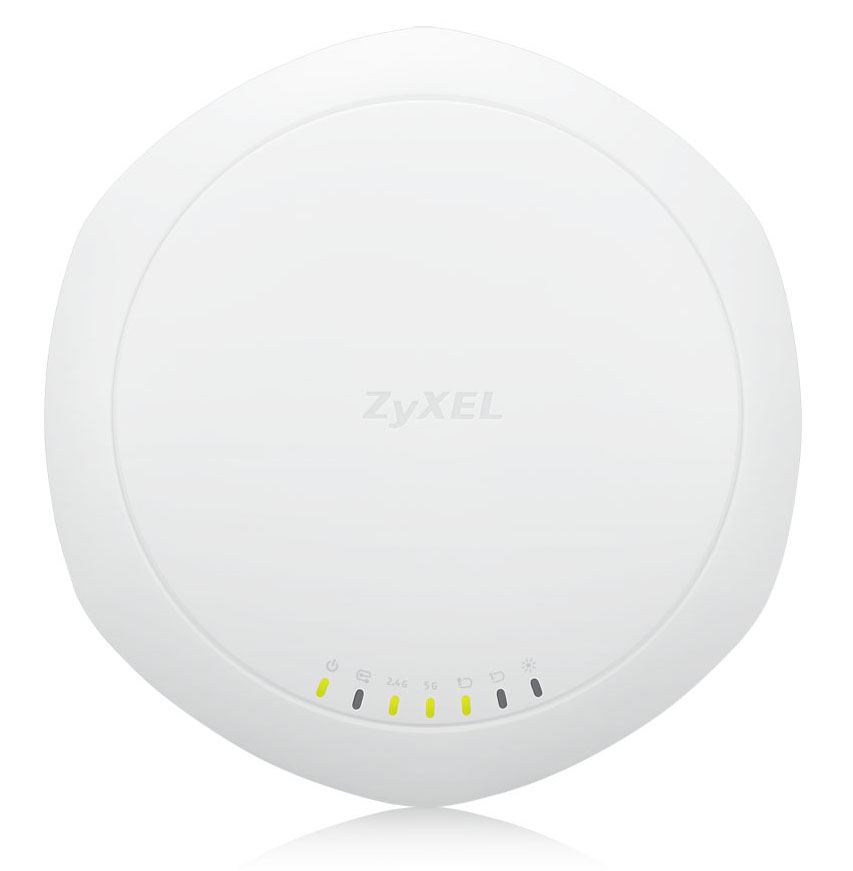

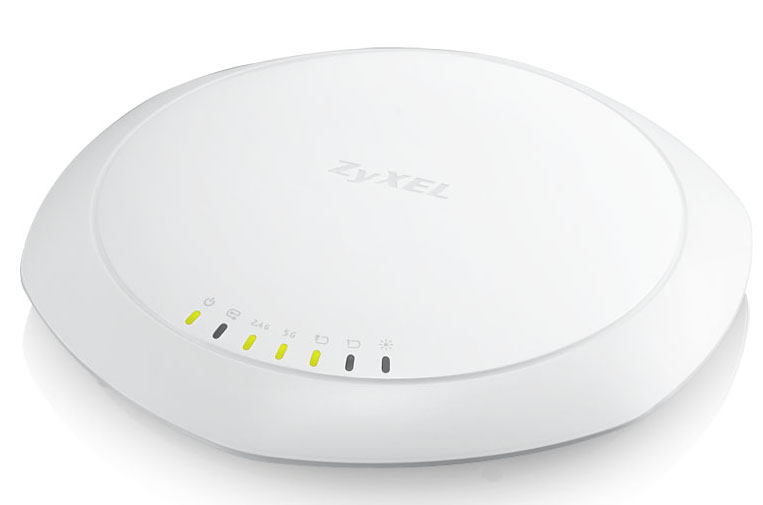

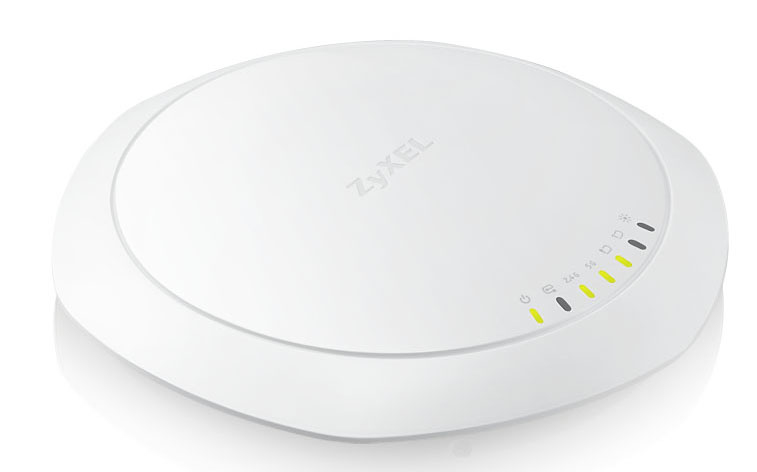

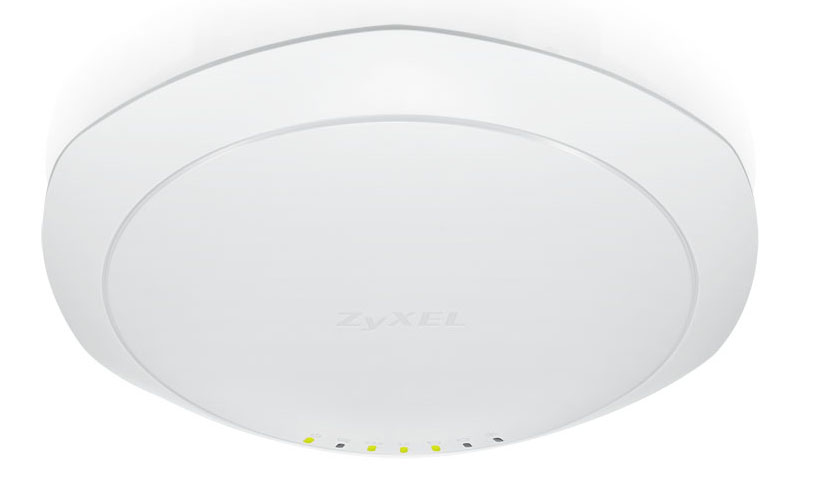

Zyxel NAP203 1300 Mbit/s White Power over Ethernet (PoE)

Zyxel NAP203 1300 Mbit/s White Power over Ethernet (PoE)

Model NAP203Part no. NAP203-ZZ0101FEAN 4059313026777

48 specifications
  • Speed1300 Mbit/s
  • Weight445 g
  • ColourWhite
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports2
  • PlacementCeiling, Wall
See all specifications

Overview

Speed
1300 Mbit/s
Weight
445 g
Colour
White
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
2
Placement
Ceiling, Wall
Brand
Zyxel
Model
NAP203
Part numbers
NAP203-ZZ0101F, NAP203
EAN / UPC
4059313026777, 4718937592890, 760559124007
Also known as
Zyxel NAP203 1300 Mbit/s White Power over Ethernet (PoE)

Specifications

48 specifications in 12 groups

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate1300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
MIMOYes
Modulation16-QAM, 64-QAM, 256-QAM, BPSK, DBPSK, DQPSK, QPSK
Wi-Fi Multimedia (WMM)/(WME)Yes
Wi-Fi Multimedia (WMM) featuresWMM power saving
VLAN supportYes
Wireless isolationYes
Maximal-Ratio Combining (MRC)Yes
Maximum Likelihood Detection (MLD)Yes
Cyclic Shift Diversity (CSD)Yes
Quality of Service (QoS) supportYes
Transmitting power27 dBmW
Receiver sensitivity-102 dBm

Security

Security algorithms802.1x RADIUS, EAP-AKA, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, SSID, WEP, WPA, WPA2-PSK
MAC address filteringYes
Number of SSID supported8
Remote Authentication Dial-In User Service (RADIUS)Yes

Protocols

DHCP clientYes

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB 2.0 ports quantity0

Power

Power over Ethernet (PoE)Yes
Power supply12.48 W

Design

PlacementCeiling, Wall
Product colourWhite
LED indicatorsYes
InternalNo

Antenna

Antenna featuresIntegrated antenna
Antennas quantity2
Antenna gain level (max)5 dBi

Certificates

CertificationFCC 15C, FCC 15E, ETSI EN 300 328, EN 301 893, LP0002, FCC 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, EN60601-1-2, BSMI CNS13438, EN 60950-1, IEC 60950-1, BSMI CNS14336-1

Weight & dimensions

Width203.9 mm
Depth191.7 mm
Height34.7 mm
Weight445 g

Packaging data

Package width235 mm
Package depth246 mm
Package height60 mm
Package weight938 g

Packaging content

Mounting kitYes
Quick start guideYes

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)10 - 90%
