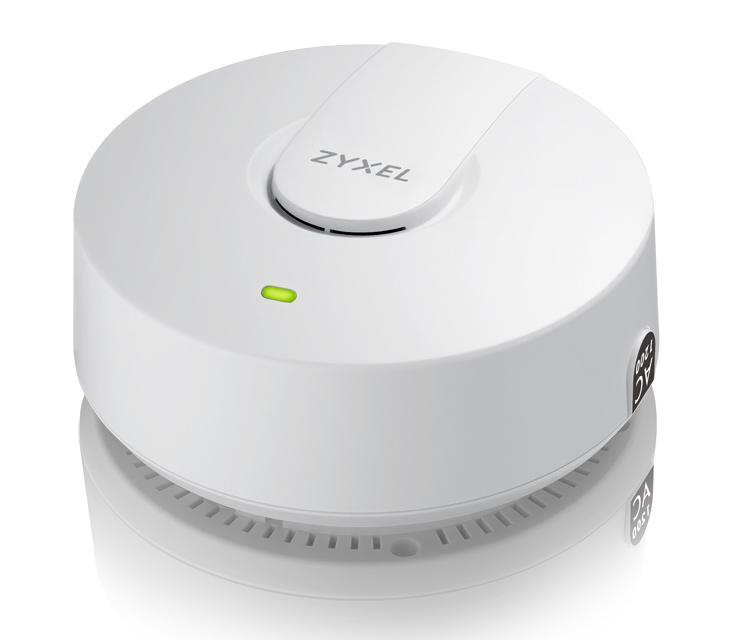

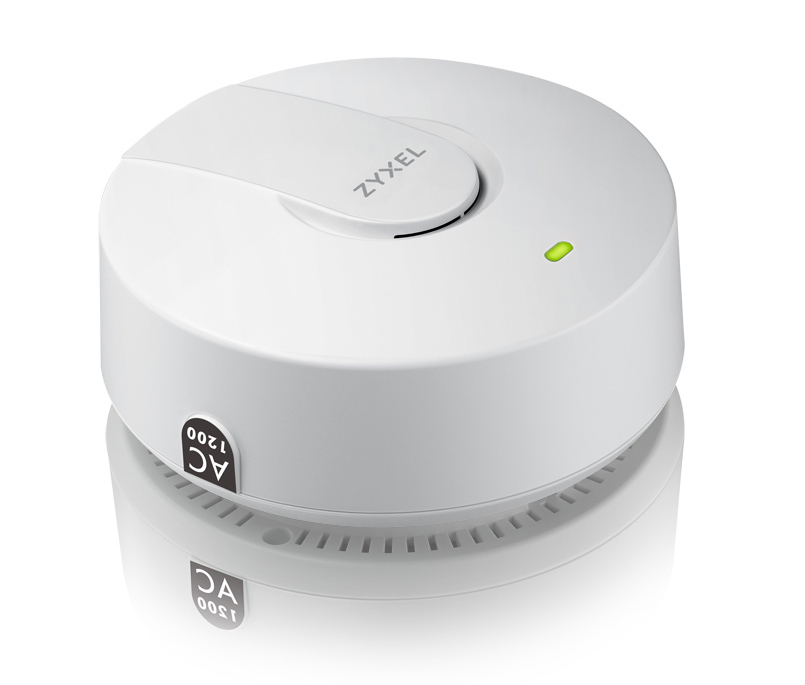

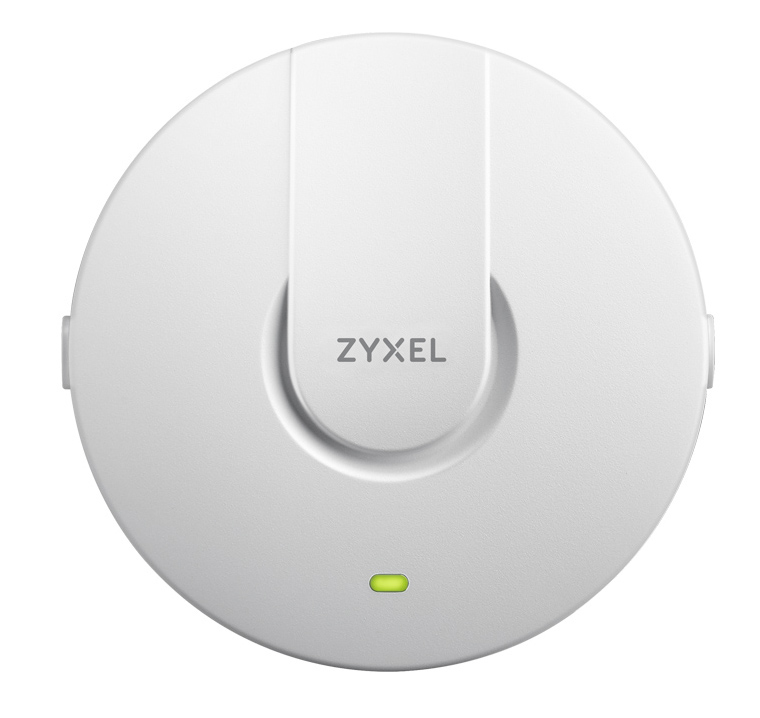

Zyxel NAP102 1200 Mbit/s White Power over Ethernet (PoE)

Zyxel NAP102 1200 Mbit/s White Power over Ethernet (PoE)

Model NAP102Part no. NAP102-EU0101FEAN 4718937591121

40 specifications
  • Speed1200 Mbit/s
  • Weight300 g
  • ColourWhite
  • 2.4 GHzYes
  • PlacementCeiling, Wall
  • Antenna featuresIntegrated antenna
See all specifications

Overview

Speed
1200 Mbit/s
Weight
300 g
Colour
White
2.4 GHz
Yes
Placement
Ceiling, Wall
Antenna features
Integrated antenna
Brand
Zyxel
Model
NAP102
Part numbers
NAP102-EU0101F, NAP102-ZZ0101F, 6105
EAN / UPC
4718937591121, 4718937593088
Also known as
Zyxel NAP102 1200 Mbit/s White Power over Ethernet (PoE)

Specifications

40 specifications in 12 groups

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate1200 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Modulation16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, OQPSK
Wi-Fi Multimedia (WMM)/(WME)Yes
VLAN supportYes
Wireless isolationYes
Quality of Service (QoS) supportYes
Transmitting power26 dBmW
Receiver sensitivity-99 dBm

Security

Security algorithms802.1x RADIUS, EAP-AKA, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, SSID, WEP, WPA, WPA2, WPA2-PSK
MAC address filteringYes
Number of SSID supported8

Protocols

DHCP clientYes

Ports & interfaces

DC-in jackYes

Power

Power over Ethernet (PoE)Yes
AC input voltage12 V
Input current1 A
Power supply9 W

Design

PlacementCeiling, Wall
Product colourWhite
InternalNo

Antenna

Antenna featuresIntegrated antenna
Antenna gain level (max)4 dBi

Certificates

CertificationETSI EN 300 328 V1.7.1: 11-2006, EN 301 893 V1.5.1 FCC 15.247, FCC Part 15E, LP0002, EN 60601-1-2: 2007, EN 301 489-1 V1.8.1: 11-2008, EN 301 489-17 V2.1.1: 05-2009 EN55022: 2010, EN55024: 2010, EN61000-3-2/-3 FCC 15.107, BSMI CNS13438.99, CNS14336: 99, EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12:

Weight & dimensions

Width130 mm
Depth130 mm
Height54.7 mm
Weight300 g

Packaging data

Package width278 mm
Package depth209 mm
Package height72 mm

Packaging content

AC adapter includedYes
Mounting kitYes

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-30 - 70 °C
Storage relative humidity (H-H)10 - 90%
