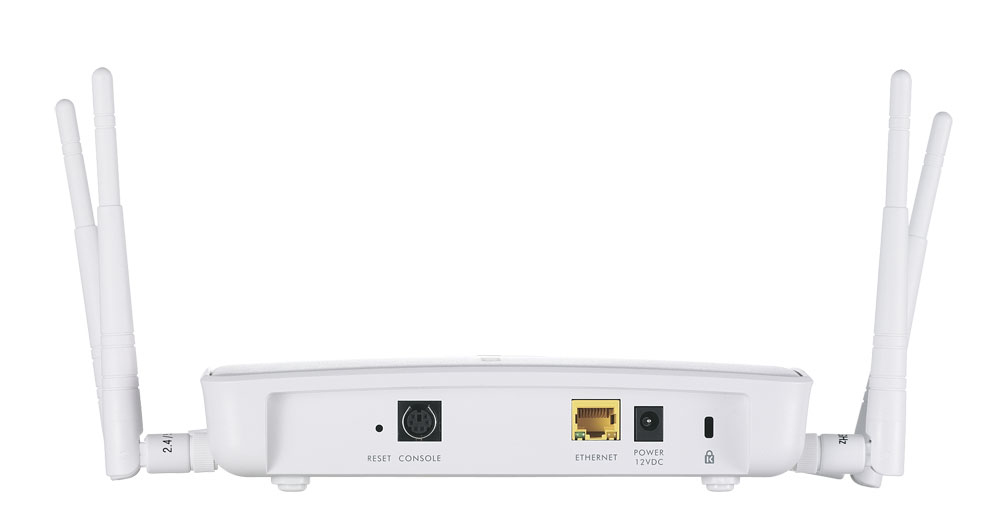

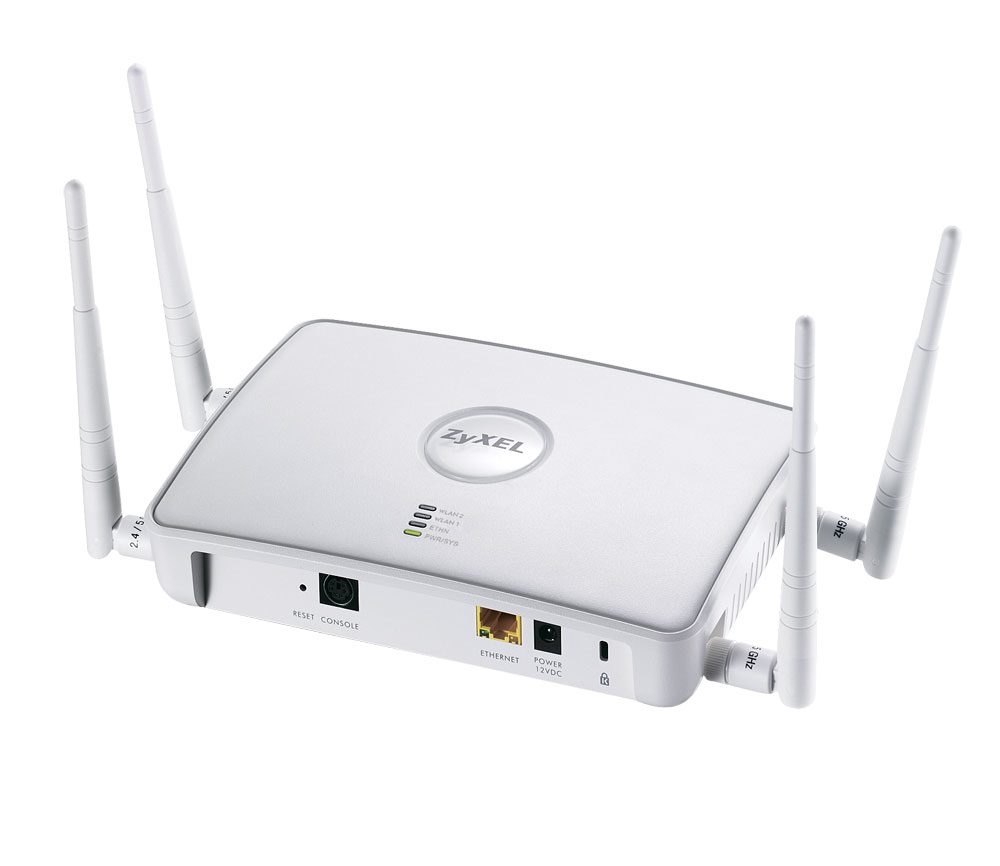

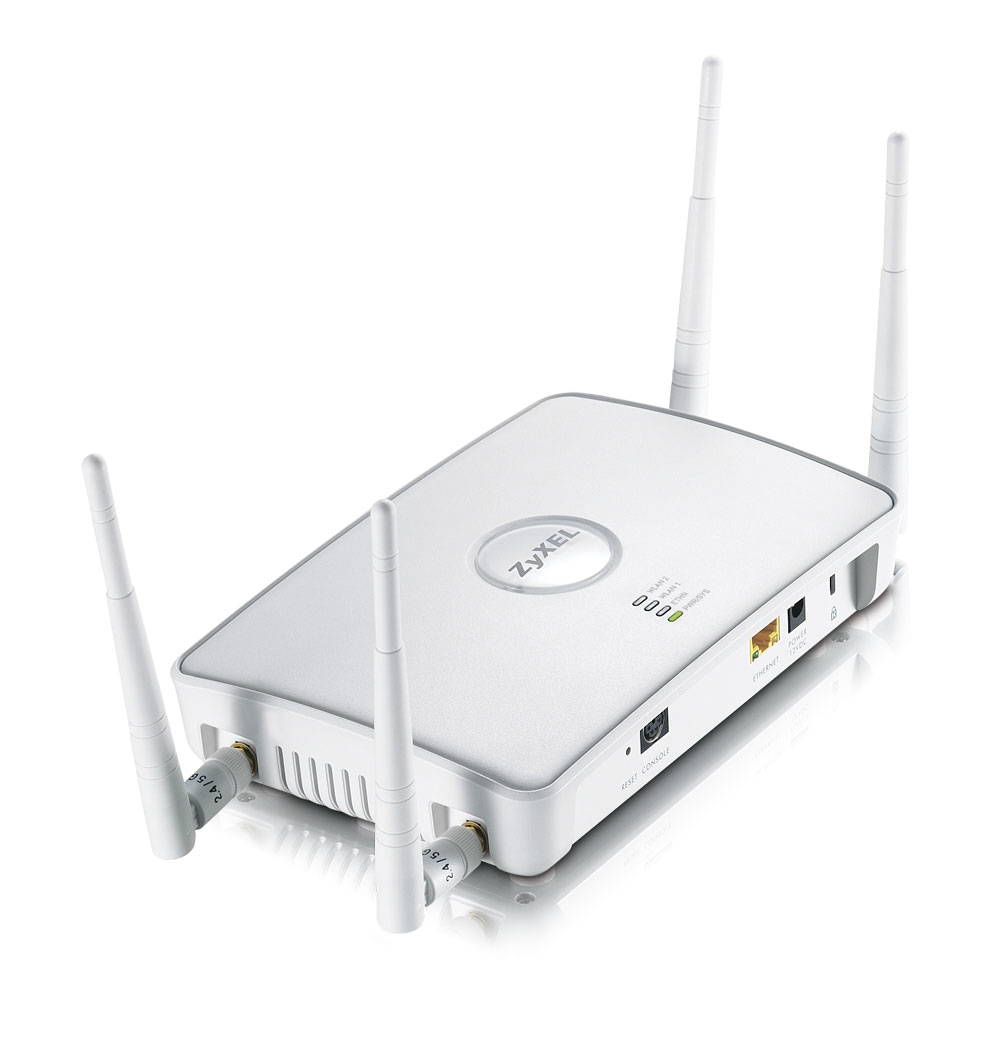

Zyxel Dual-Radio Access Point
Model Dual-Radio Access PointPart no. NWA3560-N-EU0101FEAN 4718937561001
35 specifications
- Speed1000 Mbit/s
- Weight403 g
- 2.4 GHzYes
- Security algorithmsEAP-TLS, EAP-TTLS, PEAP
- WAN connectionEthernet (RJ-45)
- Antennas quantity4
Overview
- Speed
- 1000 Mbit/s
- Weight
- 403 g
- 2.4 GHz
- Yes
- Security algorithms
- EAP-TLS, EAP-TTLS, PEAP
- WAN connection
- Ethernet (RJ-45)
- Antennas quantity
- 4
- Brand
- Zyxel
- Category
- Wireless Access Point
- Model
- Dual-Radio Access Point
- Part number
- NWA3560-N-EU0101F
- EAN / UPC
- 4718937561001, 5053959459387, 5054605013069, 5054629267462
- Also known as
- Zyxel Dual-Radio Access Point 1000 Mbit/s Power over Ethernet (PoE)
Specifications
35 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4, 5 GHz |
| Bandwidth | 5 GHz |
| Channels quantity | 2 channels |
| Modulation | 16-QAM, 64-QAM, CCK, DQPSK, QPSK |
| VLAN support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | EAP-TLS, EAP-TTLS, PEAP |
| MAC address filtering | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| WAN connection | Ethernet (RJ-45) |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 14 W |
Antenna
| Specification | Value |
|---|---|
| Antennas quantity | 4 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 163 mm |
| Depth | 163 mm |
| Height | 40 mm |
| Dimensions (WxDxH) | 198 x 138 x 45 mm |
| Weight | 403 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 295 mm |
| Package depth | 192 mm |
| Package height | 93 mm |
| Package weight | 1.13 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Supported data transfer rates | 100 |
| Compliance industry standards | EEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az |
| Operating temperature (T-T) | -22 - 158 °F |
| Package dimensions (WxDxH) | 295 x 192 x 93 mm |
| Power LED | Yes |
| Wireless technology | Wi-Fi |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
