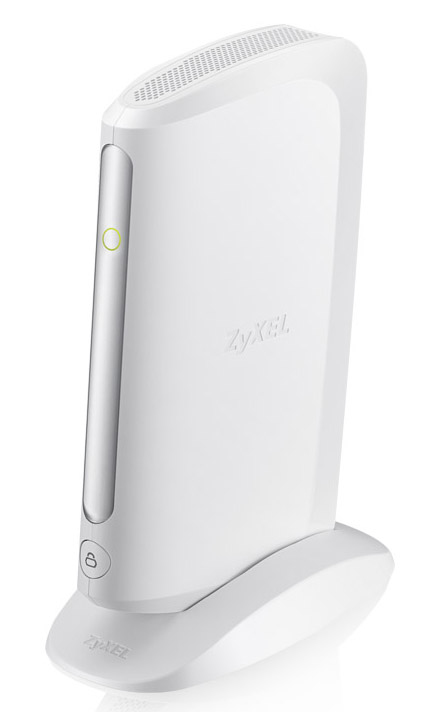

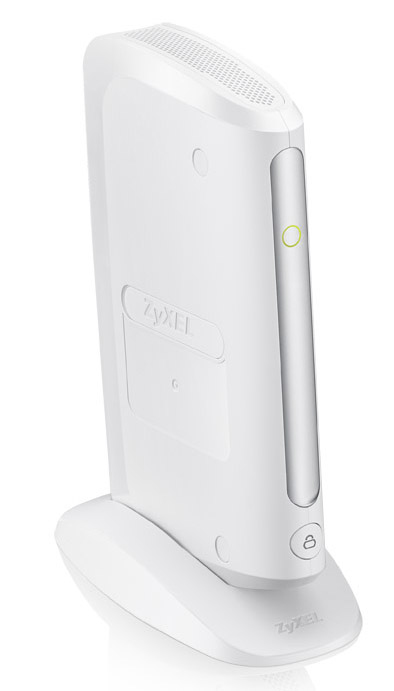

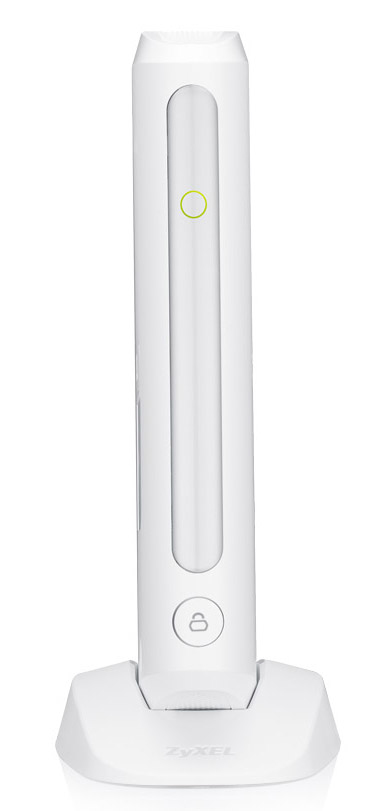

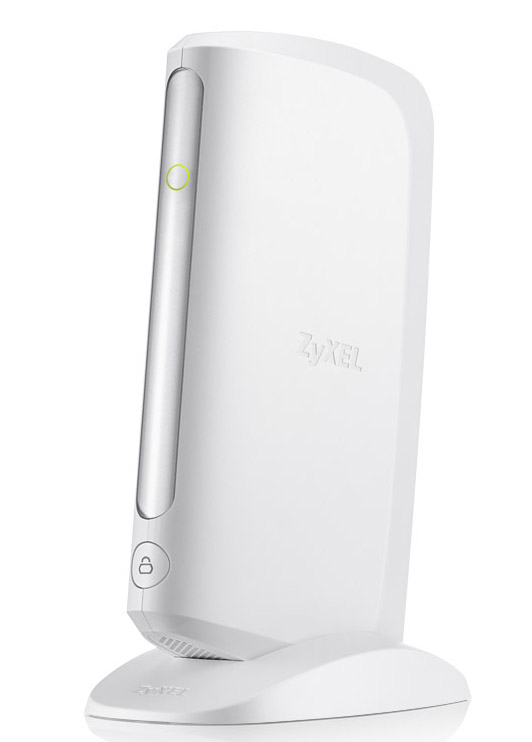

Zyxel Armor X1

Zyxel Armor X1

Model Armor X1Part no. WAP6806-EU0101FEAN 4718937588039

35 specifications

Speed1733 Mbit/s
Weight396 g
ColourWhite
2.4 GHzYes
Security algorithmsWPA, WPA2-PSK
Ethernet LAN (RJ-45) ports4

See all specifications

Overview

Speed: 1733 Mbit/s
Weight: 396 g
Colour: White
2.4 GHz: Yes
Security algorithms: WPA, WPA2-PSK
Ethernet LAN (RJ-45) ports: 4

Brand: Zyxel
Category: Wireless Access Point
Model: Armor X1
Part numbers: WAP6806-EU0101F, 7324
EAN / UPC: 4718937588039
Also known as: Zyxel Armor X1 1733 Mbit/s White

Specifications

35 specifications in 10 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1733 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Bandwidth	5 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Automatic channel selection	Yes
Auto MDI/MDI-X	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes

Security

Specification	Value
Security algorithms	WPA, WPA2-PSK
Service Set Identifier (SSID) features	SSID broadcast on/off

Ports & interfaces

Specification	Value

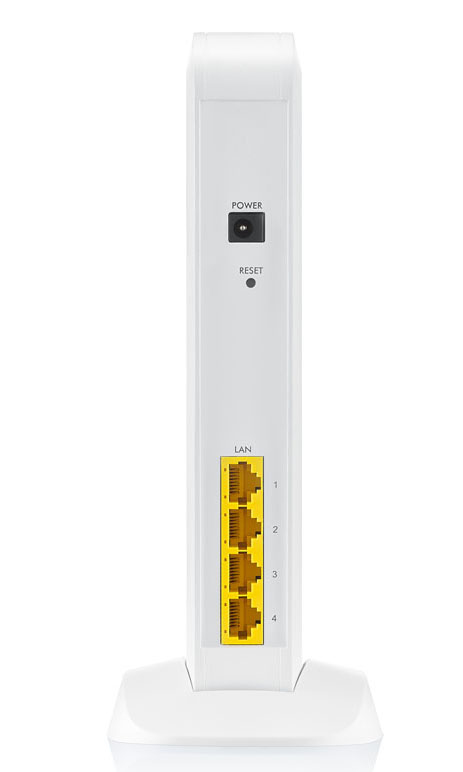

Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	0
DC-in jack	Yes

Power

Specification	Value
Power consumption (max)	10.2 W

Design

Specification	Value
Placement	Table
Product colour	White
WPS push button	Yes
LED indicators	Power, WLAN, WPS
Internal	No

Certificates

Specification	Value
Certification	CE-LVD, EMC, CE

Weight & dimensions

Specification	Value
Width	37 mm
Depth	134 mm
Height	218 mm
Weight	396 g

Packaging data

Specification	Value
Package width	307 mm
Package depth	99 mm
Package height	185 mm
Package weight	1.04 kg

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	LAN (RJ-45)

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	10 - 95%
