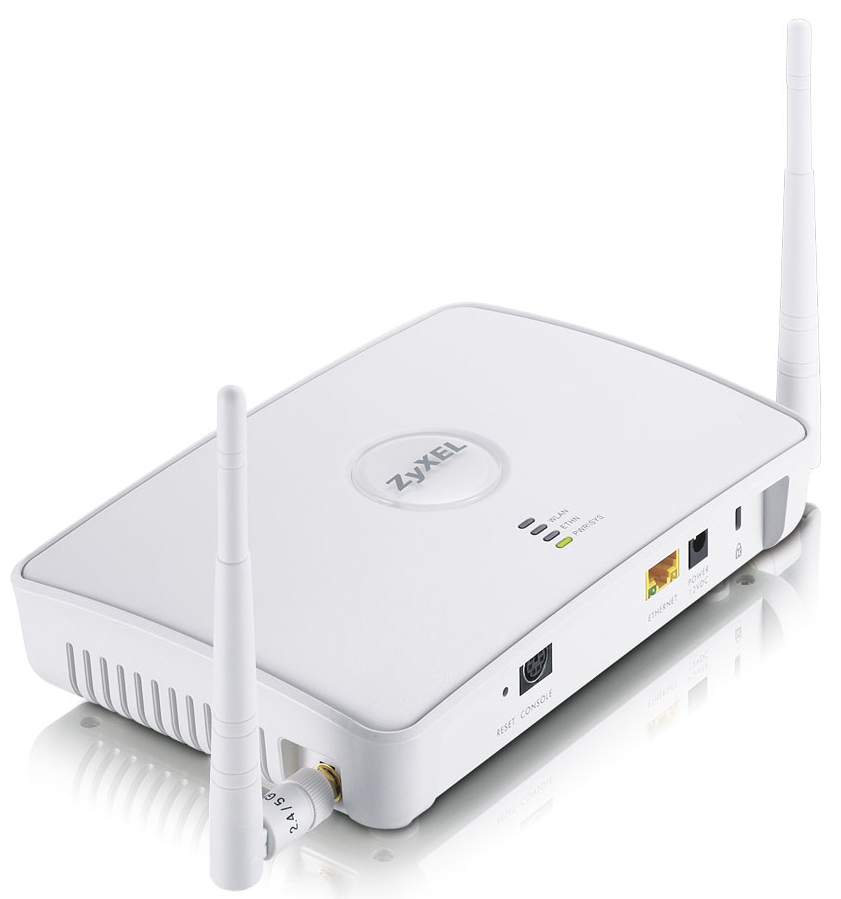

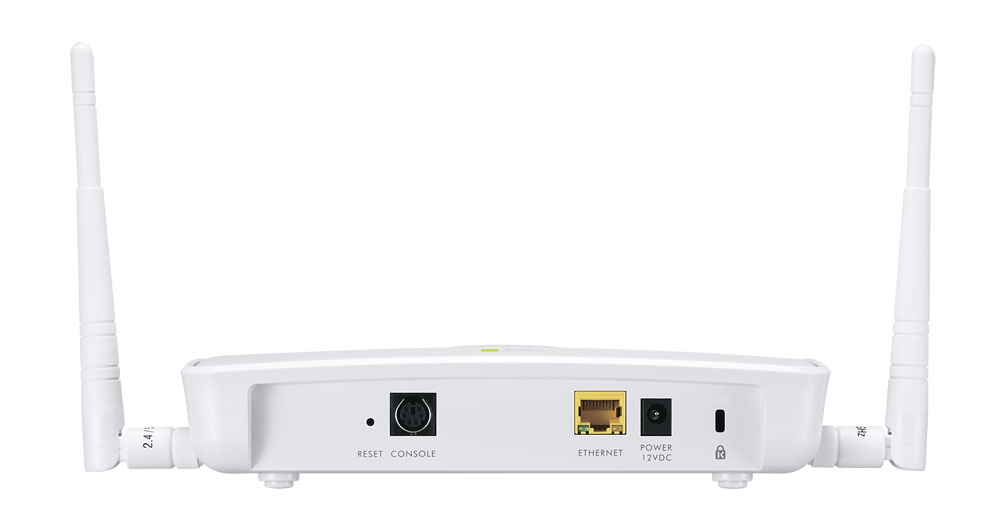

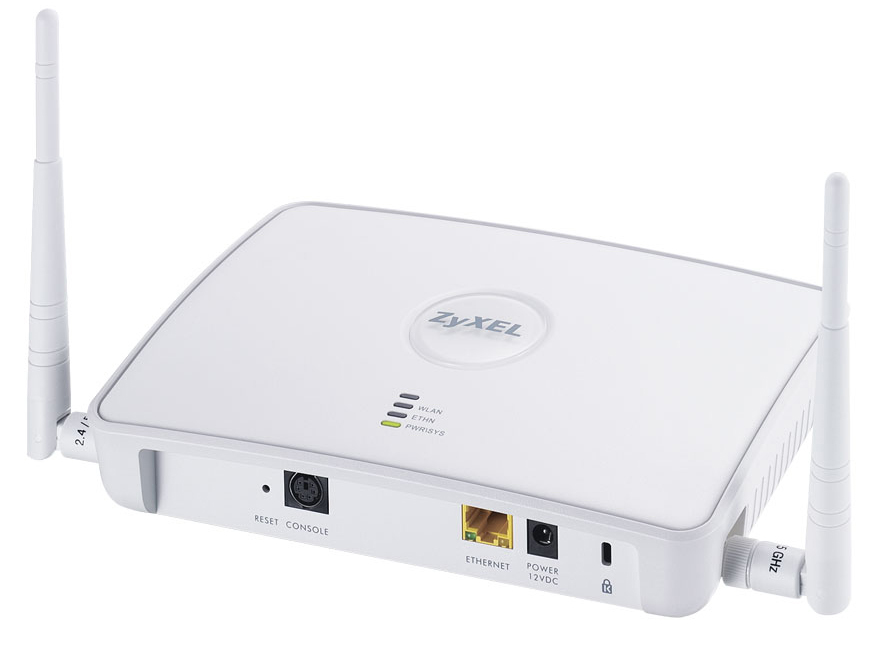

Zyxel 802.11a/b/g/n Business AP
Model 802.11a/b/g/n Business APPart no. NWA3160-N-EU01FEAN 5054484350842
36 specifications
- Speed100 Mbit/s
- Weight439 g
- 2.4 GHzYes
- Security algorithmsEAP-TLS, EAP-TTLS, PEAP
- WAN connectionEthernet (RJ-45)
- Antenna featuresDetachable antenna
Overview
- Speed
- 100 Mbit/s
- Weight
- 439 g
- 2.4 GHz
- Yes
- Security algorithms
- EAP-TLS, EAP-TTLS, PEAP
- WAN connection
- Ethernet (RJ-45)
- Antenna features
- Detachable antenna
- Brand
- Zyxel
- Category
- Wireless Access Point
- Model
- 802.11a/b/g/n Business AP
- Part number
- NWA3160-N-EU01F
- EAN / UPC
- 5054484350842, 115971260138, 132017701745, 616268716906 +2 more
- Also known as
- Zyxel 802.11a/b/g/n Business AP 100 Mbit/s Power over Ethernet (PoE)
Specifications
36 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 100 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.4, 5 GHz |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
| Modulation | 16-QAM, 64-QAM, QPSK |
| VLAN support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | EAP-TLS, EAP-TTLS, PEAP |
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 11 W |
Antenna
| Specification | Value |
|---|---|
| Antenna features | Detachable antenna |
| Antennas quantity | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 198 mm |
| Depth | 138 mm |
| Height | 45 mm |
| Dimensions (WxDxH) | 198 x 138 x 45 mm |
| Weight | 439 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 295 mm |
| Package depth | 192 mm |
| Package height | 93 mm |
| Package weight | 1.16 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Supported data transfer rates | 10 |
| Compliance industry standards | EEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az |
| Operating temperature (T-T) | -22 - 158 °F |
| Package dimensions (WxDxH) | 295 x 192 x 93 mm |
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
