Zyxel 802.11 b/g/n PoE AP

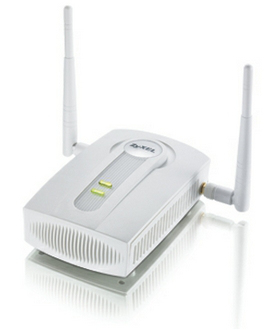

Zyxel 802.11 b/g/n PoE AP

Model 802.11 b/g/n PoE APPart no. NWA1100-NEAN 4718937560592

36 specifications
  • Speed300 Mbit/s
  • Weight200 g
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports1
  • Antenna typeExternal
  • Dimensions (WxDxH)152 x 92 x 45 mm
See all specifications

Overview

Speed
300 Mbit/s
Weight
200 g
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
1
Antenna type
External
Dimensions (WxDxH)
152 x 92 x 45 mm
Brand
Zyxel
Model
802.11 b/g/n PoE AP
Part number
NWA1100-N
EAN / UPC
4718937560592, 760559119461, 760559119690, 7605591194614 +1 more
Also known as
Zyxel 802.11 b/g/n PoE AP 300 Mbit/s Power over Ethernet (PoE)

Specifications

36 specifications in 12 groups

Features

2.4 GHzYes
Maximum data transfer rate300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Throughput data rate110 Mbit/s
Frequency band2.4 GHz
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u
Cabling technology10/100/1000Base-T(X)
MIMOYes
Modulation16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, QPSK
VLAN supportYes
Quality of Service (QoS) supportYes

Security

Security algorithmsEAP-SIM, EAP-TLS, EAP-TTLS, PEAP, TTLS, WEP, WPA, WPA2, WPA2-PSK
MAC address filteringYes
Remote Authentication Dial-In User Service (RADIUS)Yes
VPN supportYes

Protocols

DHCP clientYes
Supported network protocolsRADIUS
Management protocolsSNMP, CLI @ SSH

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Power

Power over Ethernet (PoE)Yes
Power consumption (typical)10 W

Design

LED indicatorsYes

Antenna

Antenna typeExternal
Antennas quantity2

Certificates

CertificationFCC 15C 15.247, ETSI EN 300 328, DGT LP0002, FCC 15/107, EN 301 489-17 V1.2.1:08-2002, EN 301 489-1 V1.5.1:11-2004

Weight & dimensions

Dimensions (WxDxH)152 x 92 x 45 mm
Weight200 g

Packaging data

Package weight770 g

Other features

Networking featuresEthernet, Fast Ethernet, Gigabit Ethernet
Package dimensions (WxDxH)215 x 147 x 100 mm
SafetyEN 60950-1, IEC 60950-1
Wireless technologyIEEE 802.11b/g/n

Operational conditions

Operating relative humidity (H-H)20 - 95%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-30 - 60 °C
Storage relative humidity (H-H)10 - 90%
