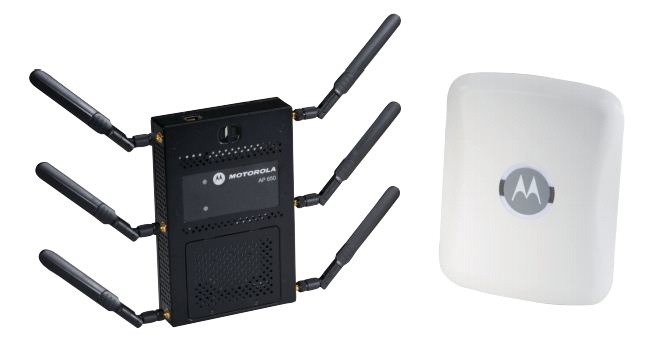

Motorola AP650 150 Mbit/s Power over Ethernet (PoE)
Model AP650Part no. AP-0650-66040-WW
36 specifications
- Speed150 Mbit/s
- ConnectivityEthernet
- Weight1.14 kg
- 2.4 GHzYes
- Security algorithmsSSH
- Antennas quantity2
Overview
- Speed
- 150 Mbit/s
- Connectivity
- Ethernet
- Weight
- 1.14 kg
- 2.4 GHz
- Yes
- Security algorithms
- SSH
- Antennas quantity
- 2
- Brand
- Zebra
- Category
- Wireless Access Point
- Model
- AP650
- Part numbers
- AP-0650-66040-WW, AP-0650-60020-WW, AP-0650-60010-US, AP-0650-60020-US, AP-0650-66040-US
- Also known as
- Motorola AP650 150 Mbit/s Power over Ethernet (PoE)
Specifications
36 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 150 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4, 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T(X) |
| Spread spectrum method | DSSS |
| Modulation | DSSS, OFDM |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSH |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
| DHCP client | Yes |
| Management protocols | SNMP v1/v2/v3 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | Ethernet |
| Interface type | RJ-45 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 12.95 W |
| Power supply type | AC/DC |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antennas quantity | 2 |
| Antenna connector type | RP-SMA |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 141 x 216.4 x 37.7 mm |
| Weight | 1.14 kg |
Other features
| Specification | Value |
|---|---|
| Supported data transfer rates | 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, 54, 300 |
| Compliance industry standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Networking features | Gigabit Ethernet |
| Operating temperature (T-T) | 32 - 122 °F |
| Power LED | Yes |
| Wireless technology | 802.11a/b/g/n |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating altitude | 0 - 2438 m |
