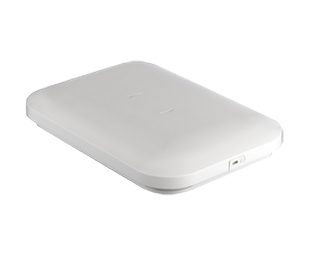

Zebra AP 8222

Zebra AP 8222

Model AP 8222Part no. AP-8222-67030-EU

29 specifications

Speed1300 Mbit/s
Weight1.55 kg
ColourWhite
Security algorithmsWPA, WPA2
DHCP serverYes
Ethernet LAN (RJ-45) ports1

See all specifications

Overview

Speed: 1300 Mbit/s
Weight: 1.55 kg
Colour: White
Security algorithms: WPA, WPA2
DHCP server: Yes
Ethernet LAN (RJ-45) ports: 1

Brand: Zebra
Category: Wireless Access Point
Model: AP 8222
Part number: AP-8222-67030-EU
Also known as: Motorola AP 8222 1300 Mbit/s White

Specifications

29 specifications in 10 groups

Features

Specification	Value
Maximum data transfer rate	1300 Mbit/s
Wi-Fi data rate (max)	1300 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.412 - 5.825 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Channel bandwidth	80 MHz
Quality of Service (QoS) support	Yes

Security

Specification	Value
Security algorithms	WPA, WPA2
IP address filtering	Yes

Protocols

Specification	Value
DHCP server	Yes
DHCP client	Yes
Supported network protocols	BOOTP, PPPoE, LLDP, DynDNS

Management features

Specification	Value
Web-based management	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes

Power

Specification	Value
AC input voltage	48 V
Power consumption (typical)	30 W

Design

Specification	Value
Product colour	White
LED indicators	Yes
Internal	No

Certificates

Specification	Value
Certification	UL, cUL, IEC, EN, RoHS, FCC, EU, TELEC

Weight & dimensions

Specification	Value
Width	153 mm
Depth	230 mm
Height	45 mm
Weight	1.55 kg

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 85 °C
