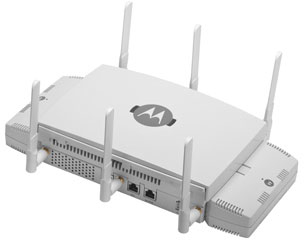

Zebra AP 8132

Zebra AP 8132

Model AP 8132Part no. AP-8132-66040-EUEAN 644728011193

42 specifications
  • Speed450 Mbit/s
  • Weight1.45 kg
  • ColourWhite
  • 2.4 GHzYes
  • Security algorithms802.1x RADIUS, WPA, WPA2
  • Ethernet LAN (RJ-45) ports2
See all specifications

Overview

Speed
450 Mbit/s
Weight
1.45 kg
Colour
White
2.4 GHz
Yes
Security algorithms
802.1x RADIUS, WPA, WPA2
Ethernet LAN (RJ-45) ports
2
Brand
Zebra
Model
AP 8132
Part numbers
AP-8132-66040-EU, AP-8132-66040-WR
EAN / UPC
644728011193
Also known as
Motorola AP 8132 450 Mbit/s White Power over Ethernet (PoE)

Specifications

42 specifications in 12 groups

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate450 Mbit/s
Wi-Fi data rate (max)450 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.412 - 5.825 GHz
Networking standardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Channel bandwidth40 MHz
MIMOYes
MIMO typeMulti User MIMO
Spread spectrum methodDSSS, OFDM
Wi-Fi Multimedia (WMM)/(WME)Yes
Dynamic Frequency Selection (DFS)Yes
Quality of Service (QoS) supportYes
Transmitting power24.7 dBmW

Security

Security algorithms802.1x RADIUS, WPA, WPA2
IP address filteringYes

Protocols

DHCP serverYes
DHCP clientYes
Supported network protocolsBOOTP, PPPoE, LLDP, DynDNS

Management features

Web-based managementYes

Ports & interfaces

Ethernet LAN (RJ-45) ports2
WAN connectionEthernet (RJ-45)
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
AC input voltage36 - 57 V
Power consumption (typical)30 W

Design

PlacementTable, Wall
Product colourWhite
LED indicatorsYes
InternalNo

Antenna

Antenna featuresDetachable antenna
Antennas quantity6
Antenna connector typeRP-SMA

Certificates

CertificationUL, cUL, IEC, RoHS, EN, FCC, CE

Weight & dimensions

Width152 mm
Depth229 mm
Height41 mm
Weight1.45 kg

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)0 - 50 °C

Logistics data

Harmonized System (HS) code85176990
