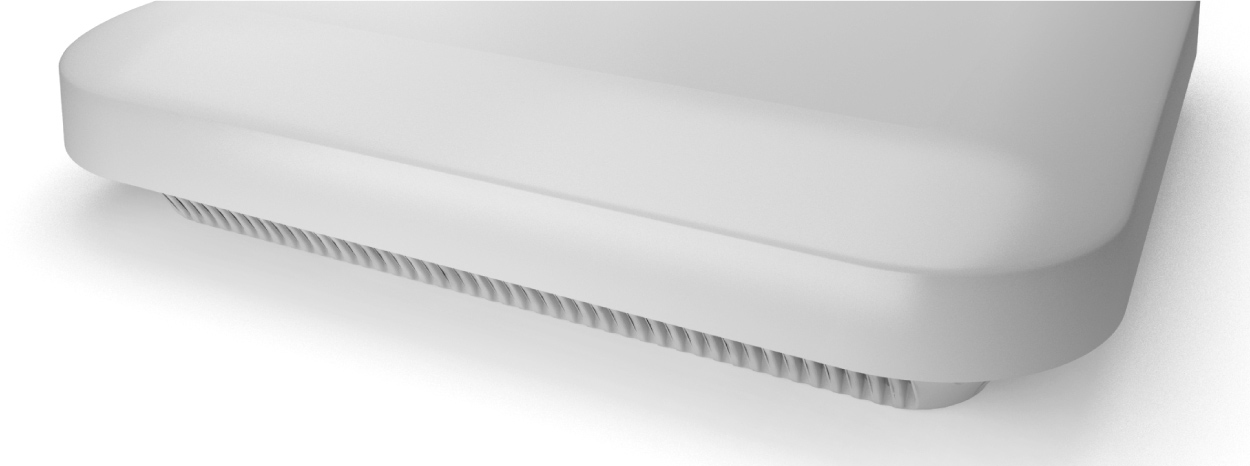

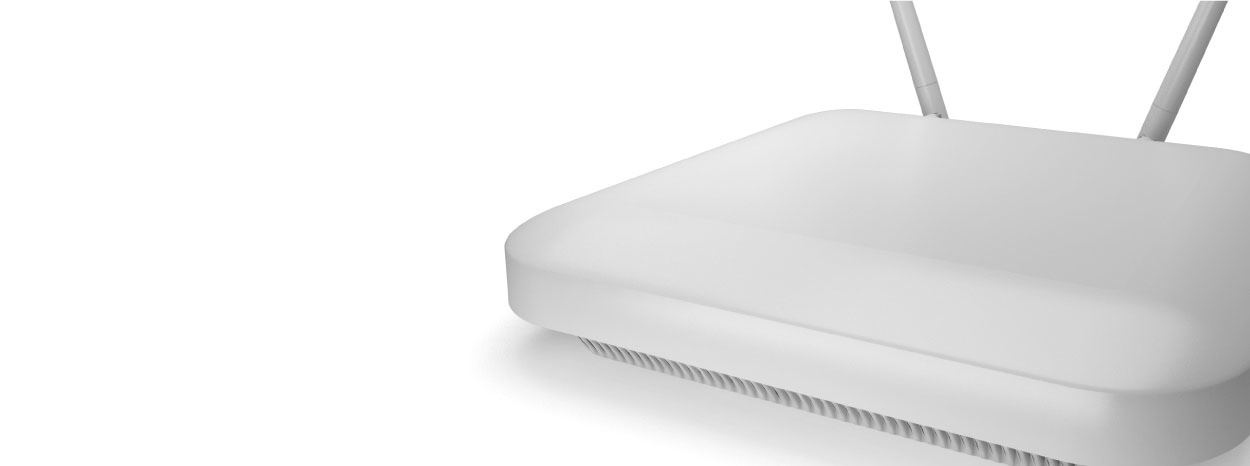

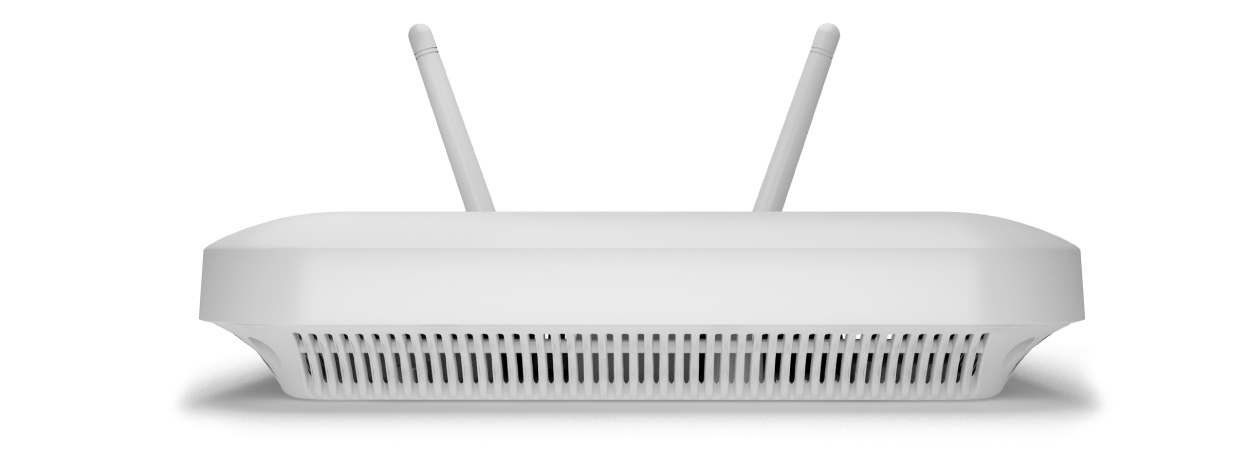

Zebra AP 7522E

Zebra AP 7522E

Model AP 7522EPart no. AP-7522E-67040-EUEAN 644728011001

27 specifications

Speed300 Mbit/s
Weight820 g
ColourWhite
2.4 GHzYes
Security algorithms802.1x RADIUS, WPA, WPA2
Width165 mm

See all specifications

Overview

Speed: 300 Mbit/s
Weight: 820 g
Colour: White
2.4 GHz: Yes
Security algorithms: 802.1x RADIUS, WPA, WPA2
Width: 165 mm

Brand: Zebra
Category: Wireless Access Point
Model: AP 7522E
Part numbers: AP-7522E-67040-EU, AP-7522E-67030-EU, AP7522E
EAN / UPC: 644728011001, 644728010974, 8432983088737, 5711783147954
Also known as: Motorola AP 7522E 300 Mbit/s White Power over Ethernet (PoE)

Specifications

27 specifications in 8 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5.85 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n
Modulation	256-QAM
Quality of Service (QoS) support	Yes

Security

Specification	Value
Security algorithms	802.1x RADIUS, WPA, WPA2
Security features	Stateful packet inspection (SPI), Network address translation (NAT)
IP address filtering	Yes

Protocols

Specification	Value
DHCP server	Yes
DHCP client	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Power consumption (typical)	12 W

Design

Specification	Value
Product colour	White
LED indicators	Activity
Internal	No

Certificates

Specification	Value
Certification	- FCC, ICES 003, EN 55024 - UL 60950-1, EN 60950-1, IEC 60950-1, UL2043, cUL 60950-1, RoHS - EN 300 328, EN 301 893 - FCC (USA), EU, TELEC

Weight & dimensions

Specification	Value
Width	165 mm
Depth	180 mm
Height	41 mm
Weight	820 g

Operational conditions

Specification	Value
Operating relative humidity (H-H)	0 - 85%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
