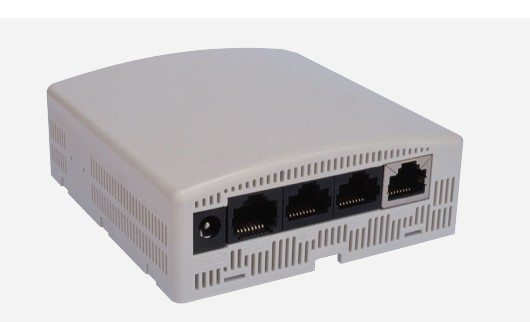

Zebra AP 7502 802.11ac

Zebra AP 7502 802.11ac

Model AP 7502 802.11acPart no. AP-7502-67030-EUEAN 644728010837

25 specifications

Speed1000 Mbit/s
Weight230 g
ColourGrey
2.4 GHzYes
Security algorithmsWPA2
Ethernet LAN (RJ-45) ports4

See all specifications

Overview

Speed: 1000 Mbit/s
Weight: 230 g
Colour: Grey
2.4 GHz: Yes
Security algorithms: WPA2
Ethernet LAN (RJ-45) ports: 4

Brand: Zebra
Category: Wireless Access Point
Model: AP 7502 802.11ac
Part number: AP-7502-67030-EU
EAN / UPC: 644728010837
Also known as: Motorola AP 7502 802.11ac 1000 Mbit/s Grey Power over Ethernet (PoE)

Specifications

25 specifications in 8 groups

Features

Specification	Value
2.4 GHz	Yes
Maximum data transfer rate	1000 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4, 5.2 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Quality of Service (QoS) support	Yes
Receiver sensitivity	2.4GHz band: -96dBm @ 1Mbps; -74dBm @ MCS7 40mHz 5.2GHz band: -95dBm @ 6Mbps; -73dBm @ MCS7 40MHz

Security

Specification	Value
Security algorithms	WPA2
IP address filtering	Yes

Protocols

Specification	Value
DHCP server	Yes
DHCP client	Yes
Management protocols	SSH, HTTPS, SNMPv3

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Power consumption (typical)	6.5 W

Design

Specification	Value
Product colour	Grey
LED indicators	Yes
Internal	No

Weight & dimensions

Specification	Value
Width	95 mm
Depth	90 mm
Height	35 mm
Weight	230 g

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
