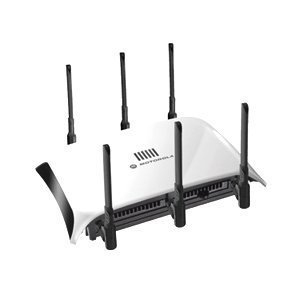

Zebra Motorola AP-7131N 300 Mbit/s Power over Ethernet (PoE)

Zebra Motorola AP-7131N 300 Mbit/s Power over Ethernet (PoE)

Model AP-7131NPart no. AP-7131N-66S70-WR

28 specifications
  • Speed300 Mbit/s
  • Weight1.21 kg
  • Security algorithms802.1x RADIUS, WPA, WPA2
  • DHCP serverYes
  • Ethernet LAN (RJ-45) ports2
  • Dimensions (WxDxH)139.7 x 203.2 x 38.1 mm
See all specifications

Overview

Speed
300 Mbit/s
Weight
1.21 kg
Security algorithms
802.1x RADIUS, WPA, WPA2
DHCP server
Yes
Ethernet LAN (RJ-45) ports
2
Dimensions (WxDxH)
139.7 x 203.2 x 38.1 mm
Brand
Zebra
Model
AP-7131N
Part numbers
AP-7131N-66S70-WR, AP-7131N-66S78-WW, AP-7131N-66E48-WW, AP-7131N-66E40-WR
Also known as
Motorola AP-7131N 300 Mbit/s Power over Ethernet (PoE)

Specifications

28 specifications in 10 groups

Features

Maximum data transfer rate300 Mbit/s
Frequency band2.412 - 2.484 GHz
Networking standardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology10/100/1000Base-T(X)
Channels quantity14 channels
Quality of Service (QoS) supportYes

Security

Security algorithms802.1x RADIUS, WPA, WPA2

Protocols

DHCP serverYes
DHCP clientYes
Management protocolsSSH, SNMP v1/v2/v3

Ports & interfaces

Ethernet LAN (RJ-45) ports2
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
AC input voltage48 V
Input current0.6 A
Power supply typeDC

Design

LED indicatorsYes
InternalNo

Certificates

CertificationUL/cUL 60950-1, IEC EN60950-1, UL2043, RoHS, FCC, CE, TELEC

Weight & dimensions

Dimensions (WxDxH)139.7 x 203.2 x 38.1 mm
Weight1.21 kg

Other features

Compliance industry standardsIEEE 802.11n, 802.11g, IEEE 802.11b
Operating temperature (T-T)-4 - 122 °F
Transmit power range23 - 23 dBmW

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)-20 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating altitude0 - 2438 m
