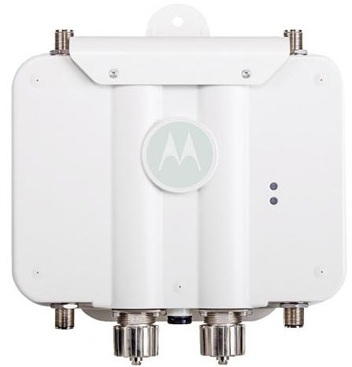

Zebra AP 6562

Zebra AP 6562

Model AP 6562Part no. AP-6562-66030-EUEAN 644728010523

26 specifications

Speed300 Mbit/s
Weight1.32 kg
2.4 GHzYes
InternalNo
Antenna featuresIntegrated antenna
Width248.9 mm

See all specifications

Overview

Speed: 300 Mbit/s
Weight: 1.32 kg
2.4 GHz: Yes
Internal: No
Antenna features: Integrated antenna
Width: 248.9 mm

Brand: Zebra
Category: Wireless Access Point
Model: AP 6562
Part numbers: AP-6562-66030-EU, AP-6562-66040-EU, AP-6562-66030-WR
EAN / UPC: 644728010523, 644728010493, 5712505724132
Also known as: Motorola AP 6562 300 Mbit/s Power over Ethernet (PoE)

Specifications

26 specifications in 9 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	300 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4, 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Channels quantity	13 channels
Spread spectrum method	DSSS
Modulation	OFDM
VLAN support	Yes

Ports & interfaces

Specification	Value
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
AC input voltage	36 - 57 V

Design

Specification	Value
Internal	No

Antenna

Specification	Value
Antenna features	Integrated antenna

Certificates

Specification	Value
Certification	EN, IEC, UL, cUL, TUV, FCC, CE

Weight & dimensions

Specification	Value
Width	248.9 mm
Depth	231.1 mm
Height	66 mm
Weight	1.32 kg

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 85 °C
Non-operating altitude	0 - 9144 m
Operating altitude	0 - 2438 m

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
