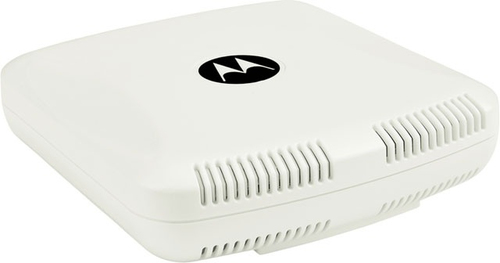

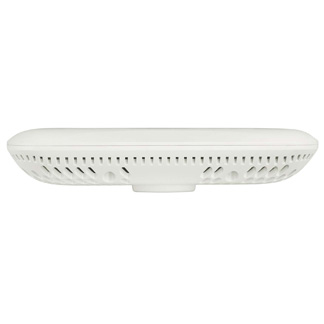

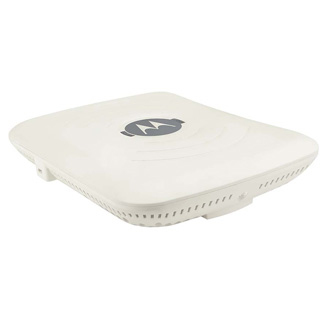

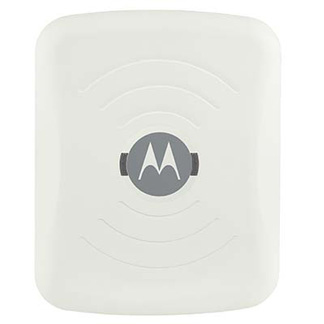

Zebra AP 6532

Zebra AP 6532

Model AP 6532Part no. AP-6532-66030-WREAN 5711045719899

28 specifications
  • Speed300 Mbit/s
  • Weight910 g
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports1
  • LED indicatorsPower
  • Dimensions (WxDxH)189.16 x 241.3 x 43.6 mm
See all specifications

Overview

Speed
300 Mbit/s
Weight
910 g
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
1
LED indicators
Power
Dimensions (WxDxH)
189.16 x 241.3 x 43.6 mm
Brand
Zebra
Model
AP 6532
Part numbers
AP-6532-66030-WR, AP-6532-66030-EU, AP-6532-66040-EU
EAN / UPC
5711045719899
Also known as
Motorola AP 6532 300 Mbit/s Power over Ethernet (PoE)

Specifications

28 specifications in 7 groups

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.4, 5 GHz
Networking standardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Cabling technology10/100/1000Base-T(X)
Channels quantity14 channels

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
AC input voltage48 V
Input current0.27 A
Power consumption (typical)12.95 W

Design

LED indicatorsPower
InternalNo

Weight & dimensions

Dimensions (WxDxH)189.16 x 241.3 x 43.6 mm
Weight910 g

Other features

Supported data transfer rates1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, 54, 300
Compliance industry standardsIEEE 802.11 a/b/g/n
Networking featuresGigabit Ethernet
Operating temperature (T-T)32 - 122 °F
Transmit power range24 - 24 dBmW
Wireless technology802.11 a/b/g/n

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating altitude2438 - 2438 m
Storage relative humidity (H-H)5 - 95%
