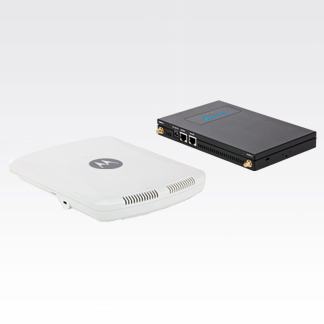

Zebra AP 6522E

Zebra AP 6522E

Model AP 6522EPart no. AP-6522E-66030-WR

31 specifications
  • Speed1000 Mbit/s
  • Weight385 g
  • ColourBlack, White
  • 2.4 GHzYes
  • Antenna featuresIntegrated antenna
  • Width190.5 mm
See all specifications

Overview

Speed
1000 Mbit/s
Weight
385 g
Colour
Black, White
2.4 GHz
Yes
Antenna features
Integrated antenna
Width
190.5 mm
Brand
Zebra
Model
AP 6522E
Part number
AP-6522E-66030-WR
Also known as
Motorola AP 6522E 1000 Mbit/s Black, White Power over Ethernet (PoE)

Specifications

31 specifications in 8 groups

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate1000 Mbit/s
Wi-Fi data rate (max)300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.4 - 5.85 GHz
Networking standardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Number of WLAN connections (max)4095
VLAN supportYes
Quality of Service (QoS) supportYes
Transmitting power21 dBmW

Management features

Web-based managementYes

Power

Power over Ethernet (PoE)Yes
AC input voltage12 - 48 V
Input current0.25 - 1 A
Power consumption (typical)12 W

Design

Product colourBlack, White
LED indicatorsYes
InternalNo

Antenna

Antenna featuresIntegrated antenna

Certificates

CertificationFCC, CE, TELEC, UL, cUL, EN, TUV

Weight & dimensions

Width190.5 mm
Depth241.3 mm
Height27.8 mm
Weight385 g

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 85 °C
Non-operating altitude0 - 9144 m
Operating altitude0 - 2438.4 m
Storage relative humidity (H-H)0 - 85%
