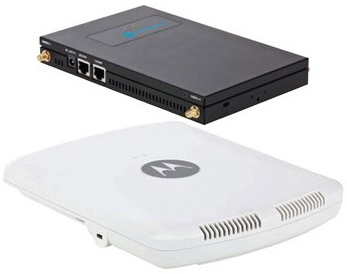

Zebra AP 6522

Zebra AP 6522

Model AP 6522Part no. AP-6522-66040-WREAN 5712505289396

28 specifications

Speed300 Mbit/s
Weight385 g
2.4 GHzYes
Antenna featuresIntegrated antenna
Width240 mm
Operating relative humidity (H-H)5 - 95%

See all specifications

Overview

Speed: 300 Mbit/s
Weight: 385 g
2.4 GHz: Yes
Antenna features: Integrated antenna
Width: 240 mm
Operating relative humidity (H-H): 5 - 95%

Brand: Zebra
Category: Wireless Access Point
Model: AP 6522
Part numbers: AP-6522-66040-WR, AP-6522-66030-EU, AP-6522-66040-EU
EAN / UPC: 5712505289396, 080479970165, 4054843745617, 5052183158295 +5 more
Also known as: Motorola AP 6522 300 Mbit/s Power over Ethernet (PoE)

Specifications

28 specifications in 9 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	300 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4, 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Spread spectrum method	DSSS
Modulation	OFDM
VLAN support	Yes

Ports & interfaces

Specification	Value
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
AC input voltage	12 - 48 V
Input current	1 A
Power consumption (typical)	12 W

Design

Specification	Value
LED indicators	Yes
Internal	No

Antenna

Specification	Value
Antenna features	Integrated antenna

Certificates

Specification	Value
Certification	UL, cUL, EN, TUV, FCC, CE

Weight & dimensions

Specification	Value
Width	240 mm
Depth	190 mm
Height	30 mm
Weight	385 g

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 85 °C
Non-operating altitude	0 - 9100 m
Operating altitude	0 - 2400 m

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
