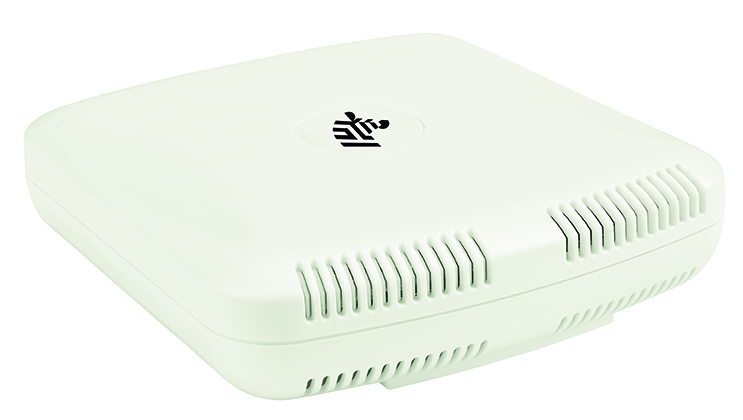

Zebra AP 6521E

Zebra AP 6521E

Model AP 6521EPart no. AP6521E

36 specifications

Speed1000 Mbit/s
Weight1.14 kg
ColourWhite
2.4 GHzYes
USB 2.0 ports quantity0
AC input voltage48 V

See all specifications

Overview

Speed: 1000 Mbit/s
Weight: 1.14 kg
Colour: White
2.4 GHz: Yes
USB 2.0 ports quantity: 0
AC input voltage: 48 V

Brand: Zebra
Category: Wireless Access Point
Model: AP 6521E
Part number: AP6521E
Also known as: Zebra AP 6521E 1000 Mbit/s White

Specifications

36 specifications in 8 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1000 Mbit/s
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5 GHz
Bandwidth	5.2 GHz
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Number of users	25 user(s)
Modulation	DSSS, OFDM
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Transmitting power	27 dBmW

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes

Power

Specification	Value
AC input voltage	48 V
Power consumption (typical)	10 W
Power consumption (max)	12.95 W

Design

Specification	Value
Product colour	White
LED indicators	Activity, Power
Internal	No

Antenna

Specification	Value
Antenna features	Detachable antenna
Antennas quantity	2
Antenna gain level (max)	6 dBi
Antenna connector type	RP-SMA

Certificates

Specification	Value
Certification	UL 60950, cUL, EU EN 60950, TUV and UL 2043 (external antenna)

Weight & dimensions

Specification	Value
Width	1397 mm
Depth	1524 mm
Height	411 mm
Weight	1.14 kg

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	32 - 104 °C
Storage temperature (T-T)	-40 - 158 °C
Operating altitude	0 - 2438 m
