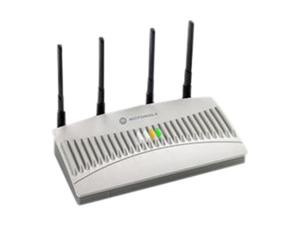

Motorola AP-5131 54 Mbit/s
Model AP-5131Part no. AP-5131-13040-D-WREAN 5052217241405
25 specifications
- Speed54 Mbit/s
- Weight884 g
- 2.4 GHzYes
- Security algorithmsWPA2
- Ethernet LAN (RJ-45) ports2
- Power over Ethernet (PoE)No
Overview
- Speed
- 54 Mbit/s
- Weight
- 884 g
- 2.4 GHz
- Yes
- Security algorithms
- WPA2
- Ethernet LAN (RJ-45) ports
- 2
- Power over Ethernet (PoE)
- No
- Brand
- Zebra
- Category
- Wireless Access Point
- Model
- AP-5131
- Part numbers
- AP-5131-13040-D-WR, AP-5131-13042-WW, AP-5131-13040-WW, AP-5131-40020-D-WR
- EAN / UPC
- 5052217241405
- Also known as
- Motorola AP-5131 54 Mbit/s
Specifications
25 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| Maximum data transfer rate | 54 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.4 GHz |
| Cabling technology | 10/100Base-T(X) |
| Channels quantity | 35 channels |
| Spread spectrum method | DSSS |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| WAN connection | Ethernet (RJ-45) |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
| Power requirements | 48 V, 200 mA |
| Power supply type | DC |
Design
| Specification | Value |
|---|---|
| Internal | No |
Certificates
| Specification | Value |
|---|---|
| Certification | UL/cUL 60950-1, IEC EN60950-1, UL2043, TUV GS, RoHS. |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 45 x 240 x 135 mm |
| Weight | 884 g |
Other features
| Specification | Value |
|---|---|
| Supported data transfer rates | 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 MB/s |
| Compliance industry standards | IEEE 802.11a/b/g, WPA2, WMM |
| Wireless technology | IEEE 802.11a/b/g, IEEE 802.3 |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating altitude | 0 - 2438 m |
