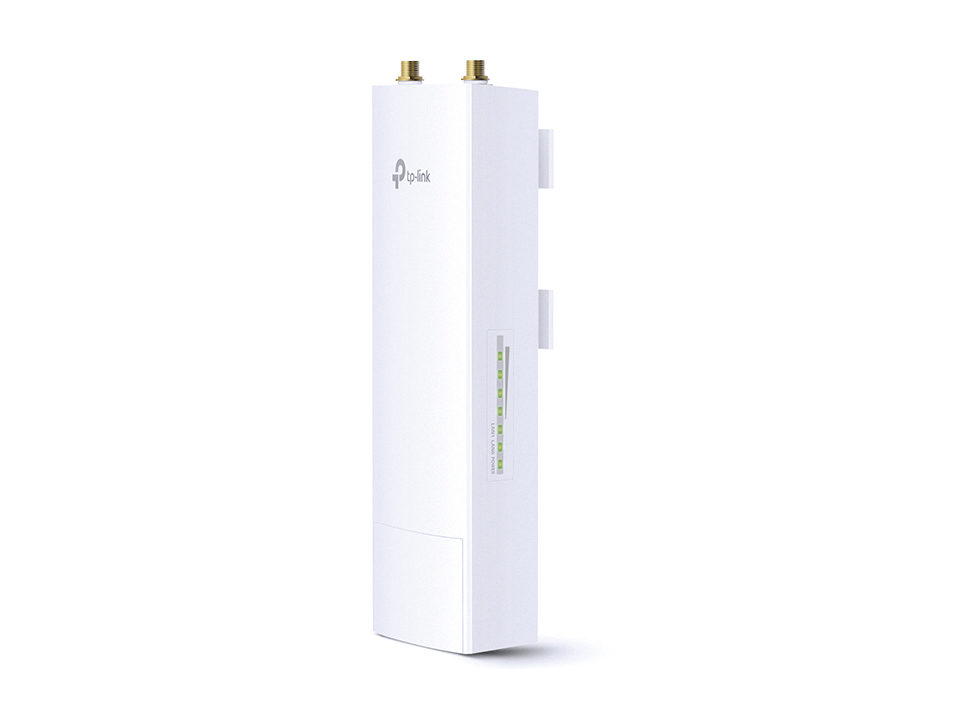

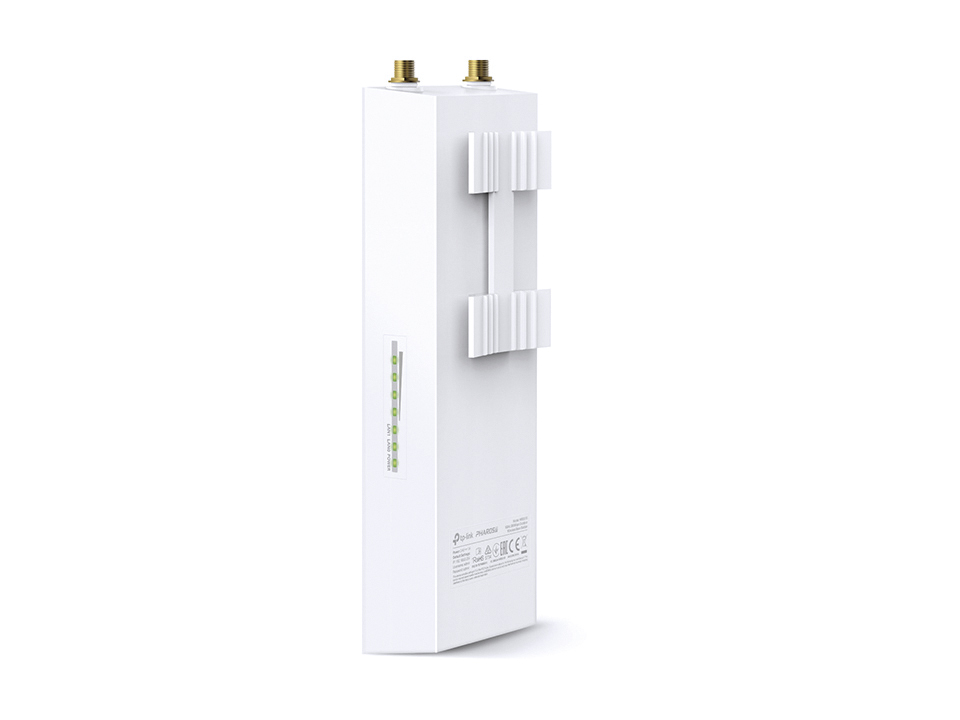

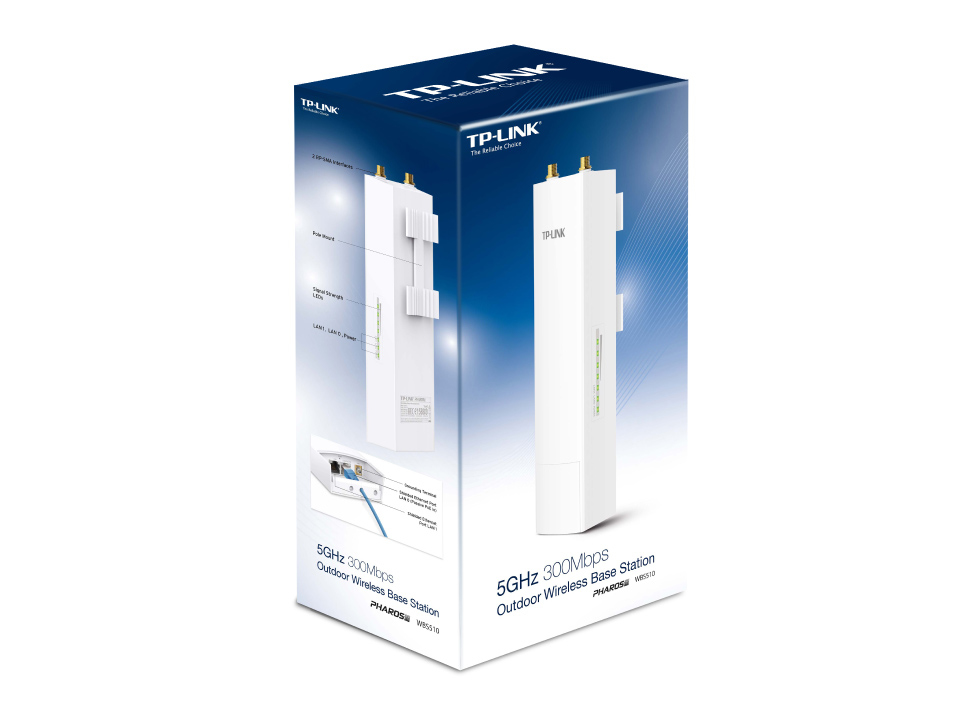

TP-Link 5GHz 300Mbps Outdoor Wireless Base Station
Model WBS510Part no. WBS510 V1EAN 845973092443
53 specifications
- ProcessorQualcomm Atheros AR9350B
- Memory64 MB
- Speed300 Mbit/s
- ColourWhite
- 2.4 GHzNo
- MAC address filteringYes
Overview
- Processor
- Qualcomm Atheros AR9350B
- Memory
- 64 MB
- Speed
- 300 Mbit/s
- Colour
- White
- 2.4 GHz
- No
- MAC address filtering
- Yes
- Brand
- TP-Link
- Category
- Wireless Access Point
- Model
- WBS510
- Part numbers
- WBS510 V1, WBS510
- EAN / UPC
- 845973092443, 6935364092443, 6935364092641
- Also known as
- TP-Link 5GHz 300Mbps Outdoor Wireless Base Station
Specifications
53 specifications in 14 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | No |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 300 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 5.15 - 5.85 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSH, WPA2, WPA2-AES, 64-bit WEP, WPA2-PSK, 128-bit WEP, WPA2-TKIP, 152-bit WEP, WPA, WPA-AES, WPA-PSK, WPA-TKIP |
| Security features | Stateful packet inspection (SPI), Ping forbidden, VPN, DOS protection |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| VPN support | L2TP, PPTP |
Protocols
| Specification | Value |
|---|---|
| Universal Plug and Play (UPnP) | Yes |
| Management protocols | HTTP/HTTPS, SNMP v2c, SSH, Dynamic DDNS, Pharos |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Syslog | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| DC voltage range | 16 - 27 V |
Design
| Specification | Value |
|---|---|
| Placement | Wall |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP65 |
| Reset button | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | External |
| Antenna direction type | Omni-directional |
| Antenna features | Detachable antenna |
| Antennas quantity | 2 |
| Antenna connector type | RP-SMA |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | Qualcomm Atheros AR9350B |
| Processor frequency | 560 MHz |
| Flash memory | 8 MB |
| Internal memory | 64 MB |
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 8, Windows 7, MAC OS, NetWare, UNIX, Linux. |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS, IP65 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 198 mm |
| Depth | 75 mm |
| Height | 40 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 270 mm |
| Package depth | 152 mm |
| Package height | 106 mm |
| Package weight | 770 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Reviews
No reviews of TP-Link 5GHz 300Mbps Outdoor Wireless Base Station yet. Have you used it? Tell others what you think.
Write a reviewCompare TP-Link 5GHz 300Mbps Outdoor Wireless Base Station
All wireless access point comparisons- TP-Link 5GHz 300Mbps Outdoor Wireless Base Station vsTP-Link 2.4GHz 300Mbps Outdoor Wireless Base StationCompare specs
- TP-Link 5GHz 300Mbps Outdoor Wireless Base Station vsTP-Link EAP110 300 Mbit/s White Power over Ethernet (PoE)Compare specs
- TP-Link 5GHz 300Mbps Outdoor Wireless Base Station vsTP-Link EAP120 wireless access point 300 Mbit/s White Power over Ethernet (PoE)Compare specs
- TP-Link 5GHz 300Mbps Outdoor Wireless Base Station vsTP-Link 2.4GHz 300Mbps 9dBi Outdoor CPECompare specs

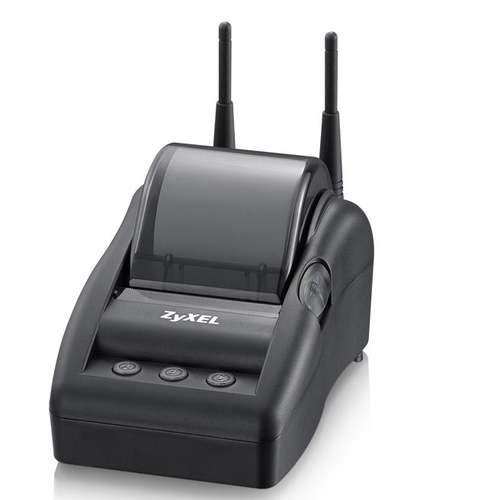

- TP-Link 5GHz 300Mbps Outdoor Wireless Base Station vsZyxel UAG50 300 Mbit/s BlackCompare specs

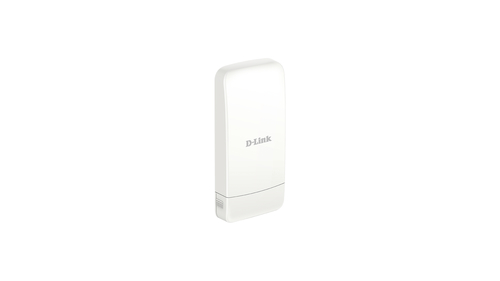

- TP-Link 5GHz 300Mbps Outdoor Wireless Base Station vsD-Link DAP-3320 wireless access point 300 Mbit/s White Power over Ethernet (PoE)Compare specs
- TP-Link 5GHz 300Mbps Outdoor Wireless Base Station vsD-Link 450 Mbit/s Grey Power over Ethernet (PoE)Compare specs

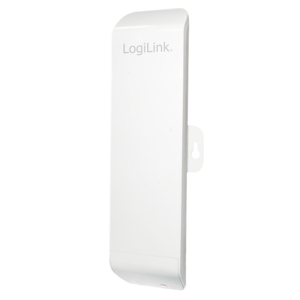

- TP-Link 5GHz 300Mbps Outdoor Wireless Base Station vsLogiLink WL0129A wireless access point 150 Mbit/s White Power over Ethernet (PoE)Compare specs
