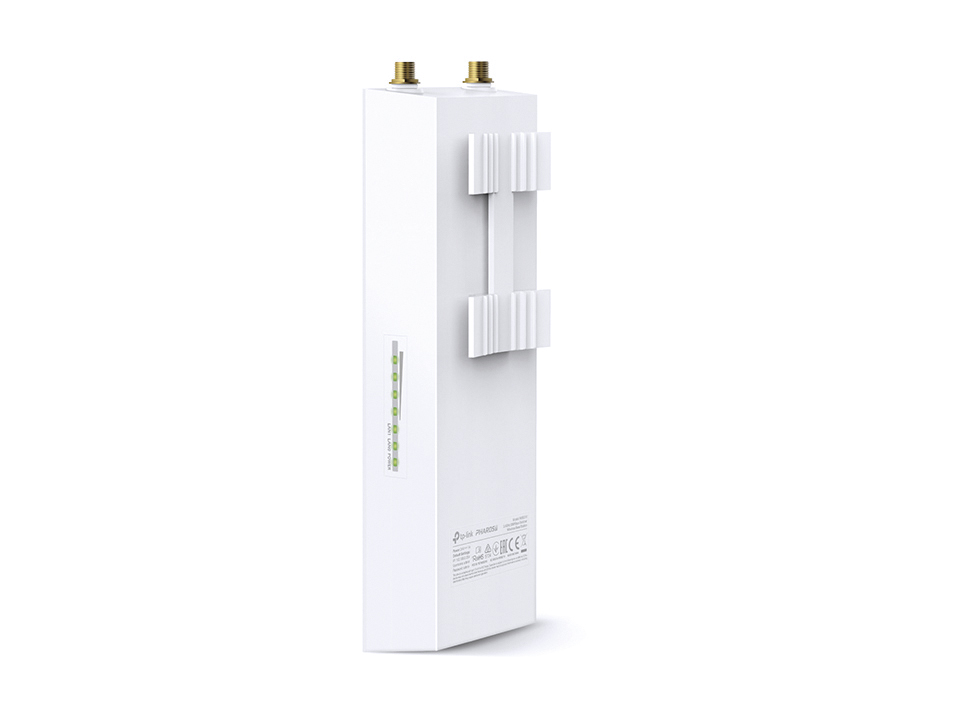

TP-Link 2.4GHz 300Mbps Outdoor Wireless Base Station

TP-Link 2.4GHz 300Mbps Outdoor Wireless Base Station

Model WBS210Part no. WBS210 V1EAN 845973092450

63 specifications

ProcessorQualcomm Atheros
Memory64 MB
Speed300 Mbit/s
ColourWhite
2.4 GHzYes
Ethernet LAN (RJ-45) ports2

See all specifications

Overview

Processor: Qualcomm Atheros
Memory: 64 MB
Speed: 300 Mbit/s
Colour: White
2.4 GHz: Yes
Ethernet LAN (RJ-45) ports: 2

Brand: TP-Link
Category: Wireless Access Point
Model: WBS210
Part numbers: WBS210 V1, WBS210
EAN / UPC: 845973092450, 6935364092450, 6935364092658
Also known as: TP-Link 2.4GHz 300Mbps Outdoor Wireless Base Station

Specifications

63 specifications in 14 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	No
6 GHz	No
Maximum data transfer rate	300 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	2.4 - 2.483 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Operating modes	Access Point (AP),Client Bridge,Repeater,Router,WISP
Quality of Service (QoS) support	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
Security features	Stateful packet inspection (SPI), Ping forbidden, VPN, DOS protection
MAC address filtering	Yes
IGMP snooping	Yes
VPN support	L2TP, PPTP

Protocols

Specification	Value
Universal Plug and Play (UPnP)	Yes
Management protocols	HTTP/HTTPS, SNMP v2c, SSH, Dynamic DDNS, Pharos

Management features

Specification	Value
Web-based management	Yes
Syslog	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	0

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
DC voltage range	16 - 27 V

Design

Specification	Value
Placement	Pole
Product colour	White
Housing material	Plastic
International Protection (IP) code	IP65
Reset button	Yes
Internal	No

Antenna

Specification	Value
Antenna type	External
Antenna direction type	Omni-directional
Antenna features	Detachable antenna
Antennas quantity	2
Antenna connector type	RP-SMA

Performance

Specification	Value
Built-in processor	Yes
Processor manufacturer	Qualcomm
Processor model	Qualcomm Atheros
Processor frequency	560 MHz
Processor architecture	MIPS 74Kc
Flash memory	8 MB
Internal memory	64 MB
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Certificates

Specification	Value
Certification	CE, FCC, RoHS, IP65

Weight & dimensions

Specification	Value
Width	198 mm
Depth	75 mm
Height	40 mm

Packaging data

Specification	Value
Package width	270 mm
Package depth	152 mm
Package height	106 mm
Package weight	800 g

Packaging content

Specification	Value
Quantity per pack	1 pc(s)
PoE adapter included	Yes
Cables included	AC
Mounting kit	Yes
Quick start guide	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
