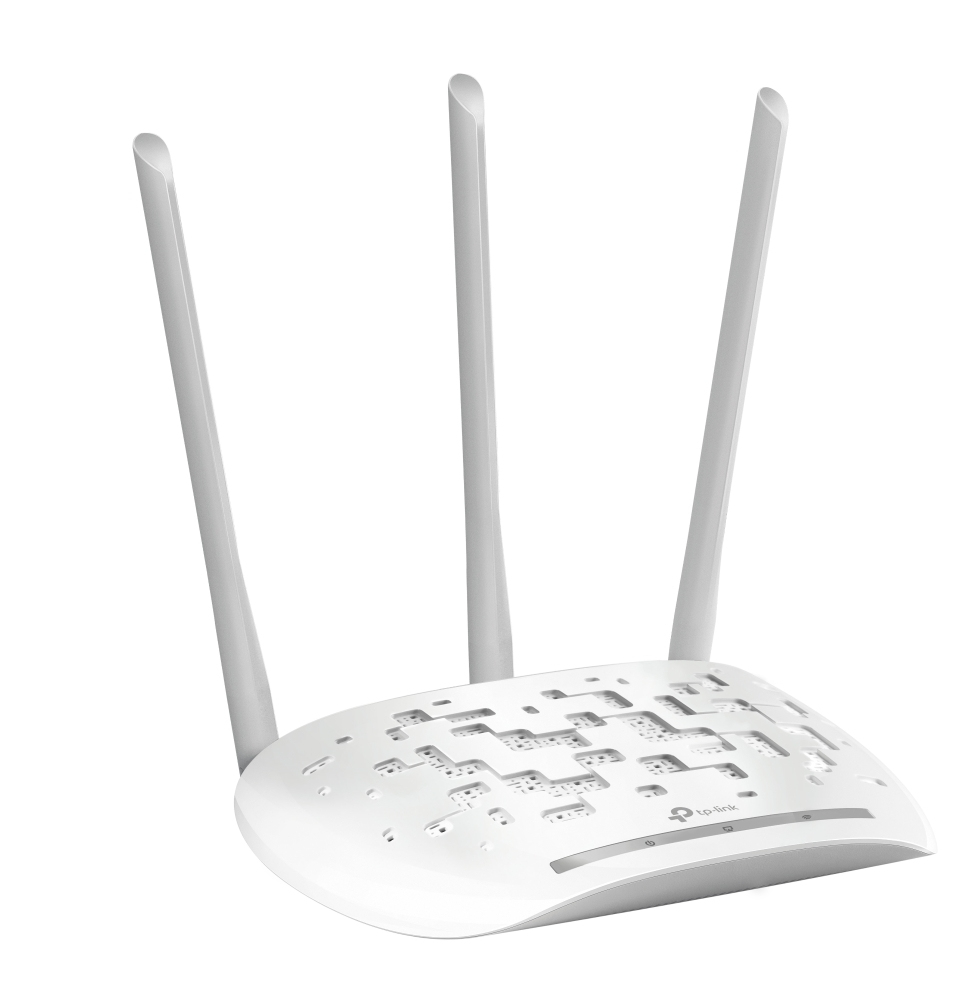

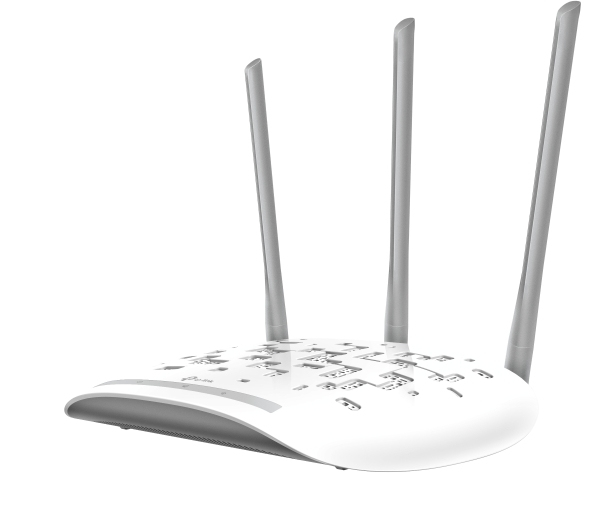

TP-Link 450Mbps Wireless N Access Point

450Mbps Wireless N Access Point

Model TL-WA901NPart no. TL-WA901N V1EAN 6935364052485

46 specifications

Speed450 Mbit/s
ColourWhite
2.4 GHzYes
Ethernet LAN (RJ-45) ports1
PlacementTable
Antenna typeExternal

See all specifications

Overview

Speed: 450 Mbit/s
Colour: White
2.4 GHz: Yes
Ethernet LAN (RJ-45) ports: 1
Placement: Table
Antenna type: External

Brand: TP-Link
Category: Wireless Access Point
Model: TL-WA901N
Part numbers: TL-WA901N V1, TL-WA901N
EAN / UPC: 6935364052485, 6935364052492, 845973099855
Also known as: TP-Link 450Mbps Wireless N Access Point

Specifications

46 specifications in 13 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	No
6 GHz	No
Maximum data transfer rate	450 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	2400-2483.5 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology	10/100Base-T(X)
Wi-Fi Multimedia (WMM)/(WME)	Yes
Quality of Service (QoS) support	Yes

Security

Specification	Value
Security algorithms	64-bit AES, 128-bit AES, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes

Protocols

Specification	Value
DHCP server	Yes
Management protocols	SNMP

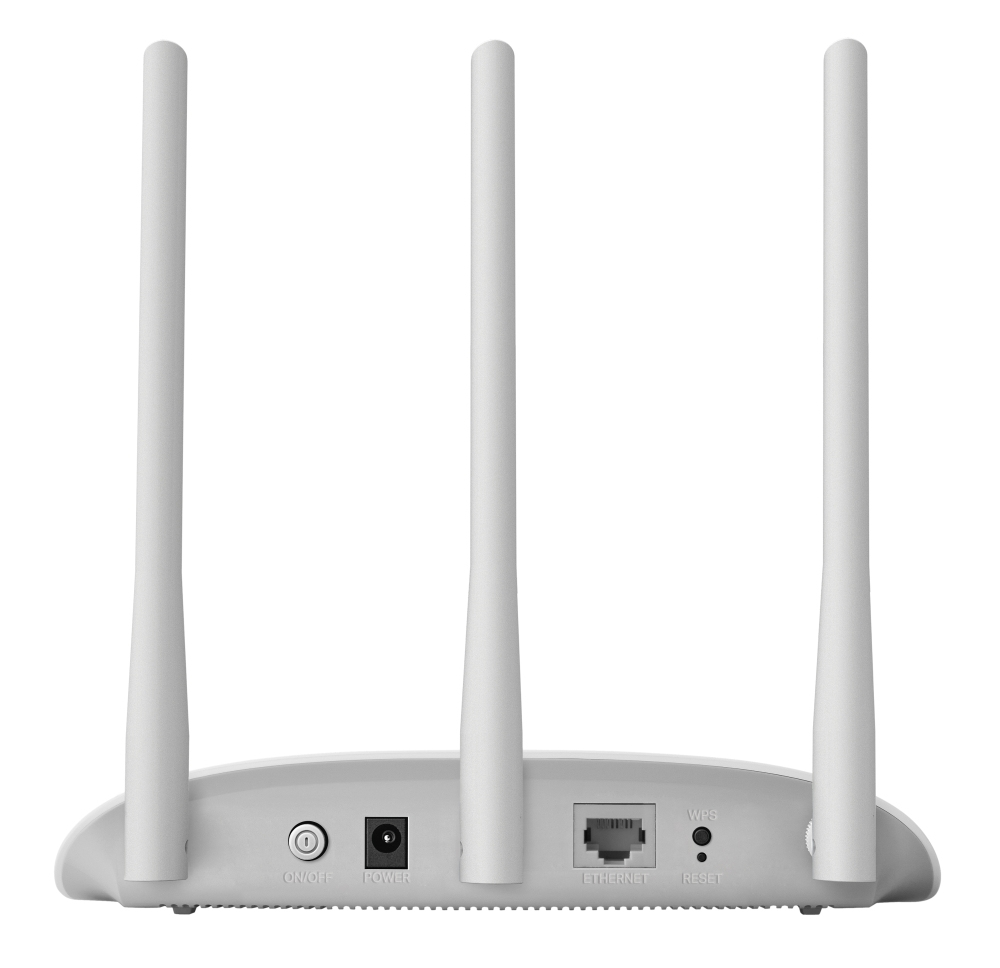

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
Output voltage	9 V
Output current	0.85 A

Design

Specification	Value
Placement	Table
Product colour	White
On/off switch	Yes
Reset button	Yes
WPS push button	Yes
LED indicators	Yes

Antenna

Specification	Value
Antenna type	External
Antenna direction type	Omni-directional
Antennas quantity	3

Performance

Specification	Value
Minimum system requirements	Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, , NetWare, UNIX or Linux , Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other , Java-enabled browser , Cable or DSL Modem , Subscription with an Internet Service Provider (for Internet access)

Weight & dimensions

Specification	Value
Width	194.8 mm
Depth	133.8 mm
Height	36.2 mm

Packaging data

Specification	Value
Package width	370 mm
Package depth	223 mm
Package height	70 mm
Package weight	660 g

Packaging content

Specification	Value
Quantity per pack	1 pc(s)
AC adapter included	Yes
PoE adapter included	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
