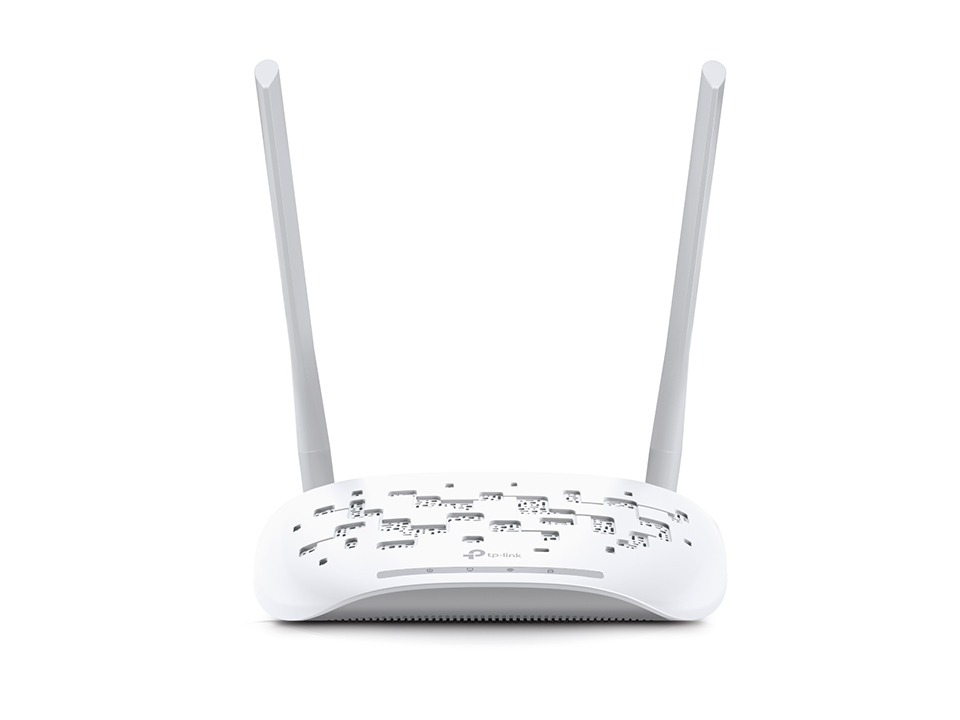

TP-Link 300Mbps Wireless N Access Point

TP-Link 300Mbps Wireless N Access Point

Model TL-WA801NDEAN 5054242105059

48 specifications
  • Speed300 Mbit/s
  • 2.4 GHzYes
  • Management protocolsSNMP
  • Ethernet LAN (RJ-45) ports1
  • PlacementTable
  • Antenna typeExternal
See all specifications

Overview

Speed
300 Mbit/s
2.4 GHz
Yes
Management protocols
SNMP
Ethernet LAN (RJ-45) ports
1
Placement
Table
Antenna type
External
Brand
TP-Link
Model
TL-WA801ND
Part numbers
TL-WA801ND, TL-WA801ND V1
EAN / UPC
5054242105059, 014444453865, 115970741669, 151902933474 +11 more
Also known as
TP-Link 300Mbps Wireless N Access Point

Specifications

48 specifications in 14 groups

Features

2.4 GHzYes
5 GHzNo
6 GHzNo
Maximum data transfer rate300 Mbit/s
Maximum data transfer rate (2.4 GHz)300 Mbit/s
Ethernet LAN data rates10,100 Mbit/s
Frequency band2.4 - 2.4835 GHz
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology10/100Base-T(X)
Modulation16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM
Wi-Fi Multimedia (WMM)/(WME)Yes
Quality of Service (QoS) supportYes
Receiver sensitivity270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER

Security

Security algorithms128-bit WEP, 152-bit WEP, 64-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
MAC address filteringYes

Protocols

Management protocolsSNMP

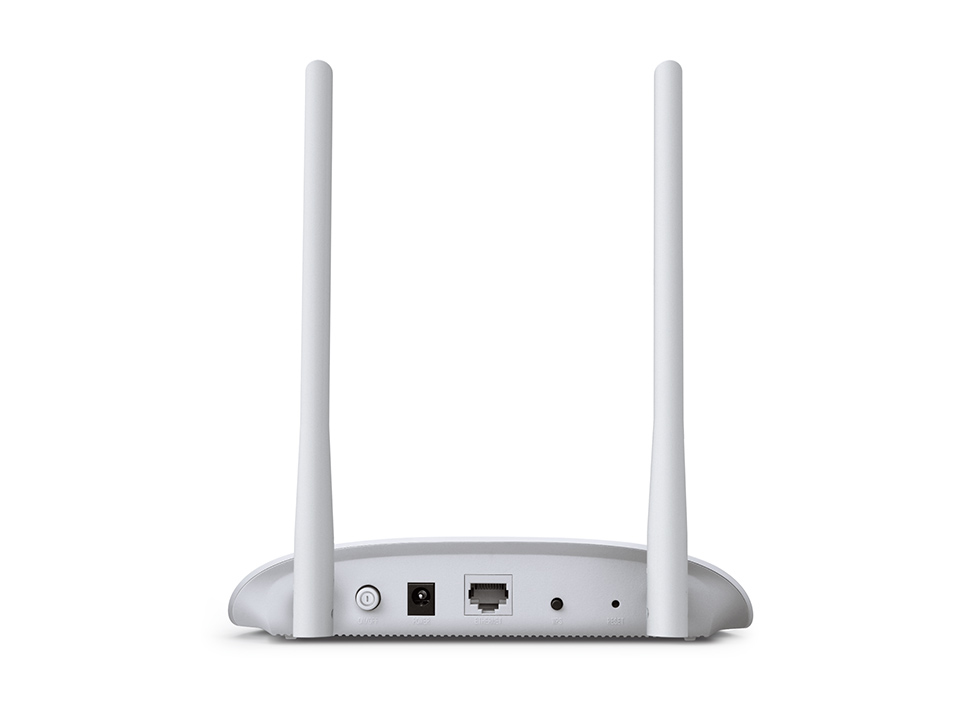

Ports & interfaces

Ethernet LAN (RJ-45) ports1
WAN connectionEthernet (RJ-45)

Power

Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedPassive PoE
Output voltage9 V
Output current0.6 A
Output power description9VDC / 0.85A

Design

PlacementTable
Reset buttonYes
LED indicatorsYes
InternalNo

Antenna

Antenna typeExternal
Antenna direction typeOmni-directional
Antenna featuresDetachable antenna
Antennas quantity2
Antenna gain level (max)5 dBi
Antenna connector typeRP-SMA

Performance

Compatible operating systemsWindows 98SE, NT, 2000, XP, Vista, 7 MAC OS NetWare UNIX Linux

Certificates

CertificationCE, FCC, RoHS

Weight & dimensions

Width181 mm
Depth125 mm
Height36 mm

Packaging data

Package width310 mm
Package depth223 mm
Package height70 mm
Package weight600 g

Packaging content

AC adapter includedYes

Other features

Transmit power range0 - 20 dBmW

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
