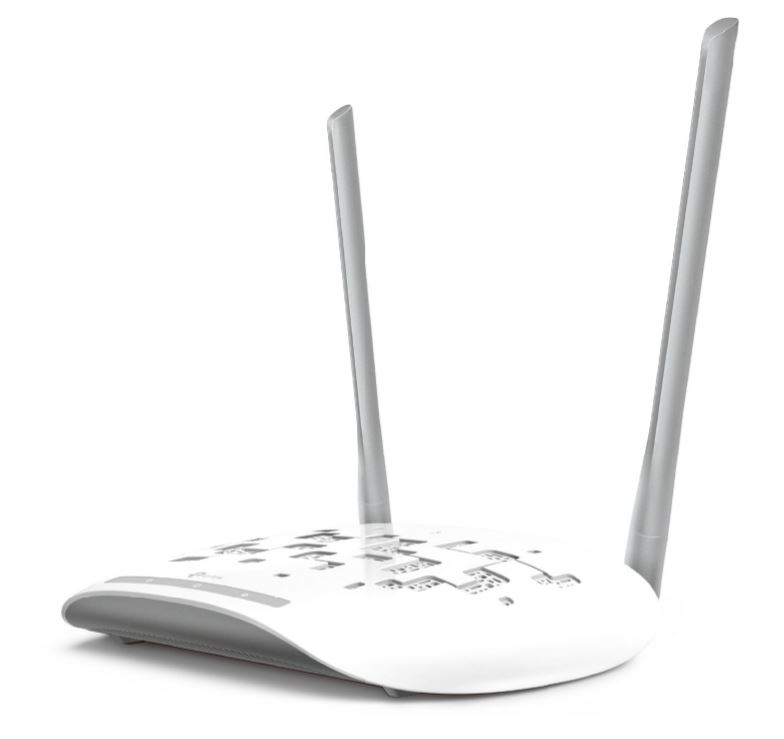

TP-Link 300Mbps Wireless N Access Point

300Mbps Wireless N Access Point

Model TL-WA801NEAN 6935364052461

51 specifications

Speed300 Mbit/s
ColourWhite
2.4 GHzYes
Ethernet LAN (RJ-45) ports1
PlacementTable
Antenna typeExternal

See all specifications

Overview

Speed: 300 Mbit/s
Colour: White
2.4 GHz: Yes
Ethernet LAN (RJ-45) ports: 1
Placement: Table
Antenna type: External

Brand: TP-Link
Category: Wireless Access Point
Model: TL-WA801N
Part numbers: TL-WA801N, TL-WA801N V1
EAN / UPC: 6935364052461, 6935364052478, 840460605243, 845973099831 +1 more
Also known as: TP-Link 300Mbps Wireless N Access Point

Specifications

51 specifications in 13 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	No
6 GHz	No
Maximum data transfer rate	300 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	2.4-2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Automatic channel scanning	Yes
Automatic channel selection	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Quality of Service (QoS) support	Yes
Transmitting power (CE)	15 dBm
Transmitting power (FCC)	20 dBm
Receiver sensitivity	11g 6Mbps: -90dBm 11g 54Mbps: -77dBm 11n HT20 MC7: -73dBm 11n HT40 MC7: -70dBm

Security

Specification	Value
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

Management features

Specification	Value
Firmware upgradeable	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
Output voltage	9 V
Output current	0.6 A

Design

Specification	Value
Placement	Table
Product colour	White
Reset button	Yes
WPS push button	Yes

Antenna

Specification	Value
Antenna type	External
Antenna direction type	Omni-directional
Antennas quantity	2

Certificates

Specification	Value
Certification	CE, FCC, RoHS

Weight & dimensions

Specification	Value
Width	181.6 mm
Depth	129.7 mm
Height	34.7 mm

Packaging data

Specification	Value
Package width	310 mm
Package depth	223 mm
Package height	70 mm
Package weight	560 g
Package type	Box

Packaging content

Specification	Value
Quantity per pack	1 pc(s)
AC adapter included	Yes
PoE adapter included	Yes
Cables included	LAN (RJ-45)
Quick start guide	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
