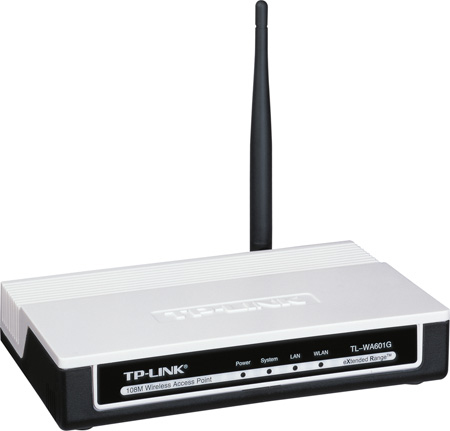

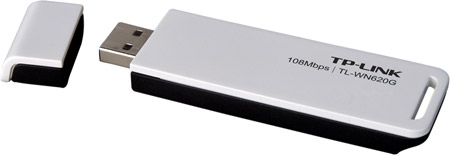

TL-WA601G + TL-WN620G
Model TL-WA601G + TL-WN620GPart no. TL-WA601G+TL-WN620G
25 specifications
- Speed108 Mbit/s
- 2.4 GHzYes
- Supported network protocolsIEEE 802.11g, IEEE 802.11b
- Ethernet LAN (RJ-45) ports1
- Power consumption (typical)7.2 W
- Antenna gain level (max)4 dBi
Overview
- Speed
- 108 Mbit/s
- 2.4 GHz
- Yes
- Supported network protocols
- IEEE 802.11g, IEEE 802.11b
- Ethernet LAN (RJ-45) ports
- 1
- Power consumption (typical)
- 7.2 W
- Antenna gain level (max)
- 4 dBi
- Brand
- TP-Link
- Category
- Wireless Access Point
- Model
- TL-WA601G + TL-WN620G
- Part number
- TL-WA601G+TL-WN620G
- Also known as
- TP-Link TL-WA601G + TL-WN620G 108 Mbit/s
Specifications
25 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| Maximum data transfer rate | 108 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.4 GHz |
| Bandwidth | 2.4 GHz |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit WEP, 64-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | IEEE 802.11g, IEEE 802.11b |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 7.2 W |
| Power requirements | 9VDC, 0.8A |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna gain level (max) | 4 dBi |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 158 x 110 x 32 mm |
Other features
| Specification | Value |
|---|---|
| Maximum operating distance | 830 m |
| Transmit power range | 20dBm |
| Wireless range | 830 m |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
