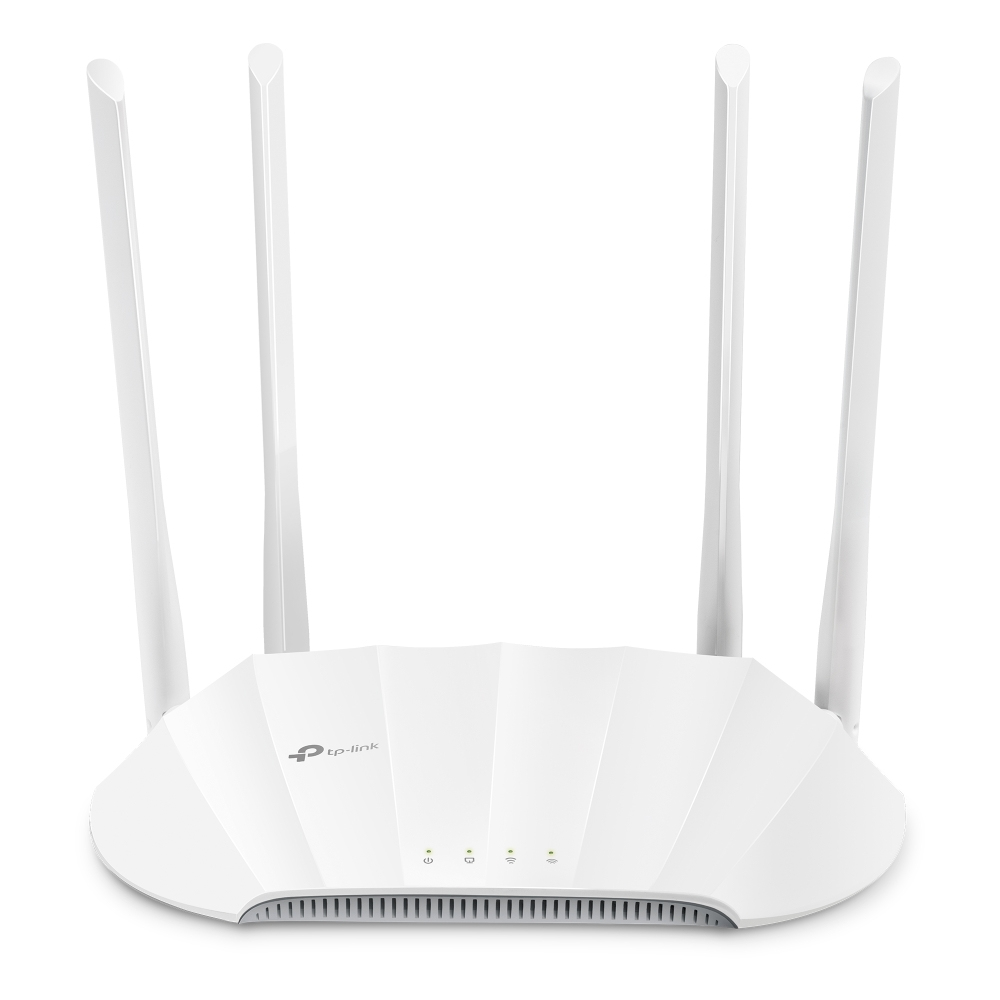

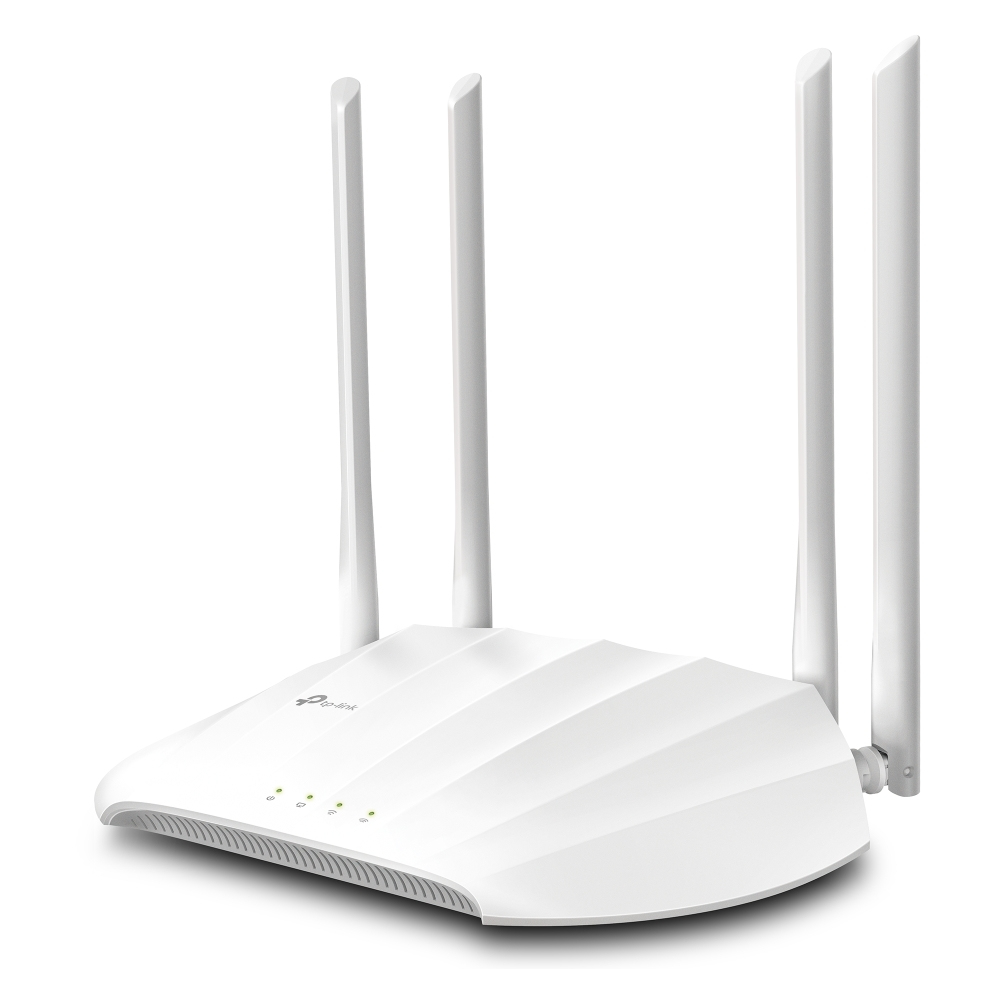

TL-WA1801(EU) wireless access point 1201 Mbit/s White Power over Ethernet (PoE)
Model TL-WA1801(EU)
40 specifications
- Speed1201 Mbit/s
- ColourWhite
- 2.4 GHzYes
- Service Set Identifier (SSID) featuresMultiple SSIDs
- Ethernet LAN (RJ-45) ports1
- PlacementTable
Overview
- Speed
- 1201 Mbit/s
- Colour
- White
- 2.4 GHz
- Yes
- Service Set Identifier (SSID) features
- Multiple SSIDs
- Ethernet LAN (RJ-45) ports
- 1
- Placement
- Table
- Brand
- TP-Link
- Category
- Wireless Access Point
- Model
- TL-WA1801(EU)
- Part number
- TL-WA1801(EU)
- Also known as
- TP-Link TL-WA1801(EU) wireless access point 1201 Mbit/s White Power over Ethernet (PoE)
Specifications
40 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1201 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | SNMP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3 |
| Service Set Identifier (SSID) features | Multiple SSIDs |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
| DHCP client | Yes |
| Supported protocols | IPv4, IPv6 |

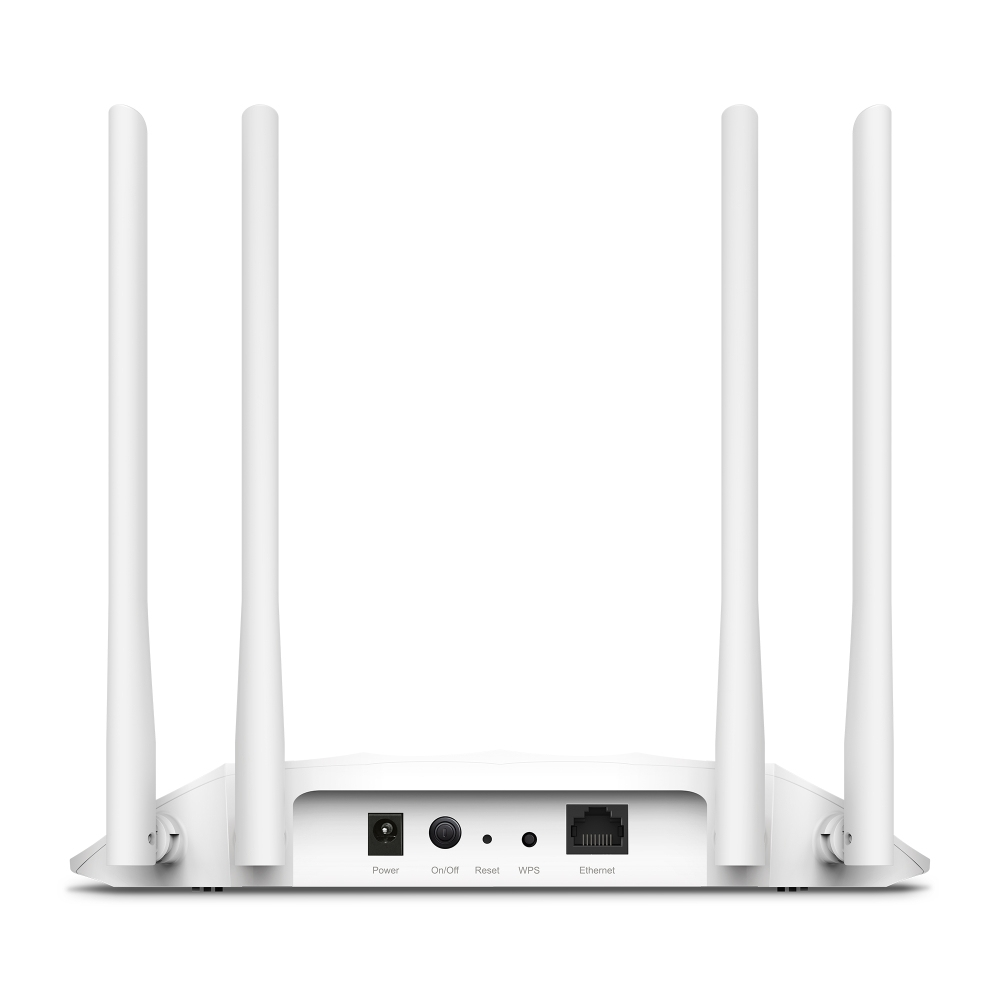

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| DC voltage range | 48 V |
| Input current | 0.375 A |
Design
| Specification | Value |
|---|---|
| Placement | Table |
| Product colour | White |
| On/off switch | Yes |
| Reset button | Yes |
| WPS push button | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | External |
| Antennas quantity | 4 |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 225 mm |
| Depth | 145.5 mm |
| Height | 37 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| PoE adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
