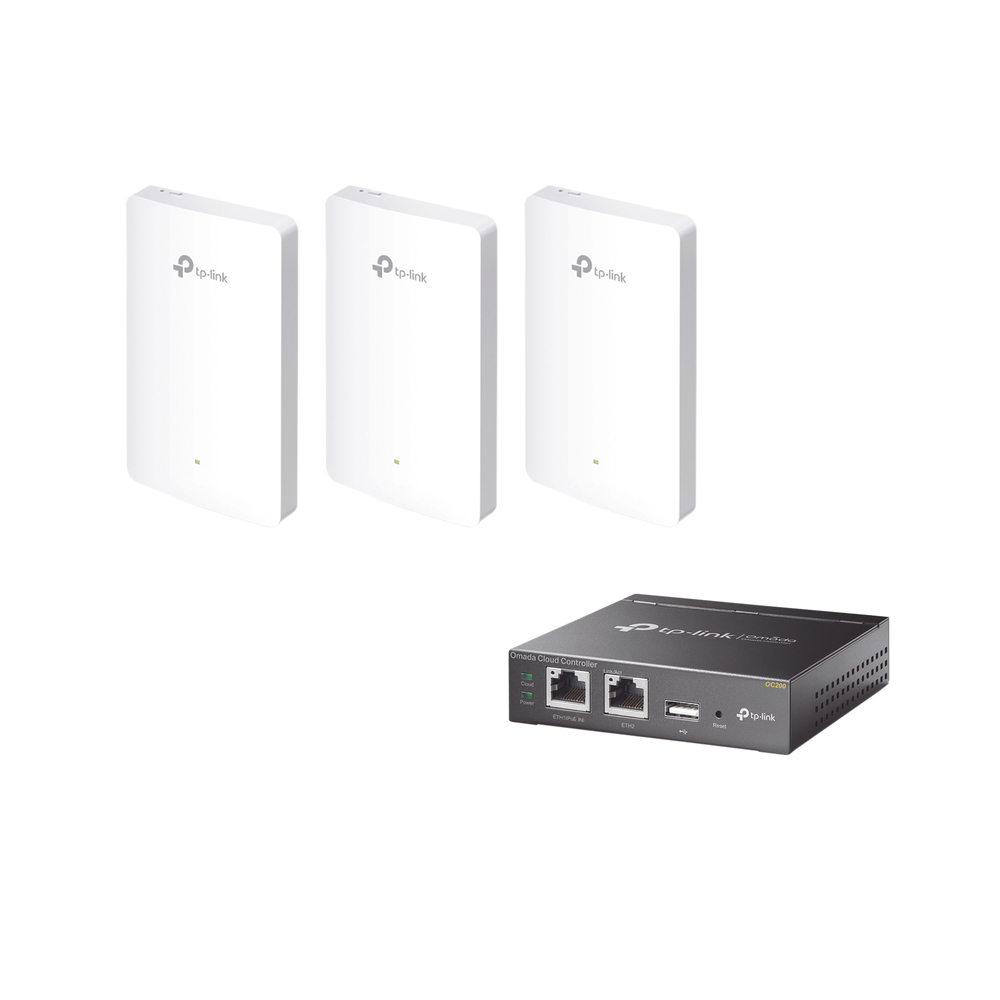

Omada EAP225-Wall + Omada OC200
Model Omada EAP225-Wall + Omada OC200Part no. EAP225-WALL-KIT3-OC200
40 specifications
- Speed1200 Mbit/s
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports3
- PlacementWall
- Antenna typeInternal
Overview
- Speed
- 1200 Mbit/s
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 3
- Placement
- Wall
- Antenna type
- Internal
- Brand
- TP-Link
- Category
- Wireless Access Point
- Model
- Omada EAP225-Wall + Omada OC200
- Part number
- EAP225-WALL-KIT3-OC200
- Also known as
- TP-Link Omada EAP225-Wall + Omada OC200 1200 Mbit/s White Power over Ethernet (PoE)
Specifications
40 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.4 - 2.4835 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ac |
| Automatic channel selection | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
| MAC address filtering | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 9 W |
| Power consumption (max) | 25.5 W |
Design
| Specification | Value |
|---|---|
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 4 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 86 mm |
| Depth | 19.7 mm |
| Height | 143 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 3 pc(s) |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 40% |
| Operating temperature (T-T) | 10 - 90 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
