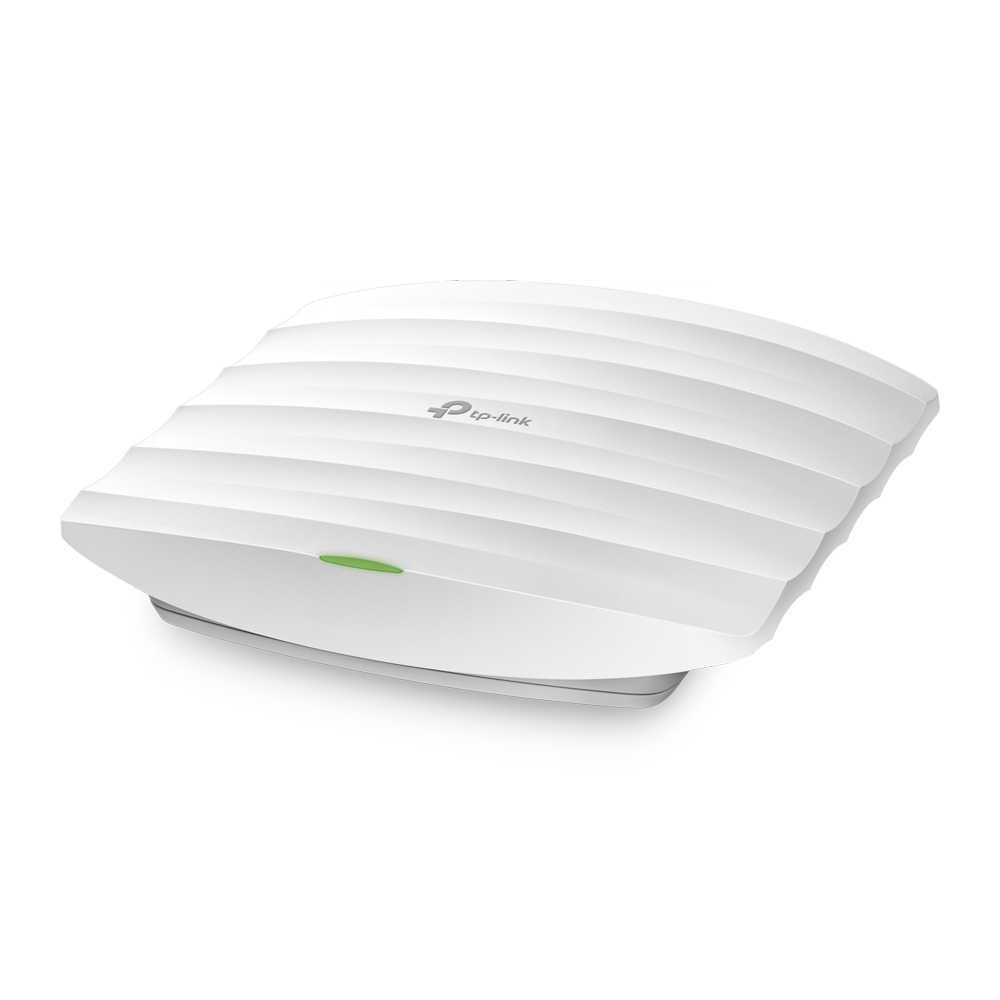

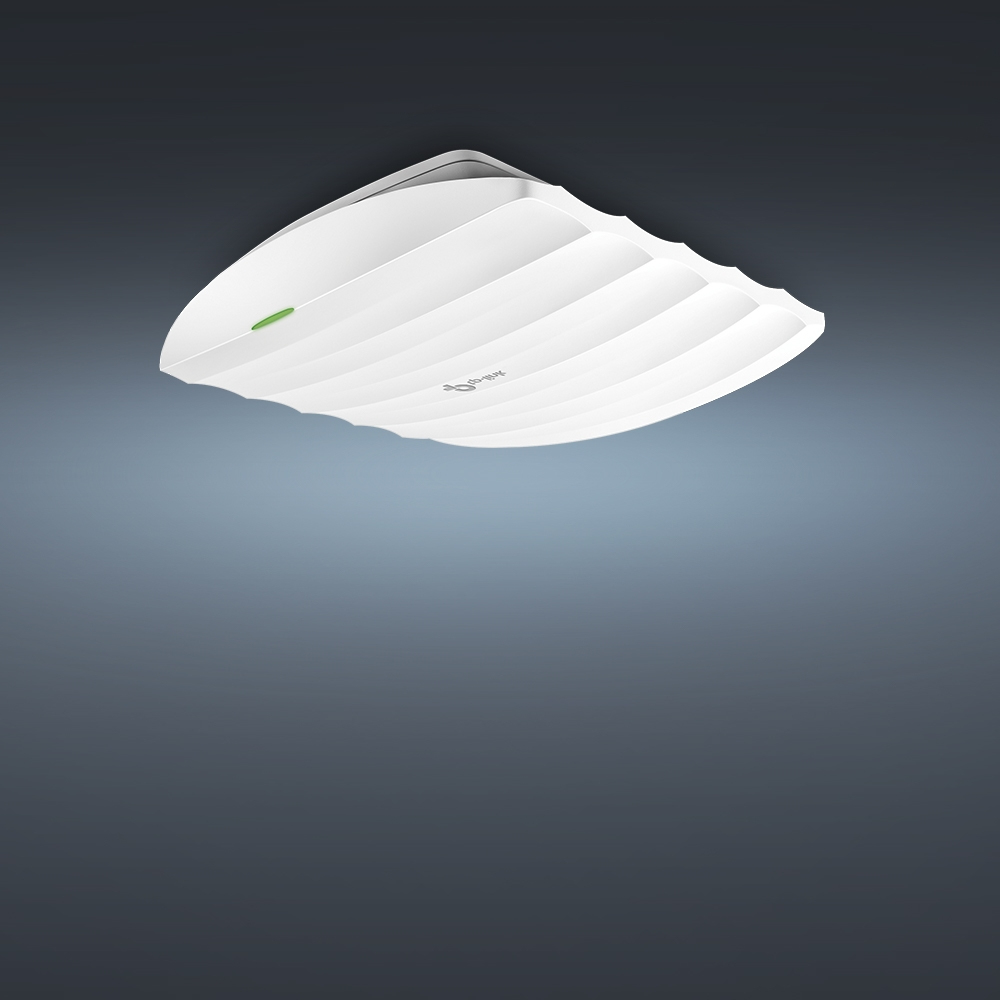

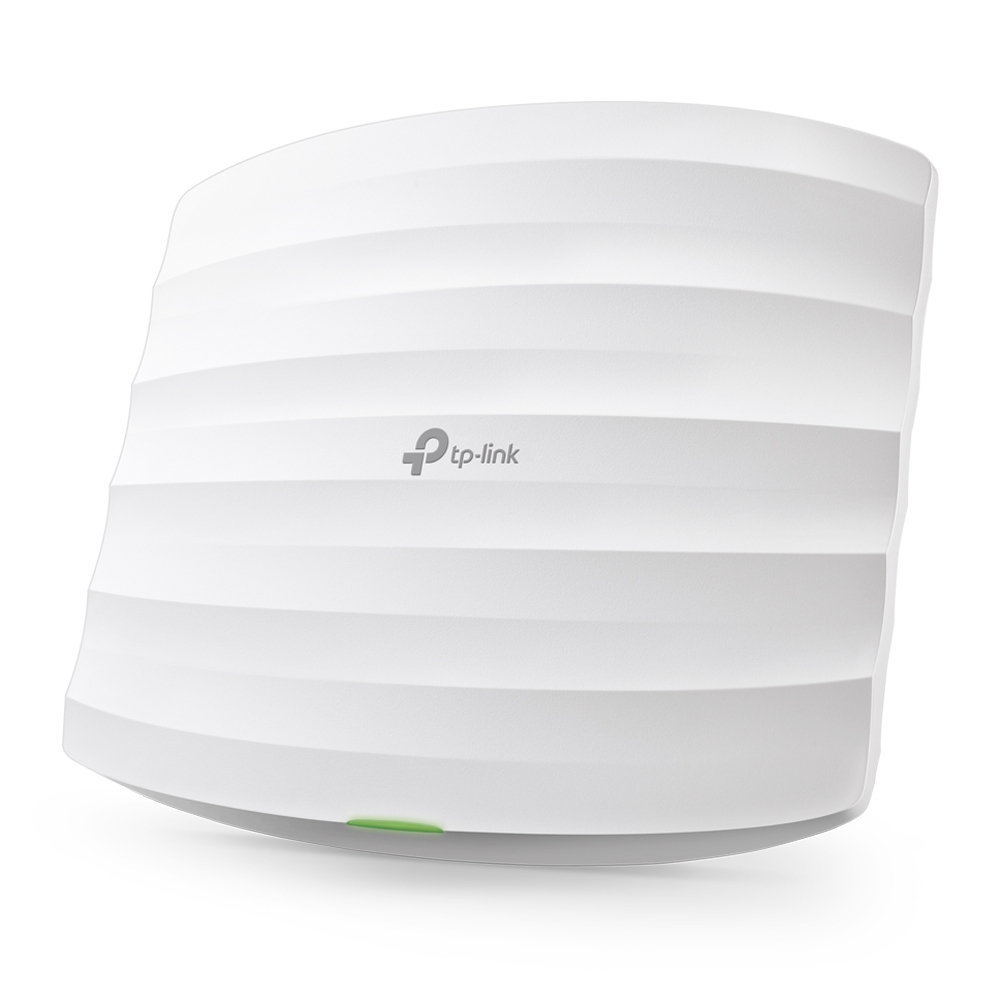

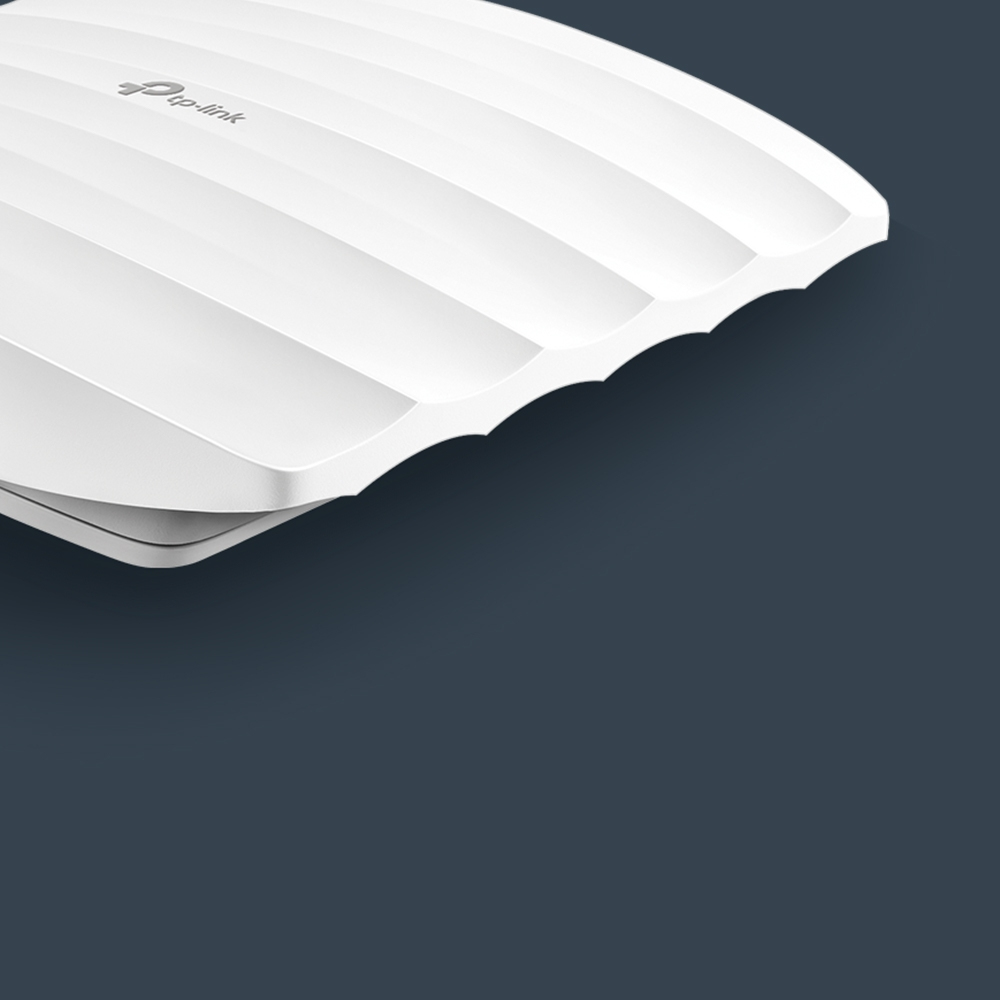

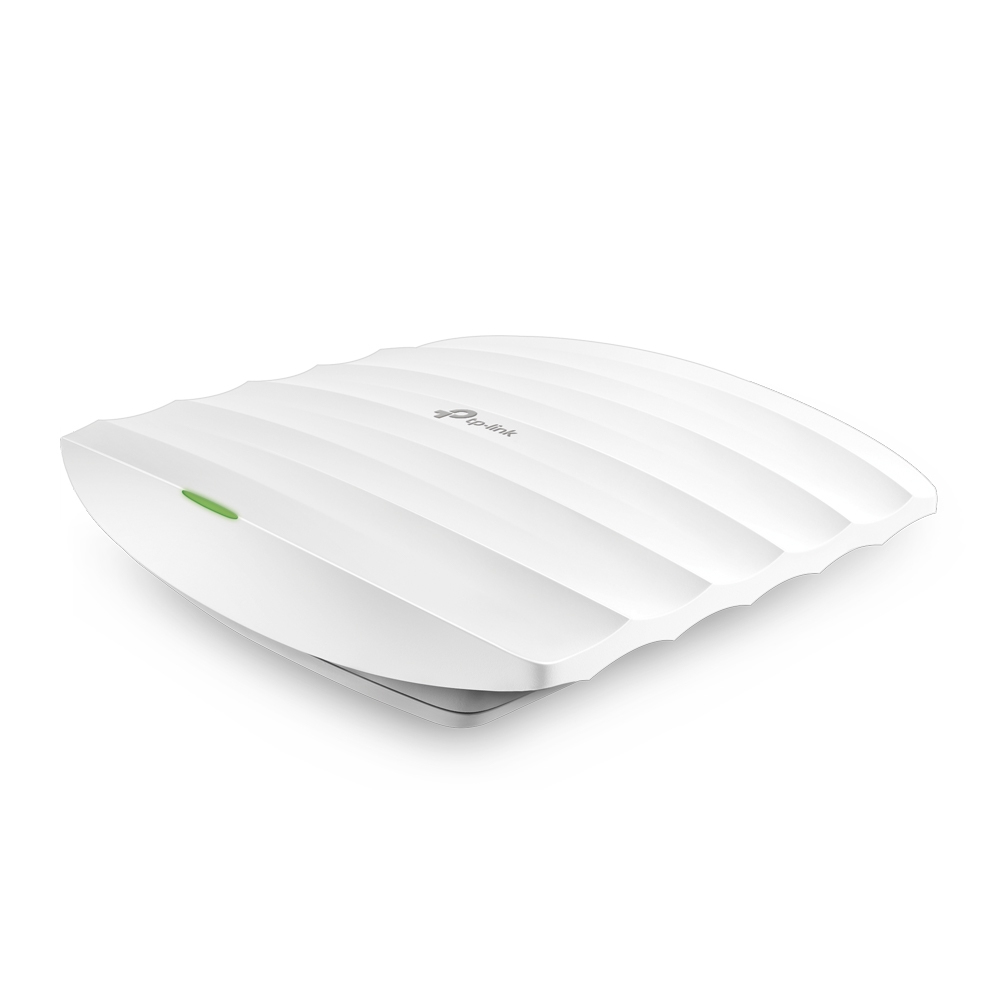

TP-Link Omada EAP110 V4 + Omada OC200: Full Specifications

Overview

Speed: 300 Mbit/s
Colour: White
2.4 GHz: Yes
Ethernet LAN (RJ-45) ports: 1
Placement: Ceiling, Wall
Antenna type: Internal

Brand: TP-Link
Category: Wireless Access Point

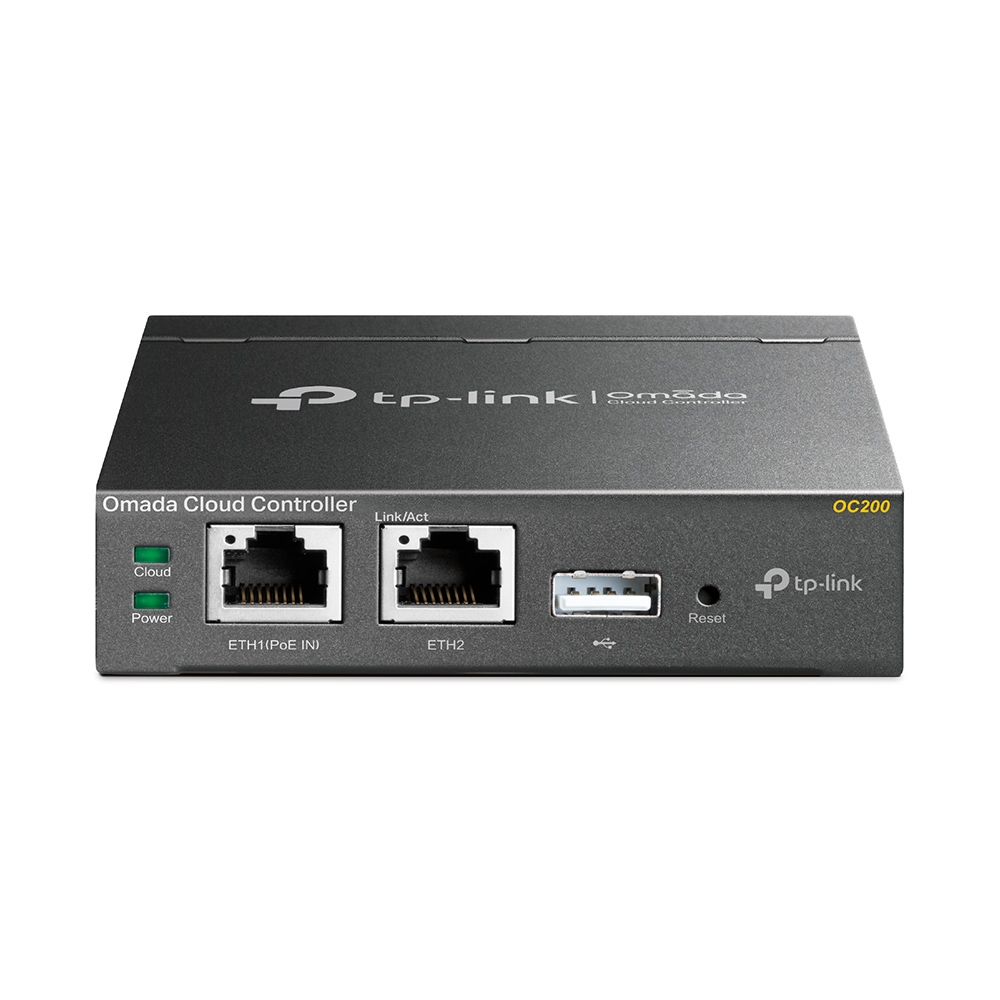

Model: Omada EAP110 V4 + Omada OC200

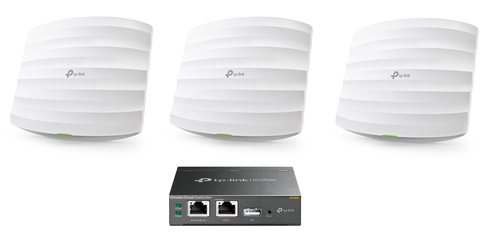

Part number: EAP110-KIT3-OC200
Also known as: TP-Link Omada EAP110 V4 + Omada OC200 300 Mbit/s White Power over Ethernet (PoE)

Specifications

47 specifications in 12 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	No
Maximum data transfer rate	300 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Rate limiting	Yes
Wireless isolation	Yes
Quality of Service (QoS) support	Yes
Transmitting power	21 dBmW
Receiver sensitivity	300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	8
Access Control List (ACL)	Yes

Management features

Specification	Value
Syslog	Yes

Ports & interfaces

Specification	Value

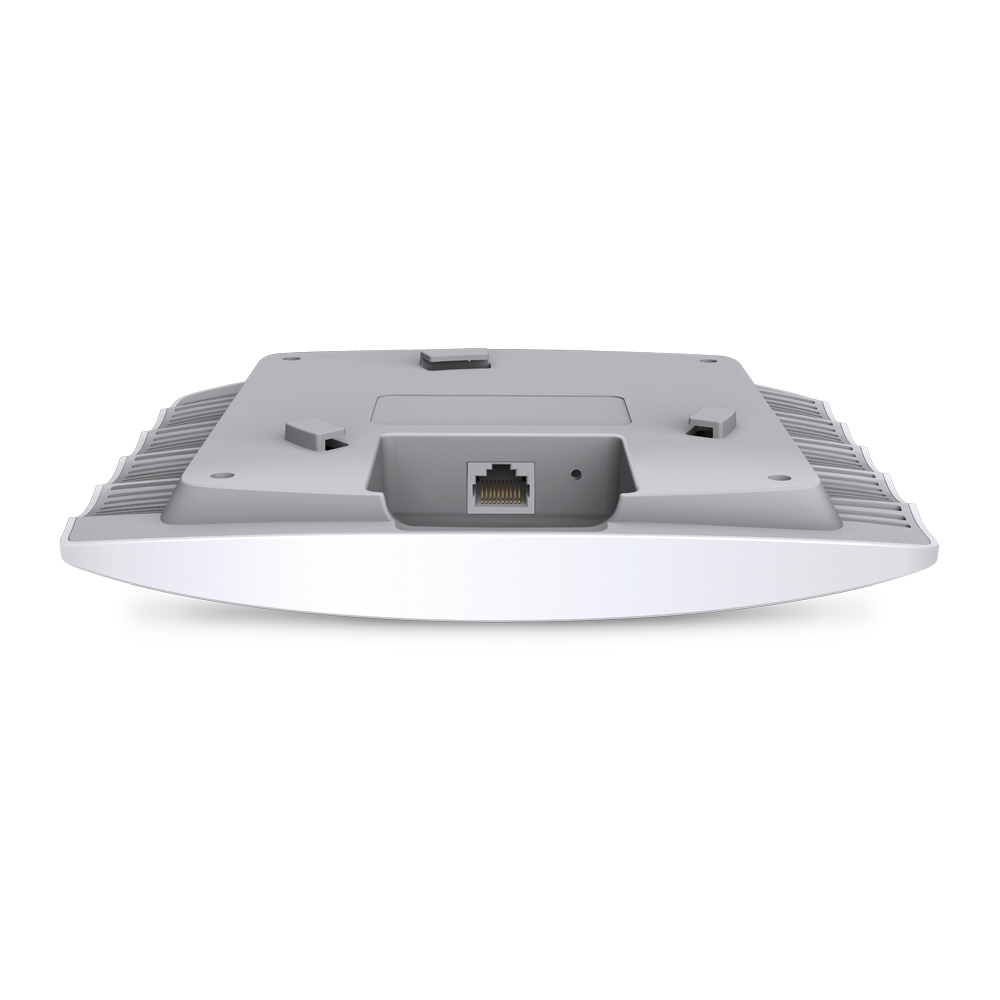

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0

Power

Specification	Value
Power over Ethernet (PoE)	Yes
AC input voltage	24 V
Power consumption (typical)	2.8 W

Design

Specification	Value
Placement	Ceiling, Wall
Product colour	White
Reset button	Yes
LED indicators	Yes

Antenna

Specification	Value
Antenna type	Internal
Antenna direction type	Omni-directional
Antennas quantity	2
Antenna gain level (max)	4 dBi

Certificates

Specification	Value
Certification	CE, FCC, RoHS

Weight & dimensions

Specification	Value
Width	189.4 mm
Depth	172.3 mm
Height	29.5 mm

Packaging data

Specification	Value
Package type	Box

Packaging content

Specification	Value
Quantity per pack	3 pc(s)
PoE adapter included	Yes
Cables included	AC
Mounting kit	Yes
Quick start guide	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
