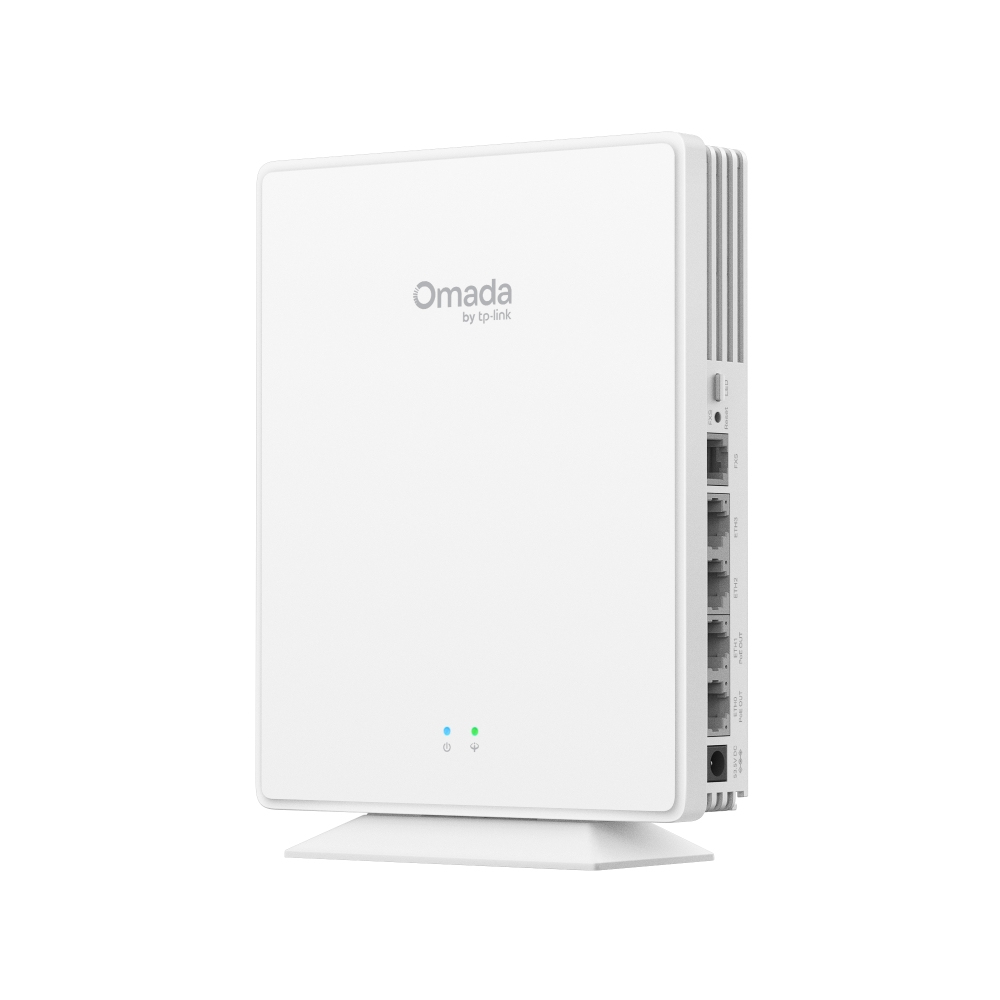

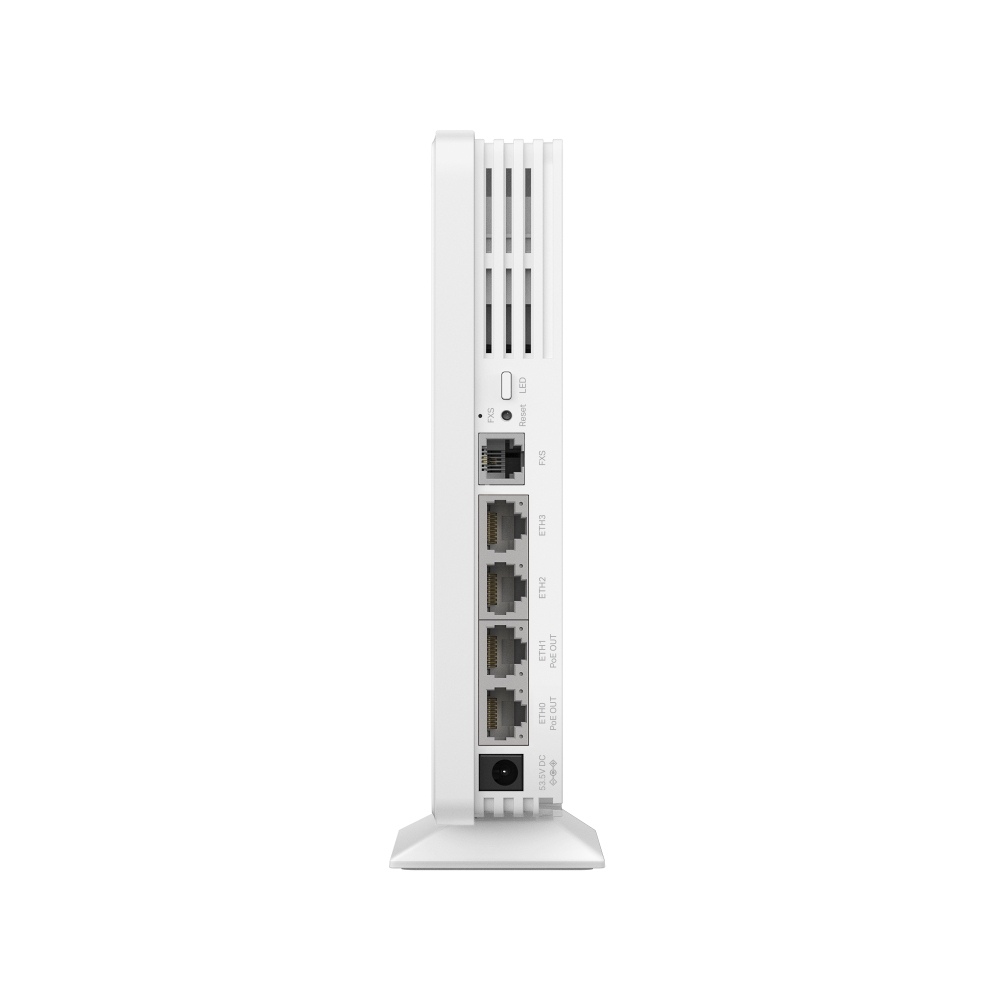

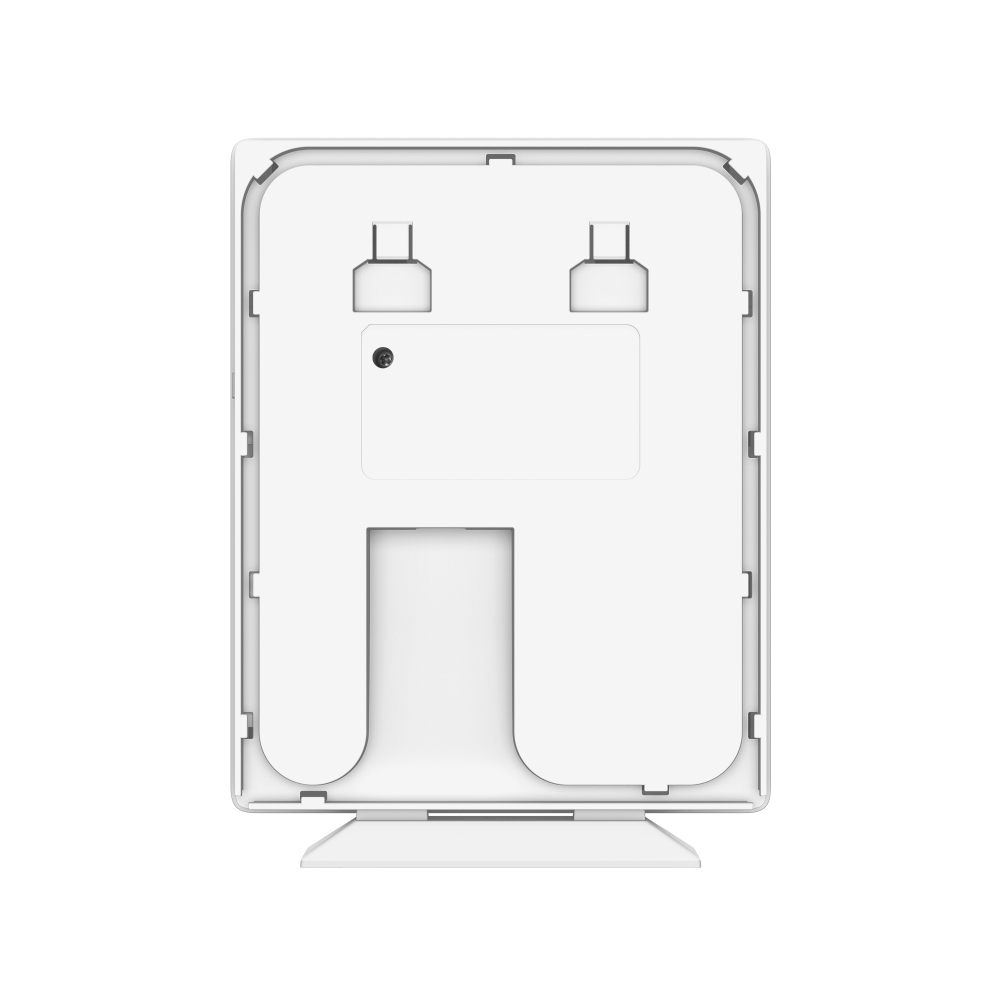

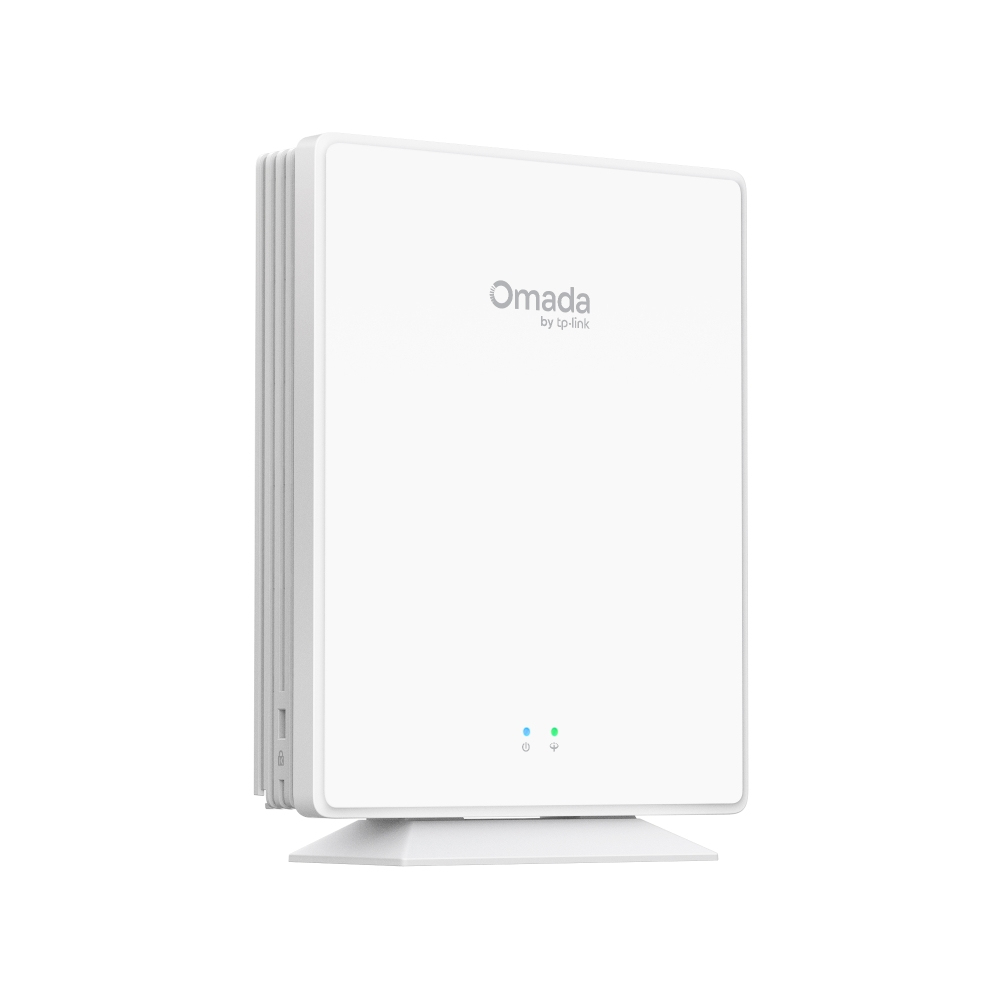

TP-Link Omada AX3000

Overview

Speed: 3000 Mbit/s
Weight: 511 g
Colour: White
2.4 GHz: Yes
Number of SSID supported: 16
Ethernet LAN (RJ-45) ports: 4

Brand: TP-Link
Category: Wireless Access Point
Model: Omada AX3000
Part number: EAP650GP-DESKTOP
EAN / UPC: 840460602518, 1210002605960, 1210002605977
Also known as: TP-Link Omada AX3000 3000 Mbit/s White Power over Ethernet (PoE)

Specifications

43 specifications in 12 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	3000 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	2402 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax
Automatic channel scanning	Yes
Automatic channel selection	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Virtual LAN features	SSID-based VLAN assignment
Rate limiting	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Transmitting power (CE)	<20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz band1/2, EIRP); <25 dBm (5 GHz band3)
Transmitting power (FCC)	<26 dBm (2.4 GHz); <27 dBm (5 GHz)

Security

Specification	Value
Security algorithms	HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3
Number of SSID supported	16

Management features

Specification	Value
Web-based management	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	0
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes

Design

Specification	Value
Placement	Desk
Product colour	White
Reset button	Yes
LED indicators	Yes

Antenna

Specification	Value
Antenna type	Internal

Performance

Specification	Value
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Certificates

Specification	Value
Certification	CE, FCC, RoHS

Weight & dimensions

Specification	Value
Width	175 mm
Depth	140 mm
Height	33 mm
Weight	511 g

Packaging content

Specification	Value
Quantity per pack	5 pc(s)
Mounting kit	Yes
Quick start guide	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	0 - 40%
Operating temperature (T-T)	10 - 90 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
