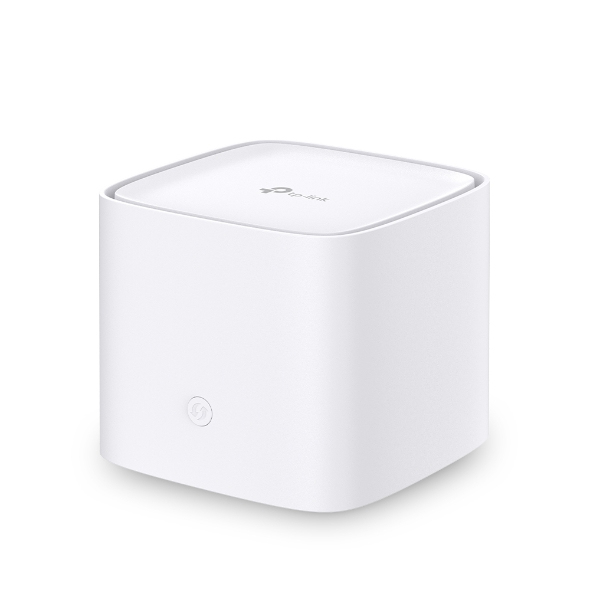

TP-Link HX220 1800 Mbit/s White: Full Specifications

Overview

Speed: 1800 Mbit/s
Colour: White
2.4 GHz: Yes
Security algorithms: WPA, WPA2, WPA2-PSK, WPA3, WPS
Supported network protocols: IPv4, IPv6
Ethernet LAN (RJ-45) ports: 3

Brand: TP-Link
Category: Wireless Access Point
Model: HX220
Part number: HX220(2-PACK)
EAN / UPC: 4897098684559
Also known as: TP-Link HX220 1800 Mbit/s White

Specifications

40 specifications in 13 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1800 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1201 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Wi-Fi Multimedia (WMM)/(WME)	Yes
Quality of Service (QoS) support	Yes
Transmitting power (CE)	<20 dBm (2.4GHz), <23 dBm (5GHz)
Transmitting power (FCC)	<30 dBm(2.4GHz), <30 dBm(5GHz)

Security

Specification	Value
Security algorithms	WPA, WPA2, WPA2-PSK, WPA3, WPS
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	6

Protocols

Specification	Value
Supported network protocols	IPv4, IPv6

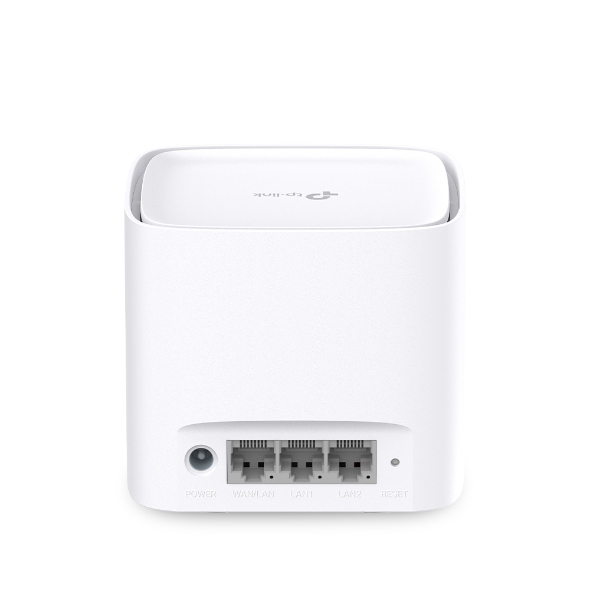

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	3
USB 2.0 ports quantity	0
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes

Power

Specification	Value
Output voltage	12 V
Output current	1 A

Design

Specification	Value
Placement	Table
Product colour	White
Reset button	Yes
WPS push button	Yes

Antenna

Specification	Value
Antenna type	Internal

Performance

Specification	Value
Compatible operating systems	Android 4.4+ iOS 9.0+

Certificates

Specification	Value
Compliance certificates	CE

Weight & dimensions

Specification	Value
Width	100 mm
Depth	100 mm
Height	89.5 mm

Packaging content

Specification	Value
Quantity per pack	2 pc(s)
AC adapter included	Yes
Cables included	LAN (RJ-45)
Quick start guide	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	5 - 90%

Sustainability

Specification	Value
Sustainability compliance	Yes
