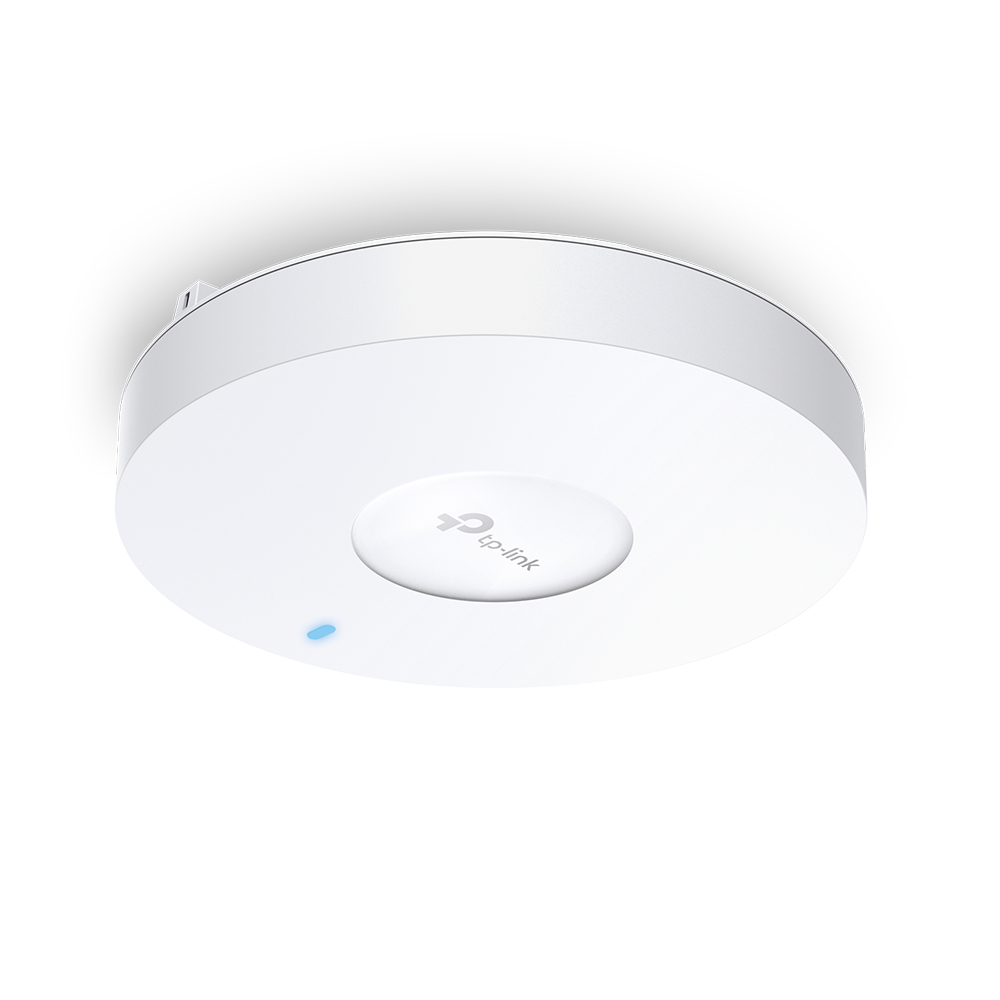

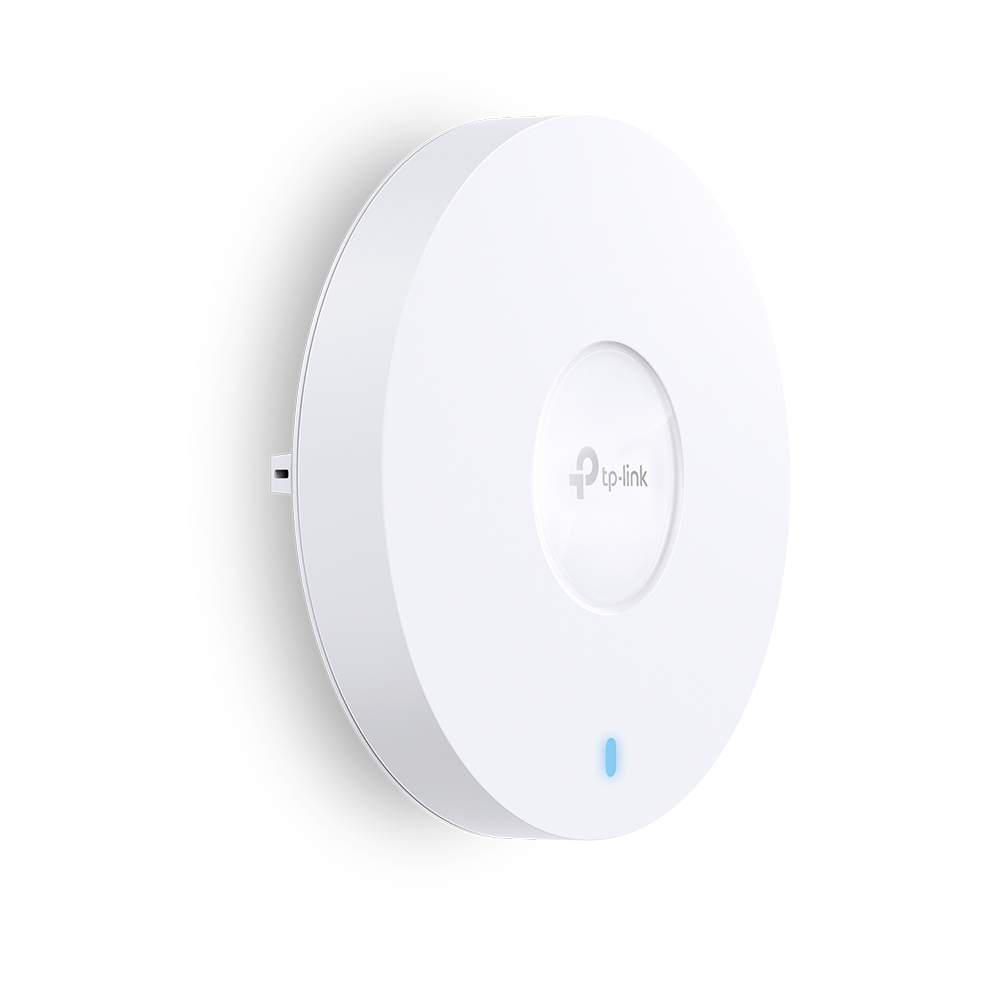

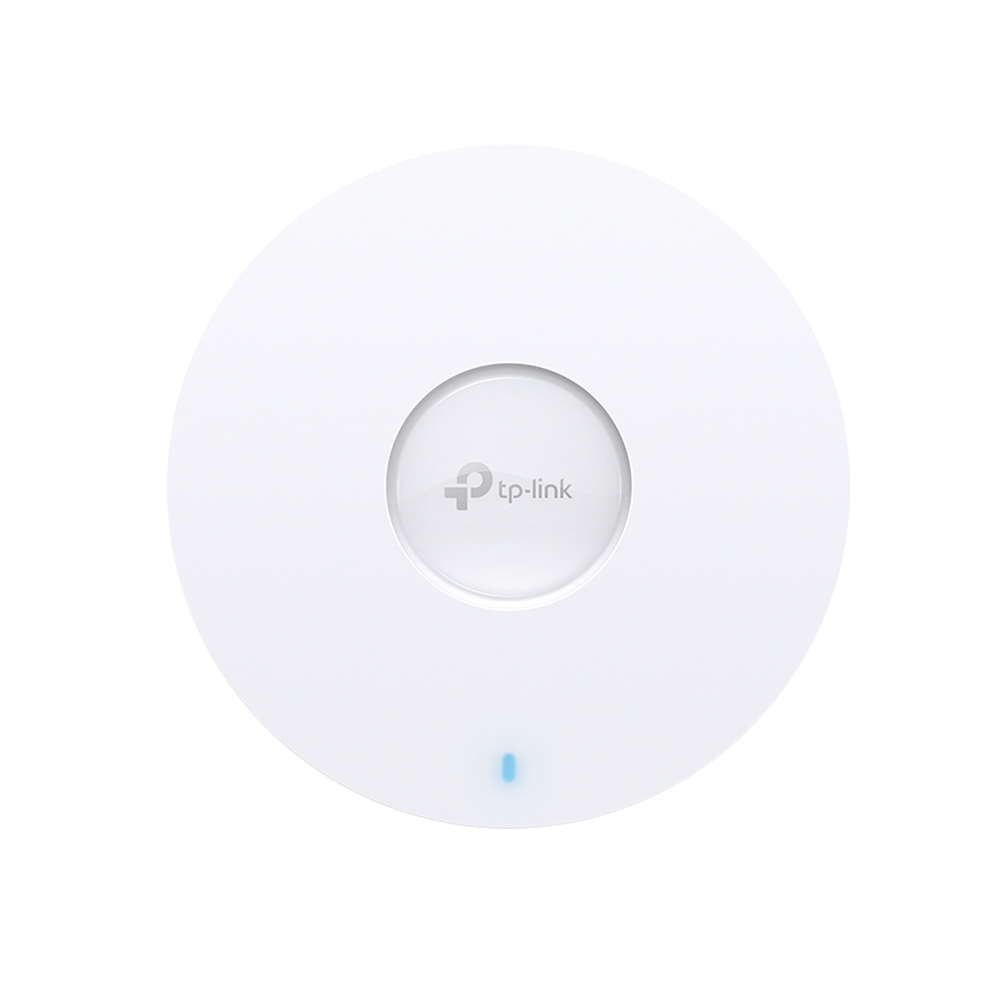

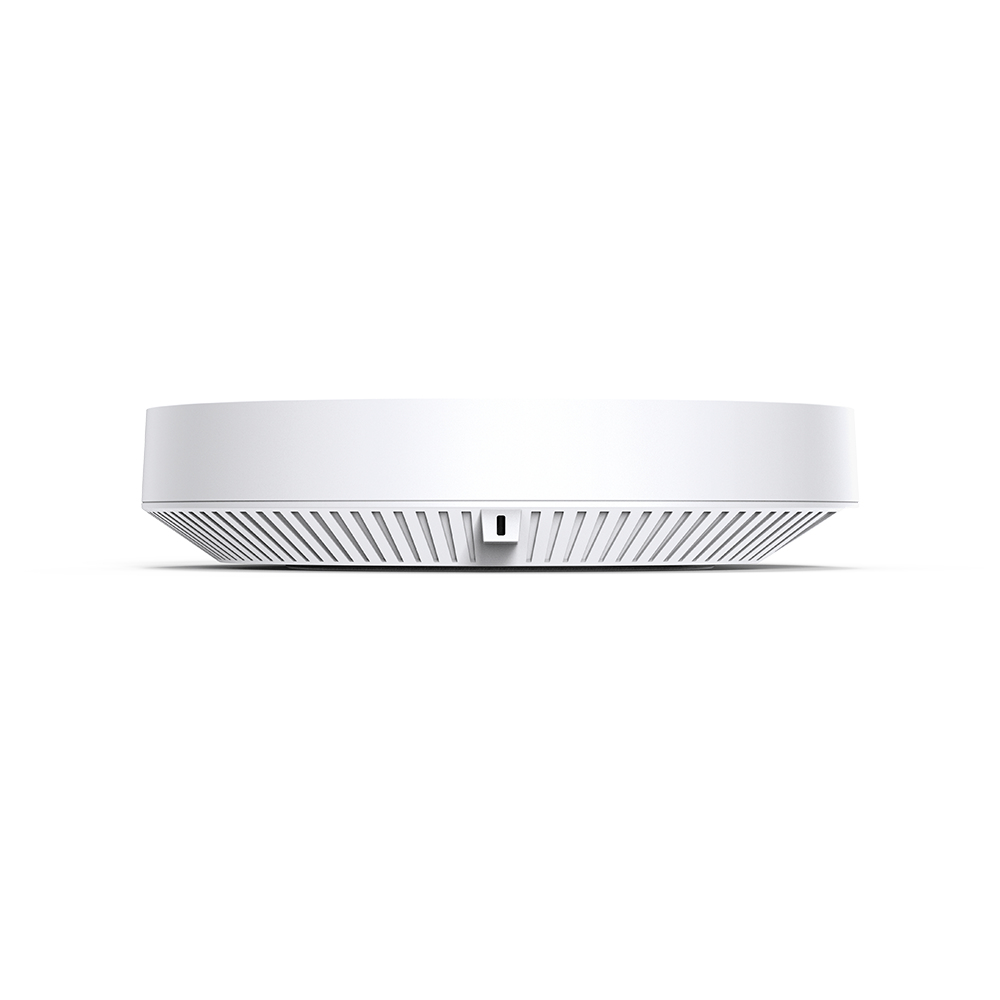

TP-Link EAP690E HD: Full Specifications

Overview

Speed: 11000 Mbit/s
Colour: White
2.4 GHz: Yes
Service Set Identifier (SSID) features: Multiple SSIDs
Ethernet LAN (RJ-45) ports: 1
Placement: Pole, Wall

Brand: TP-Link
Category: Wireless Access Point
Model: EAP690E HD
Part number: EAP690E HD
EAN / UPC: 840030708350, 4897098688359, 4897098688366
Also known as: TP-Link Omada AXE11000 Ceiling Mount Quad-Band WiFi 6E Access Point

Specifications

52 specifications in 12 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
6 GHz	Yes
Maximum data transfer rate	11000 Mbit/s
Maximum data transfer rate (2.4 GHz)	1148 Mbit/s
Maximum data transfer rate (5 GHz)	2402 Mbit/s
Maximum data transfer rate (6 GHz)	4804 Mbit/s
Ethernet LAN data rates	10000 Mbit/s
Frequency band	2.4 - 6 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Automatic channel scanning	Yes
Automatic channel selection	Yes
MIMO	Yes
MIMO type	Multi User MIMO
VLAN support	Yes
Rate limiting	Yes
Flow control support	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
BeamForming	Yes

Security

Specification	Value
Security algorithms	WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	32
Remote Authentication Dial-In User Service (RADIUS)	Yes
Access Control List (ACL)	Yes

Management features

Specification	Value
Web-based management	Yes
Firmware upgradeable	Yes

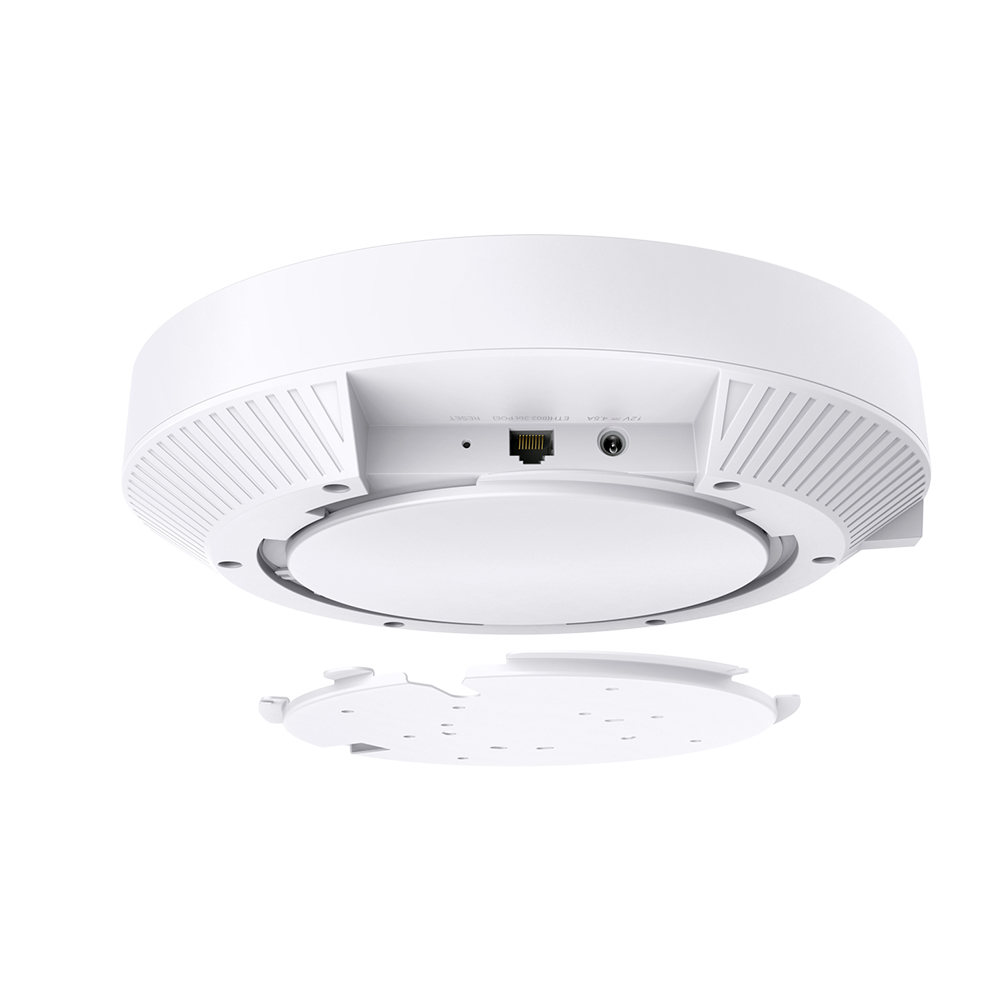

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Output voltage	12 V

Design

Specification	Value
Placement	Pole, Wall
Product colour	White
Reset button	Yes
LED indicators	Yes

Antenna

Specification	Value
Antenna type	Internal

Certificates

Specification	Value
Certification	CE, FCC, RoHS, IC

Weight & dimensions

Specification	Value
Width	280 mm
Depth	280 mm
Height	59.1 mm

Packaging data

Specification	Value
Package width	325 mm
Package depth	393 mm
Package height	148 mm
Package weight	3.25 kg

Packaging content

Specification	Value
Quantity per pack	1 pc(s)
Mounting kit	Yes
Quick start guide	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
