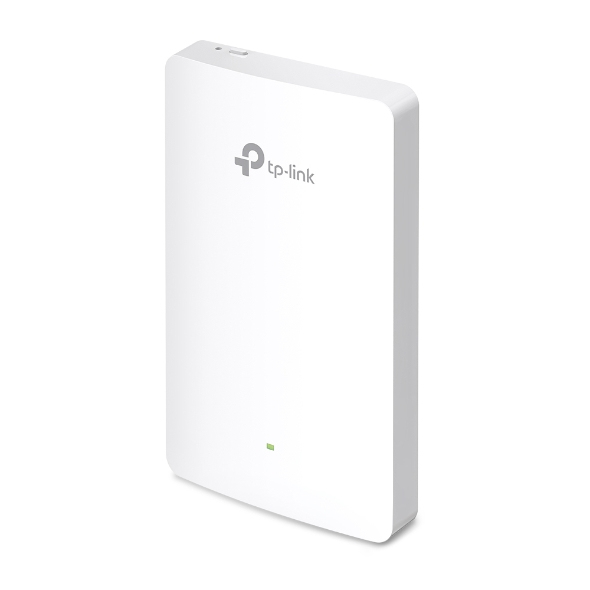

Omada AX3000 Wall Plate WiFi 6 Access Point
Model EAP615-WALLPart no. EAP615-WALL(5-PACK)EAN 8885020622898
53 specifications
- Speed1774 Mbit/s
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA, WPA2, WPA3
- Ethernet LAN (RJ-45) ports4
- PlacementWall
Overview
- Speed
- 1774 Mbit/s
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA, WPA2, WPA3
- Ethernet LAN (RJ-45) ports
- 4
- Placement
- Wall
- Brand
- TP-Link
- Category
- Wireless Access Point
- Model
- EAP615-WALL
- Part numbers
- EAP615-WALL(5-PACK), EAP615-WALL
- EAN / UPC
- 8885020622898, 840030703607, 4897098682128, 4897098683606 +1 more
- Also known as
- TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point
Specifications
53 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1774 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Automatic channel scanning | Yes |
| Automatic channel selection | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| VLAN support | Yes |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Transmitting power (CE) | 20 dBm |
| Transmitting power (FCC) | 21 dBm |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Access Control List (ACL) | Yes |
Management features
| Specification | Value |
|---|---|
| Syslog | Yes |
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

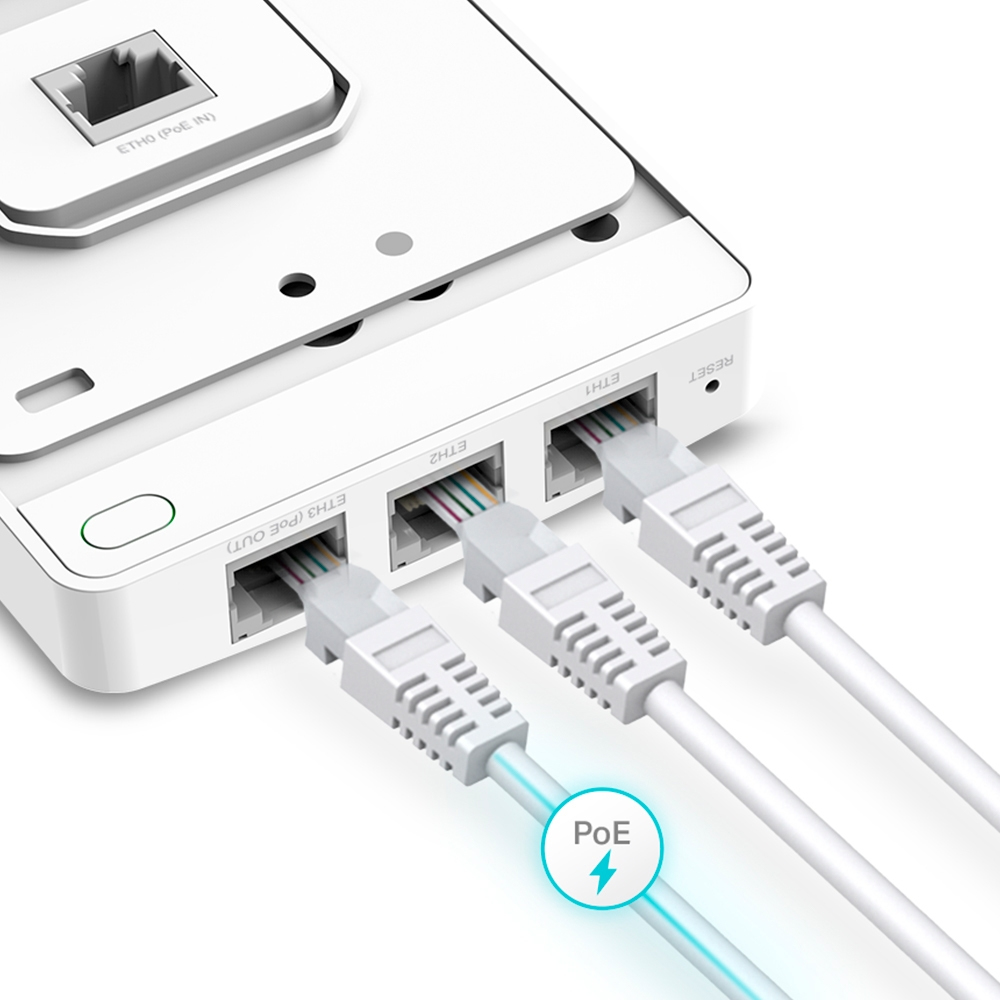

| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Design
| Specification | Value |
|---|---|

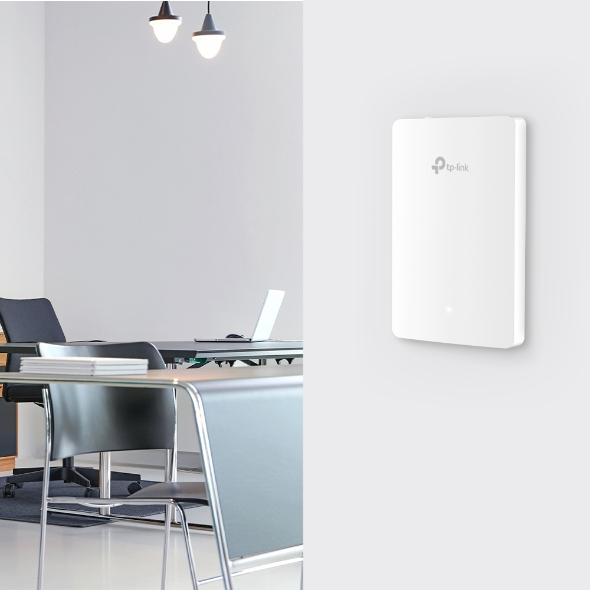

| Placement | Wall |
| Product colour | White |
| On/off switch | Yes |
| Reset button | Yes |
| LED indicators | Power |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna gain level (max) | 4 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 143 mm |
| Depth | 86 mm |

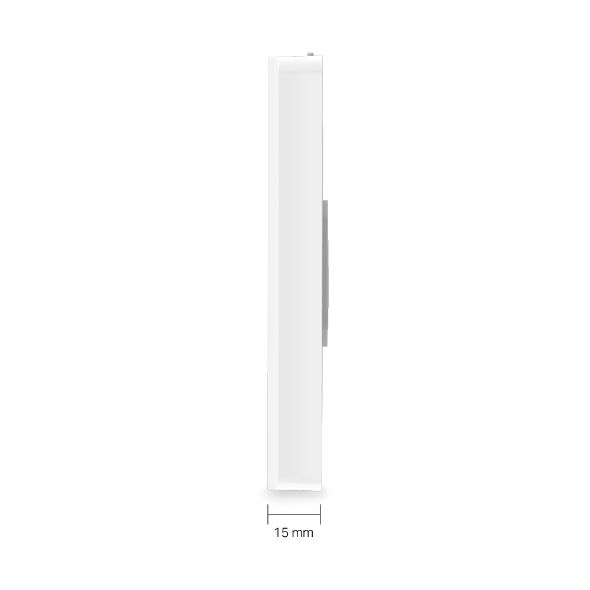

| Height | 20 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 385 mm |
| Package depth | 495 mm |
| Package height | 210 mm |
| Package weight | 330 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
