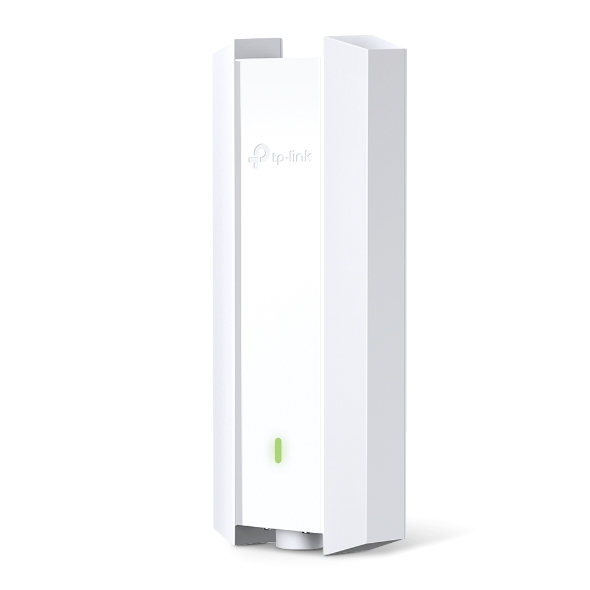

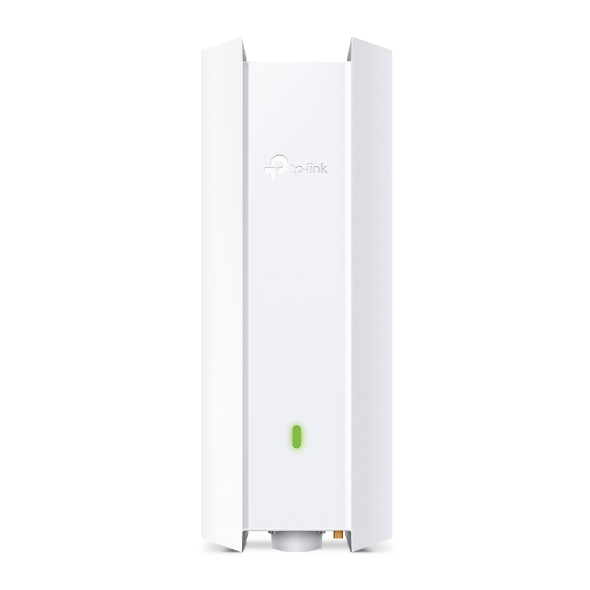

Omada EAP610-Outdoor 1800 Mbit/s White Power over Ethernet (PoE)

Model EAP610-OutdoorPart no. EAP610-OUTDOOREAN 6935364010249

54 specifications

Speed1800 Mbit/s
ColourWhite
2.4 GHzYes
Security algorithmsWEP, WPA, WPA2, WPA3
Management protocolsSNMP v1/v2c
Ethernet LAN (RJ-45) ports1

See all specifications

Overview

Speed: 1800 Mbit/s
Colour: White
2.4 GHz: Yes
Security algorithms: WEP, WPA, WPA2, WPA3
Management protocols: SNMP v1/v2c
Ethernet LAN (RJ-45) ports: 1

Brand: TP-Link
Category: Wireless Access Point
Model: EAP610-Outdoor
Part number: EAP610-OUTDOOR
EAN / UPC: 6935364010249, 840460605281, 845973073145, 1210002618564 +2 more
Also known as: TP-Link Omada EAP610-Outdoor 1800 Mbit/s White Power over Ethernet (PoE)

Specifications

54 specifications in 13 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1800 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1201 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Number of users	250 user(s)
Automatic channel scanning	Yes
Automatic channel selection	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Rate limiting	Yes
Wireless isolation	Yes
Band steering	Yes
Quality of Service (QoS) support	Yes
BeamForming	Yes

Security

Specification	Value
Security algorithms	WEP, WPA, WPA2, WPA3
MAC address filtering	Yes
Number of SSID supported	16
Remote Authentication Dial-In User Service (RADIUS)	Yes

Protocols

Specification	Value
Management protocols	SNMP v1/v2c

Management features

Specification	Value
Web-based management	Yes
Syslog	Yes
Management platform	Omada

Ports & interfaces

Specification	Value

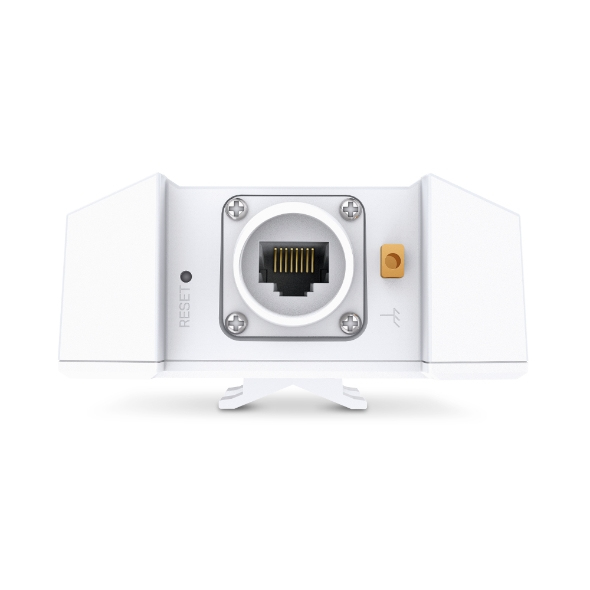

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0

Power

Specification	Value
Power over Ethernet (PoE)	Yes

Design

Specification	Value

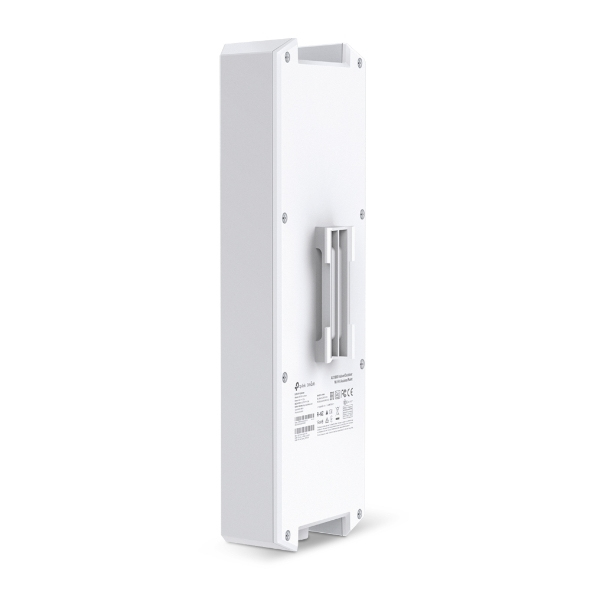

Placement	Pole, Wall
Product colour	White
International Protection (IP) code	IP67
LED indicators	Yes

Antenna

Specification	Value
Antenna type	Internal
Antenna features	Integrated antenna
Antenna gain level (max)	5 dBi

Weight & dimensions

Specification	Value
Width	280.4 mm
Depth	106.5 mm
Height	56.9 mm

Packaging data

Specification	Value
Package width	241 mm
Package depth	325 mm
Package height	67 mm
Package weight	1.29 kg

Packaging content

Specification	Value
Quantity per pack	1 pc(s)
PoE adapter included	Yes
Mounting kit	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
