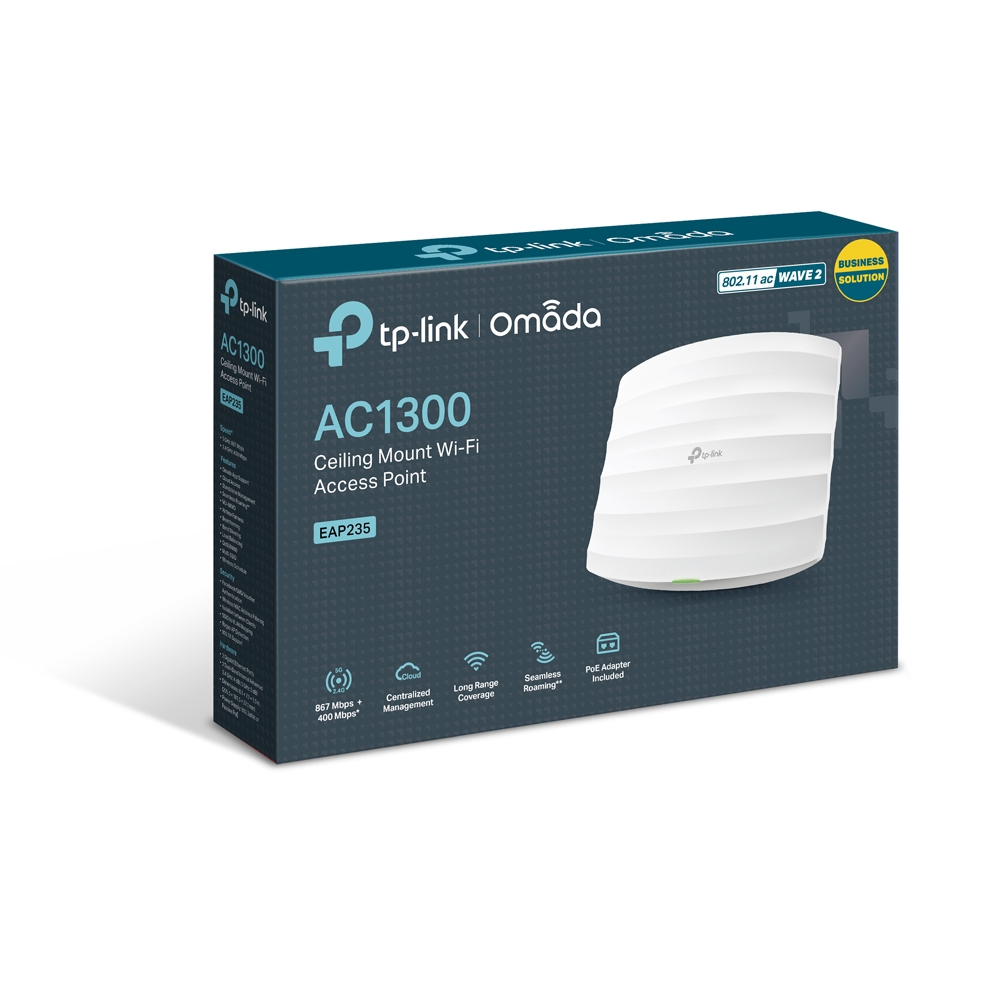

EAP235 wireless access point 1267 Mbit/s White Power over Ethernet (PoE)
Model EAP235EAN 6935364083465
50 specifications
- Speed1267 Mbit/s
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports2
- PlacementCeiling
- Antenna typeInternal
Overview
- Speed
- 1267 Mbit/s
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Placement
- Ceiling
- Antenna type
- Internal
- Brand
- TP-Link
- Category
- Wireless Access Point
- Model
- EAP235
- Part number
- EAP235
- EAN / UPC
- 6935364083465
- Also known as
- TP-Link EAP235 wireless access point 1267 Mbit/s White Power over Ethernet (PoE)
Specifications
50 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1267 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 400 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WEP, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Syslog | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power consumption (max) | 10.87 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5 dBi |
Performance
| Specification | Value |
|---|---|
| Compatible operating systems | Windows XP/Vista/7/8/10/11, Linux |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 205.5 mm |
| Depth | 181.5 mm |
| Height | 37.1 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| PoE adapter included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
