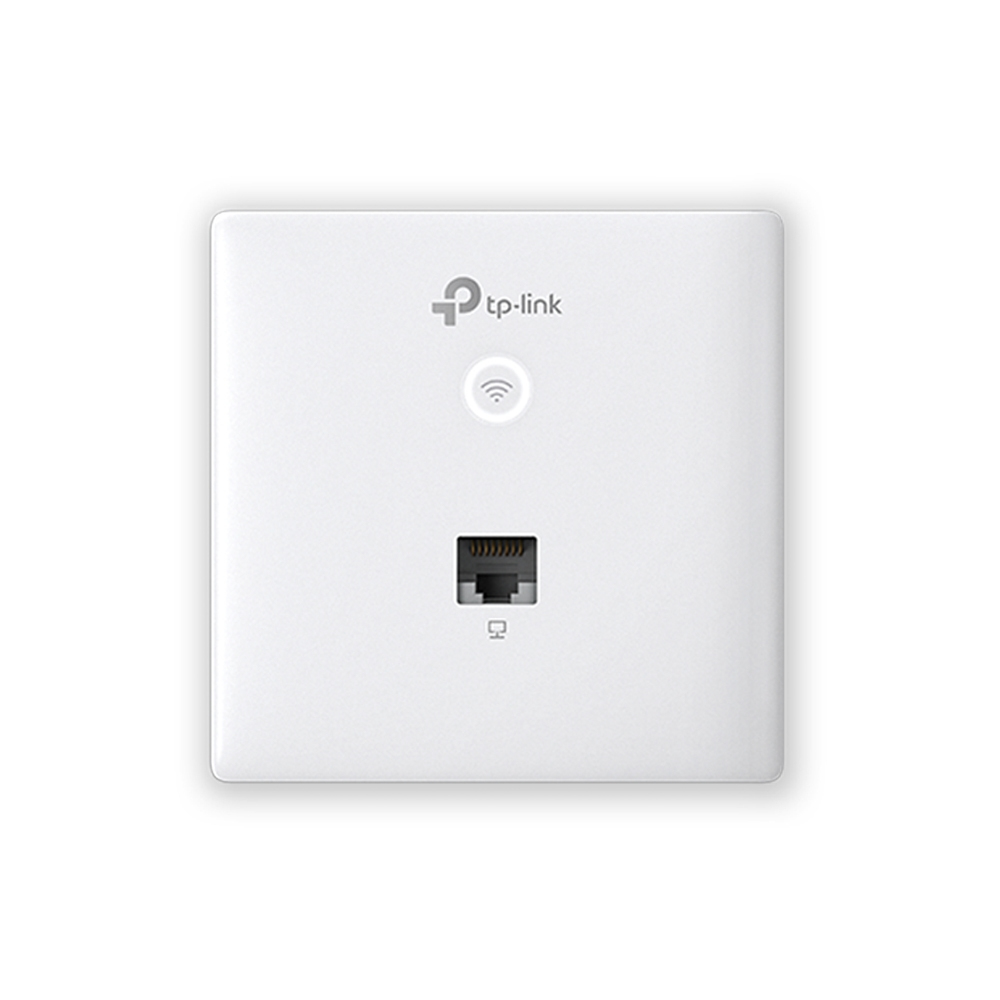

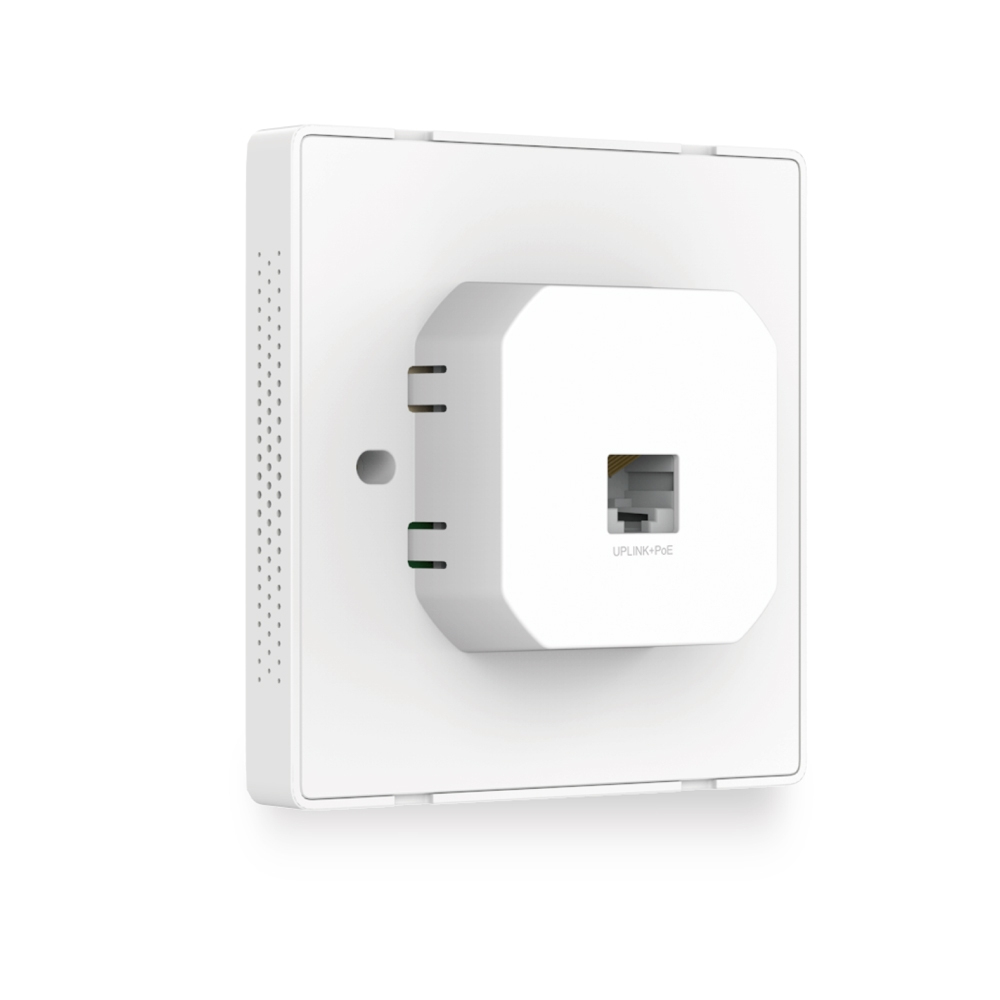

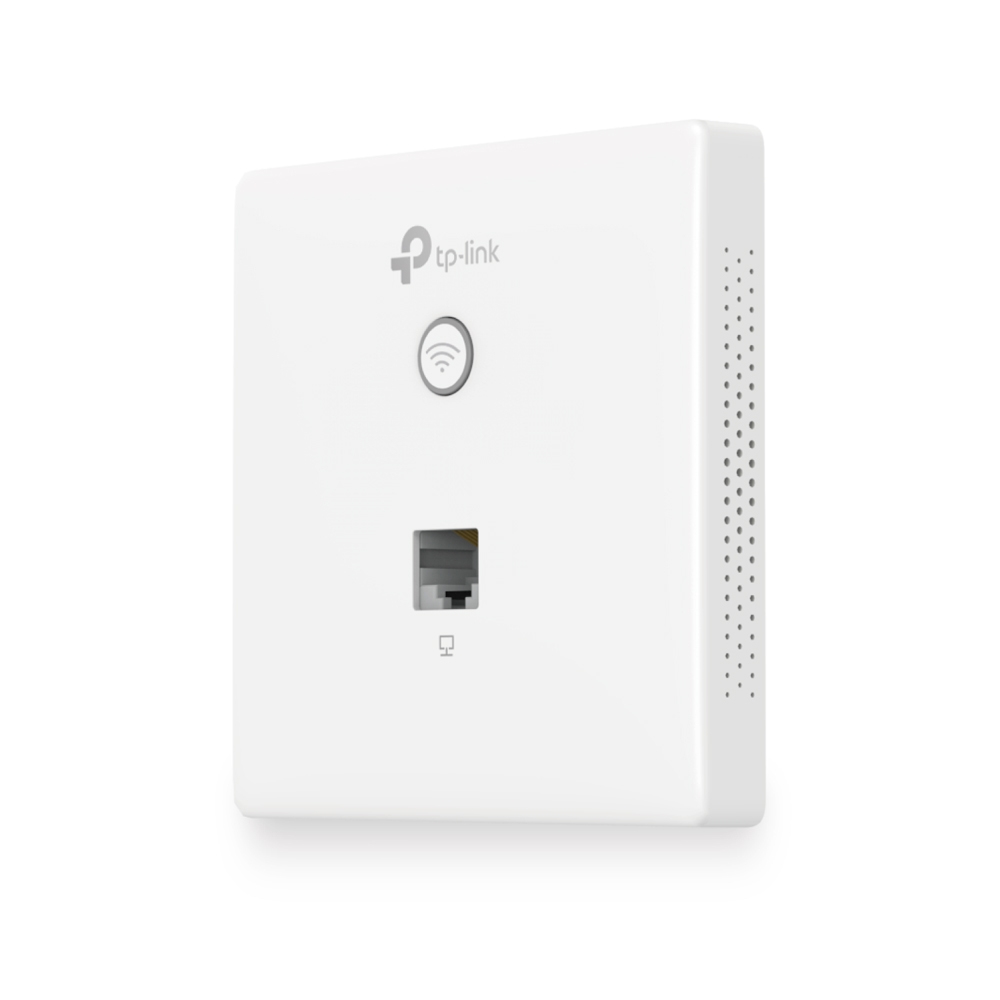

Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
Model EAP230-WallPart no. EAP230-WALLEAN 1210002615679
60 specifications
- Speed1167 Mbit/s
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
- PlacementWall
- Antenna typeInternal
Overview
- Speed
- 1167 Mbit/s
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Placement
- Wall
- Antenna type
- Internal
- Brand
- TP-Link
- Category
- Wireless Access Point
- Model
- EAP230-Wall
- Part number
- EAP230-WALL
- EAN / UPC
- 1210002615679, 1210002615686, 6935364089481, 6935364089498
- Also known as
- TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
Specifications
60 specifications in 15 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1167 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
| Automatic channel scanning | Yes |
| Automatic channel selection | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, VLAN mapping |
| Rate limiting | Yes |
| Band steering | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Transmitting power (CE) | 20 - 23 dBm |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
| Access Control List (ACL) | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Syslog | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 9 W |
| Power consumption (max) | 25.5 W |
Design
| Specification | Value |
|---|---|
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Operation |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 3.6 dBi |
Performance
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 86.8 mm |
| Depth | 86.8 mm |
| Height | 30.2 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 118 mm |
| Package depth | 130 mm |
| Package height | 47 mm |
| Package weight | 210 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Mounting kit | Yes |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
